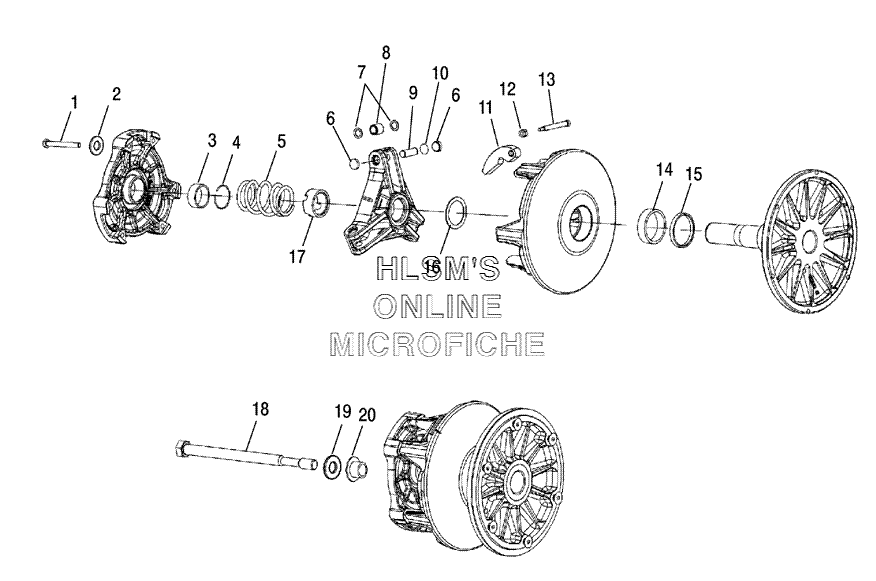

CLUTCH - DRIVE для Polaris FST Switchback (S06PS7FS) - 2006 года выпуска
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
33576516 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING, COVERRING, RETAINING, COVER
-
57043121 SPRING DRIVE CLUTCH (100/340)SPRING DRIVE CLUTCH (100/340)
-
65430445 BUTTON, GUIDE (.245'')BUTTON, GUIDE (.245'')
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSYROLLER AND BUSHING ASSY
-
95133079 PIN ROLLER, 1''PIN ROLLER, 1''
-
102200387 SHIM KIT, DRIVE CLUTCHSHIM KIT, DRIVE CLUTCH
-
111322597 WEIGHT/BUSHING ASSYWEIGHT/BUSHING ASSY
-
127541906 NUT FLEXLOCNUT FLEXLOC
-
137515105 PIN, WEIGHT, HARDENEDPIN, WEIGHT, HARDENED
-
143576502 BEARING, SLEEVEBEARING, SLEEVE
-
155010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
165210754 SPACER (.050)SPACER (.050)
-
165210753 SPACER (.032)SPACER (.032)
-
165242981 SPACER (.025)SPACER (.025)
-
165210752 SPACER (.020)SPACER (.020)
-
165134018 SPACER (.130)SPACER (.130)
-
175020425 NUT, JAMNUT, JAM
-
187518412 SCREW, HEXAGONSCREW, HEXAGON
-
197556003 WASHERWASHER
-
205131872 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
-1322565 DRIVE CLUTCH ASSY, BASIC, 225 (WHITE/BLACK) (LESS 5, 11) (W/ELECTRIC START)DRIVE CLUTCH ASSY, BASIC, 225 (WHITE/BLACK) (LESS 5, 11) (W/ELECTRIC START)
