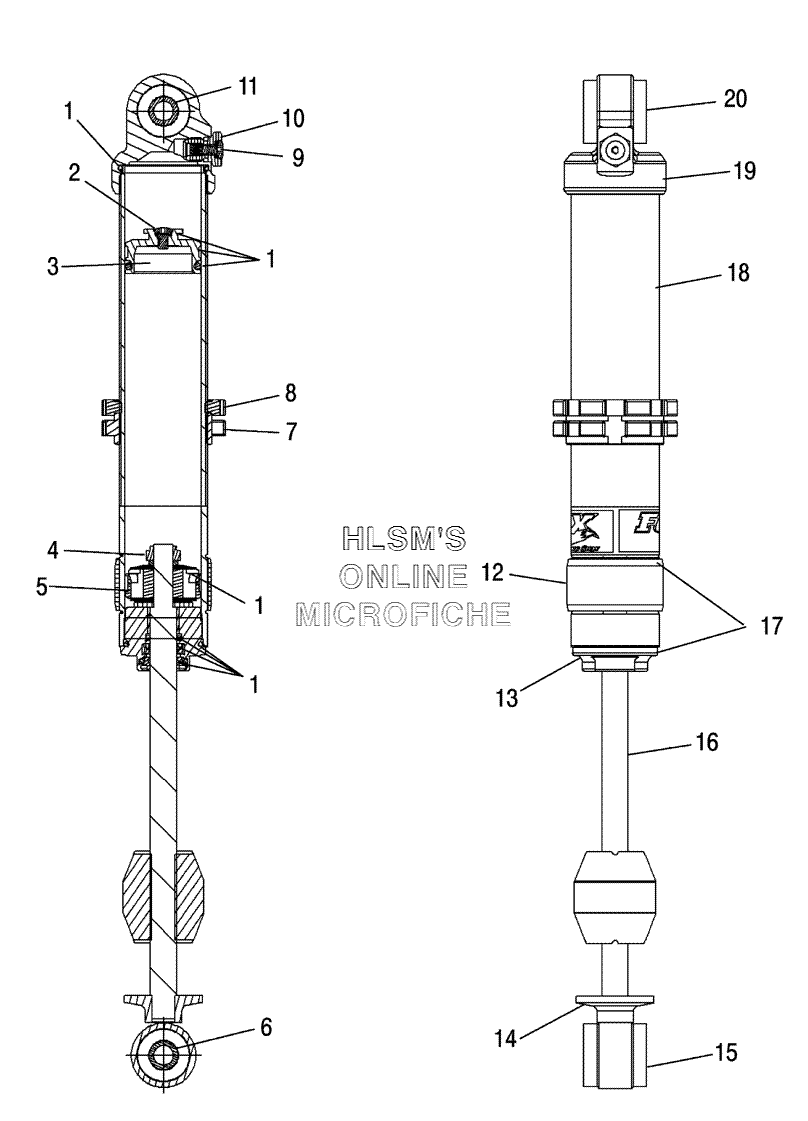

SUSPENSION - FRONT SHOCK TRACK для Polaris FST Switchback (S06PS7FS) - 2006 года выпуска
-
№АртикулНазвание
-
11500710 REBUILD KITREBUILD KIT
-
21500161 SCREW/O-RING ASSYSCREW/O-RING ASSY
-
31500601 IFP ASSYIFP ASSY
-
41500016 NUT, LOCKNUT, LOCK
-
51500010 O-RINGO-RING
-
65020640 BUSHING (1.24)BUSHING (1.24)
-
71500707 RING, SPRING PRELOADRING, SPRING PRELOAD
-
81500708 RING, SPRING PRELOADRING, SPRING PRELOAD
-
91500019 SCREWSCREW
-
101500014 VALVE ASSY, AIRVALVE ASSY, AIR
-
111500714 SLEEVESLEEVE
-
121500585 GUIDE SPRINGGUIDE SPRING
-
131500545 CAPCAP
-
141500164 EYELET, BASEEYELET, BASE
-
151500184 BUSHING EYELET(.35X.575X.595 FOX)BUSHING EYELET(.35X.575X.595 FOX)
-
161500713 SHAFT (6.45TLG)SHAFT (6.45TLG)
-
171500607 WIRE RINGWIRE RING
-
181500712 BODYBODY
-
191500602 BODY CAP ASSYBODY CAP ASSY
-
201500308 BUSHING (.35ILG) (.82TLG)BUSHING (.35ILG) (.82TLG)
