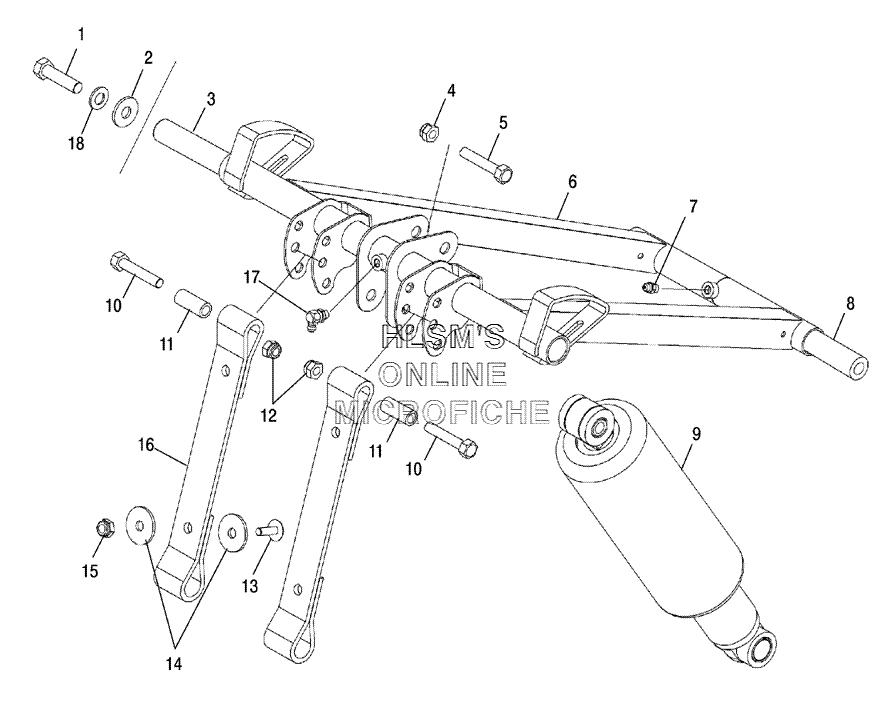

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris FST Switchback (S06PS7FS) - 2006 года выпуска
-
№АртикулНазвание
-
17518005 SCREW, HEXAGON CAPSCREW, HEXAGON CAP
-
27555893 WASHER, FLATWASHER, FLAT
-
35133987 SHAFTSHAFT
-
47542411 NUT, FLEXLOCNUT, FLEXLOC
-
57512410 BOLTBOLT
-
61541962-067 WELD FTA, NARROW (BLACK)WELD FTA, NARROW (BLACK)
-
77080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
85334026 SHAFT, ANODIZE (.740X.390X8.490)SHAFT, ANODIZE (.740X.390X8.490)
-
97043142 SHOCK F/T, FOX IFPSHOCK F/T, FOX IFP
-
95245067 RETAINER SPRING, GAB, PLATEDRETAINER SPRING, GAB, PLATED
-
95433503 SHIELD SPRINGSHIELD SPRING
-
97042050-067 COMP SPRING (170#X7.5INX.343)COMP SPRING (170#X7.5INX.343)
-
95630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
107512329 BOLTBOLT
-
115333522 BUSHINGBUSHING
-
127542324 NUT, NYLOKNUT, NYLOK
-
137517313 SCREWSCREW
-
147556175 WASHERWASHER
-
157542344 NUT, NYLOKNUT, NYLOK
-
165412556 STRAP LIMITERSTRAP LIMITER
-
177080510 FITTING, ZERK, 90 DEGREEFITTING, ZERK, 90 DEGREE
-
187552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
