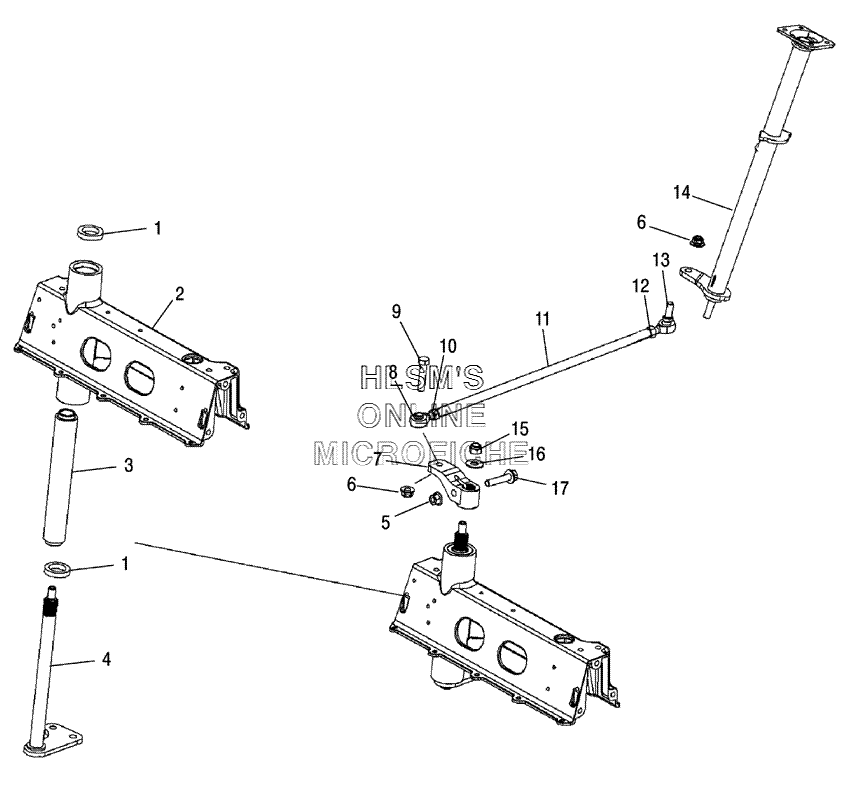

STEERING ASSEMBLY для Polaris FST Switchback (S06PS7FS) - 2006 года выпуска
-
№АртикулНазвание
-
13514481 BEARING BALL (25X37MM)BEARING BALL (25X37MM)
-
25133859 CHANNEL STEERING/SHOCKCHANNEL STEERING/SHOCK
-
35134705 SPACER TUBE, PITMAN SPINDLESPACER TUBE, PITMAN SPINDLE
-
41822947 WELD PITMAN ARMWELD PITMAN ARM
-
57547180 NUT FLANGED, NYLONNUT FLANGED, NYLON
-
67547263 NUT, NYLOKNUT, NYLOK
-
75134697 ARM STEERING PITMAN (UPPER)ARM STEERING PITMAN (UPPER)
-
87061066 ROD, END RADIUS (LEFT)ROD, END RADIUS (LEFT)
-
97515540 BOLTBOLT
-
107542424 NUT (LEFT)NUT (LEFT)
-
115334397-067 ROD DRAGLINK (BLACK)ROD DRAGLINK (BLACK)
-
127542401 NUT, HEXAGON (RIGHT)NUT, HEXAGON (RIGHT)
-
137061084 ROD END (3/8-24) (RIGHT)ROD END (3/8-24) (RIGHT)
-
141821472-067 STEERING POST, MAN (BLACK)STEERING POST, MAN (BLACK)
-
157547066 NUT, NYLOKNUT, NYLOK
-
167555883 WASHERWASHER
-
177518354 SCREW, HEXGON FLANGESCREW, HEXGON FLANGE
-
-1014894 STEERING ASSY. (INCL. 1 5, 7, 15 17)STEERING ASSY. (INCL. 1 5, 7, 15 17)
