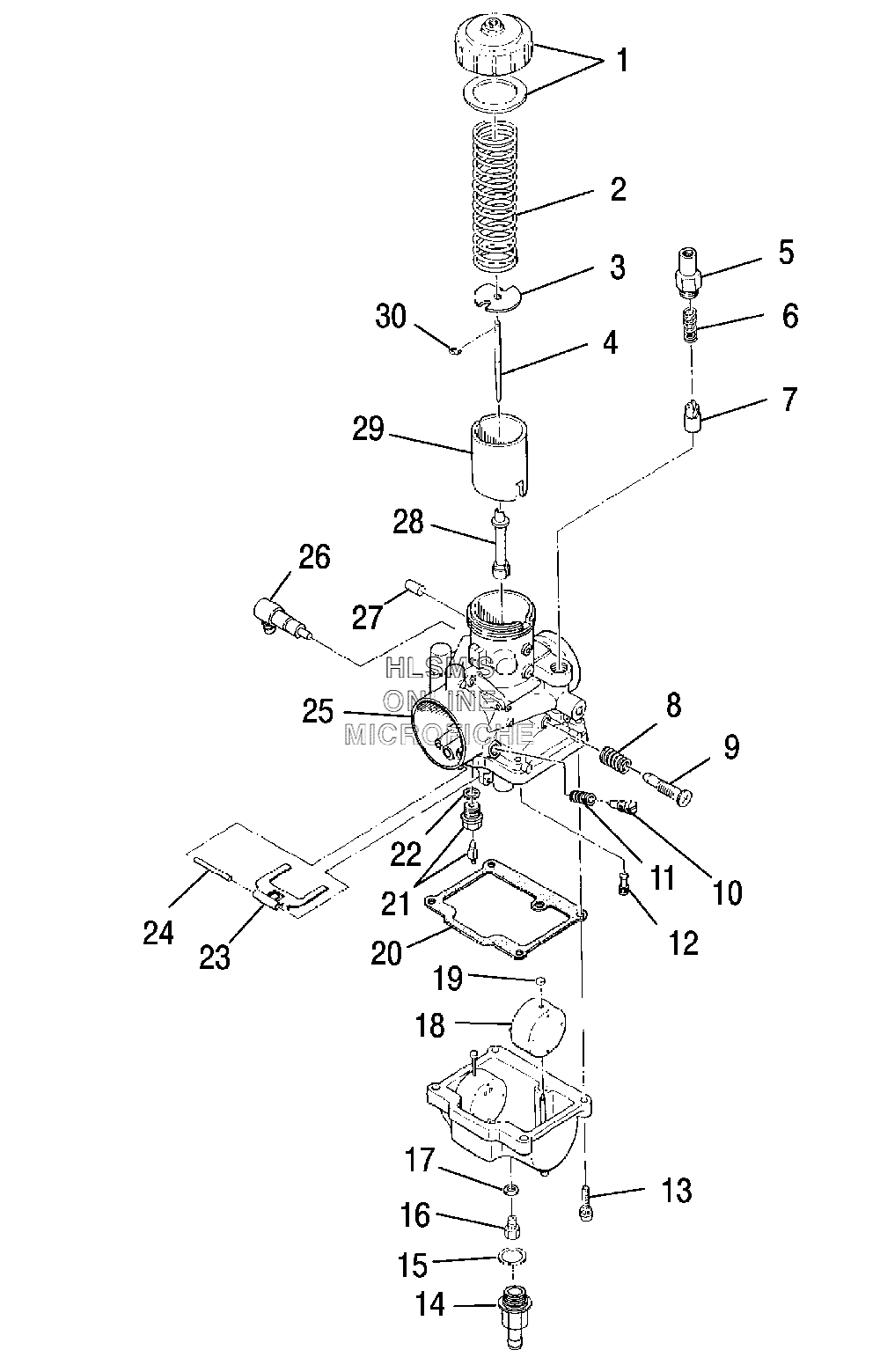

CARBURETOR ASSEMBLY для Polaris Trail RMK 136'' (S06NJ5BSA) - 2006 года выпуска
-
№АртикулНазвание
-
13130184 TOP, MIXING CHAMBER ASSY.TOP, MIXING CHAMBER ASSY.
-
23130439 SPRING, THROTTLESPRING, THROTTLE
-
33130027 PLATE, THROTTLEPLATE, THROTTLE
-
43131221 JET, NEEDLE (6DEH11-3)JET, NEEDLE (6DEH11-3)
-
53130199 HOLDER, GUIDEHOLDER, GUIDE
-
63130006 SPRING, PLUNGERSPRING, PLUNGER
-
73130328 PLUNGER ASSY.PLUNGER ASSY.
-
83130010 SPRINGSPRING
-
93130437 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
103130011 SCREW, AIRSCREW, AIR
-
113130012 SPRING, AIR ADJUSTSPRING, AIR ADJUST
-
123130066 JET, PILOT (#35)JET, PILOT (#35)
-
133130025 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
143130573 NIPPLENIPPLE
-
153130239 O-RINGO-RING
-
163130637 JET, MAIN (#250) (MAG)JET, MAIN (#250) (MAG)
-
163130129 JET, MAIN (#260) (PTO)JET, MAIN (#260) (PTO)
-
173130014 WASHERWASHER
-
183130430 FLOAT ASSY.FLOAT ASSY.
-
193130237 CAPCAP
-
203130020 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
213131146 VALVE, NEEDLE (1.5)VALVE, NEEDLE (1.5)
-
223130017 PACKING, NEEDLE VALVEPACKING, NEEDLE VALVE
-
233130018 ARM, FLOATARM, FLOAT
-
243130361 PIN, FLOATPIN, FLOAT
-
253131565 CARBURETOR ASSY. (MAG) (INCL. 1-9, 10-30)CARBURETOR ASSY. (MAG) (INCL. 1-9, 10-30)
-
253131564 CARBURETOR ASSY. (PTO) (INCL. 1-9, 10-30)CARBURETOR ASSY. (PTO) (INCL. 1-9, 10-30)
-
263086785 VALVE, CHECK ASSY.VALVE, CHECK ASSY.
-
273130479 CAPCAP
-
283130964 JET, NEEDLE (480)JET, NEEDLE (480)
-
293130372 VALVE, THROTTLE (3.0)VALVE, THROTTLE (3.0)
-
303130508 E-RINGE-RING
