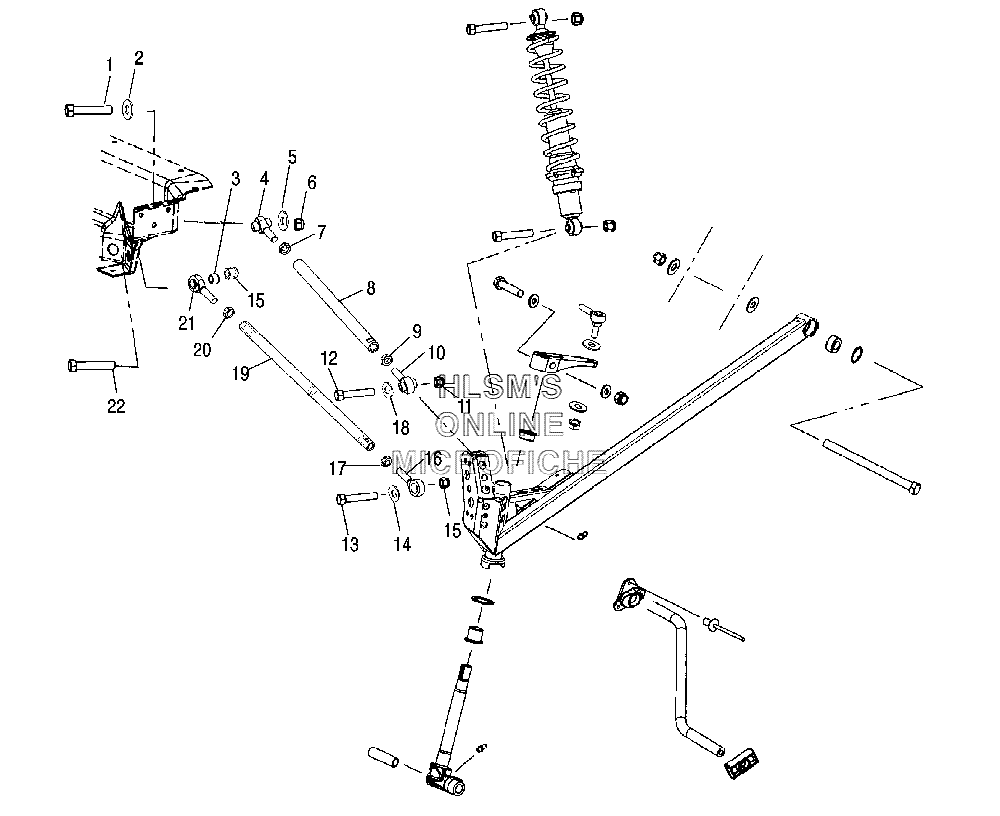

SUSPENSION - FRONT W/ STEERING для Polaris Trail RMK 136'' (S06NJ5BSA) - 2006 года выпуска
-
№АртикулНазвание
-
17517980 BOLTBOLT
-
27556212 WASHERWASHER
-
35132454 BUSHING, SPACERBUSHING, SPACER
-
47061081 ROD END-RADIUS (LEFT)ROD END-RADIUS (LEFT)
-
57555852 WASHER, FLATWASHER, FLAT
-
67547066 NUTNUT
-
77547117 NUT (LEFT)NUT (LEFT)
-
85133691 TUBE-RADIUS ROD (UPPER)TUBE-RADIUS ROD (UPPER)
-
97542520 NUT, JAMNUT, JAM
-
107061104 ROD END-7/16 (RIGHT)ROD END-7/16 (RIGHT)
-
117542439 NUT, NYLOKNUT, NYLOK
-
127517583 SCREWSCREW
-
137517906 BOLTBOLT
-
147556213 WASHERWASHER
-
157547216 NUTNUT
-
167061103 ROD END-1/2 (RIGHT)ROD END-1/2 (RIGHT)
-
177542711 NUT-JAMNUT-JAM
-
187556153 WASHER, 3/8 FWWASHER, 3/8 FW
-
195132953 TUBE-RADIUS ROD (LOWER)TUBE-RADIUS ROD (LOWER)
-
207547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
217061087 ROD END-RADIUS (LEFT/LOWER)ROD END-RADIUS (LEFT/LOWER)
-
227518041 BOLTBOLT
