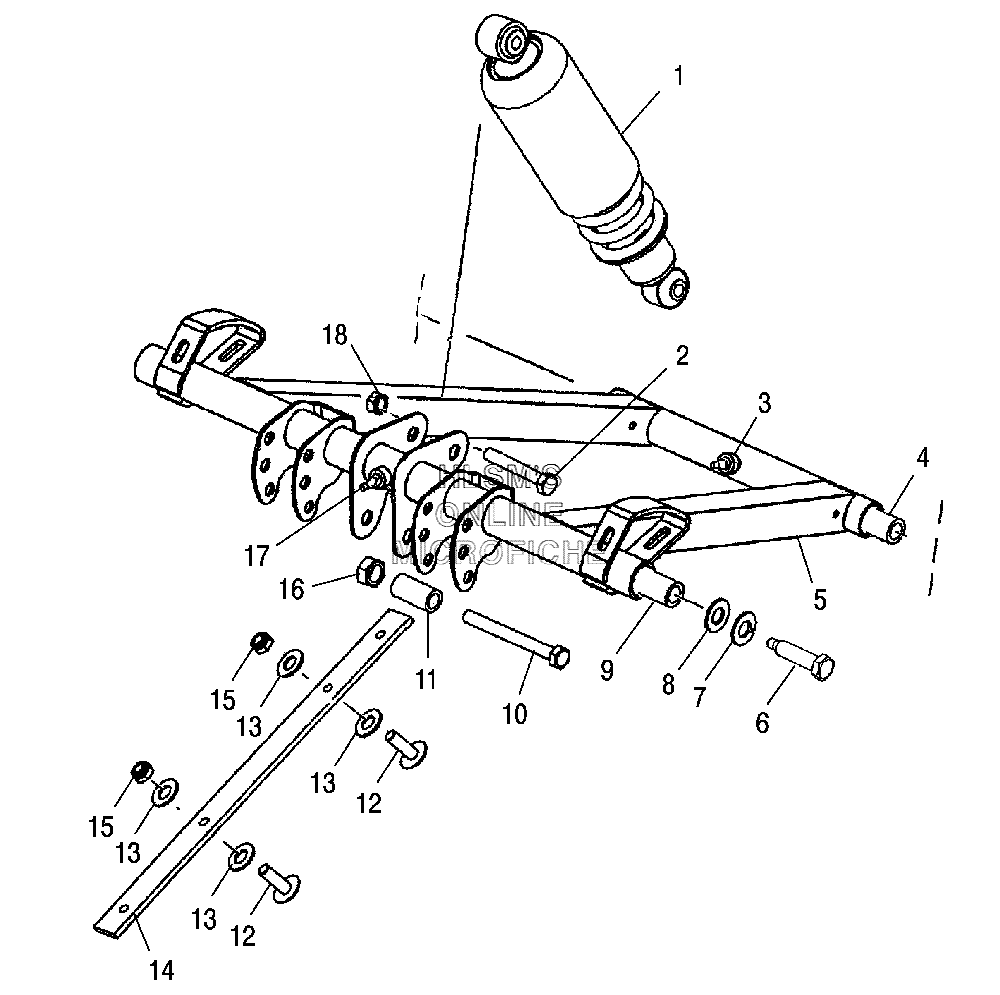

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris Trail RMK 136'' (S06NJ5BSA) - 2006 года выпуска
-
№АртикулНазвание
-
17042085 SHOCK-FRONT TRACKSHOCK-FRONT TRACK
-
15245067 RETAINER-SPRING, GABRETAINER-SPRING, GAB
-
15433503 SHIELD-SPRINGSHIELD-SPRING
-
17042050-067 COMP-SPRINGCOMP-SPRING
-
15630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
27512410 BOLTBOLT
-
37080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
45334026 SHAFT, ANODIZESHAFT, ANODIZE
-
51541613-067 WELD-FTA (BLACK)WELD-FTA (BLACK)
-
67517435 SCREWSCREW
-
77552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
87555893 WASHER, FLATWASHER, FLAT
-
95020908 SHAFTSHAFT
-
107512329 BOLTBOLT
-
115333522 BUSHINGBUSHING
-
127517313 SCREWSCREW
-
137556175 WASHERWASHER
-
145812282 STRAP-LIMITERSTRAP-LIMITER
-
157542344 NUT, NYLOKNUT, NYLOK
-
167542324 NUT, NYLOKNUT, NYLOK
-
177080510 FITTING, ZERK, 90 DEGREEFITTING, ZERK, 90 DEGREE
-
187542411 NUT, FLEXLOCNUT, FLEXLOC
