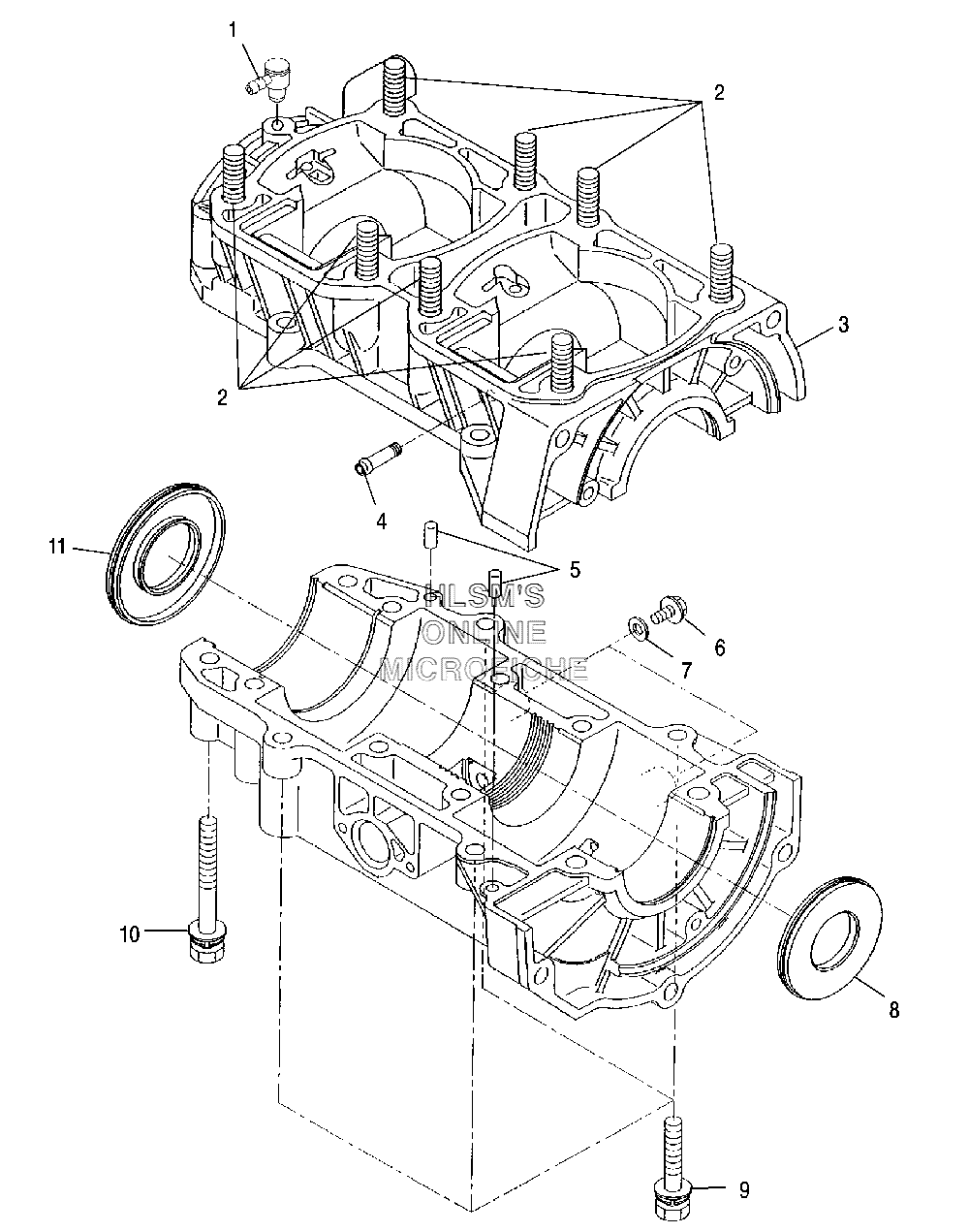

CRANKCASE ASSEMBLY для Polaris Trail RMK 136'' (S06NJ5BSA) - 2006 года выпуска
-
№АртикулНазвание
-
13085462 NIPPLE, ELBOWNIPPLE, ELBOW
-
23085713 STUDSTUD
-
33089225 CRANKCASE ASSY. (INCL. 1,2,4,5,9,10)CRANKCASE ASSY. (INCL. 1,2,4,5,9,10)
-
43083798 PIPE, PULSEPIPE, PULSE
-
53086838 PIN, DOWELPIN, DOWEL
-
63087256 BOLT, FLANGEBOLT, FLANGE
-
77555998 WASHER, FLATWASHER, FLAT
-
83085664 SEAL, OILSEAL, OIL
-
93084225 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
103084670 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
113085241 SEAL, OILSEAL, OIL
