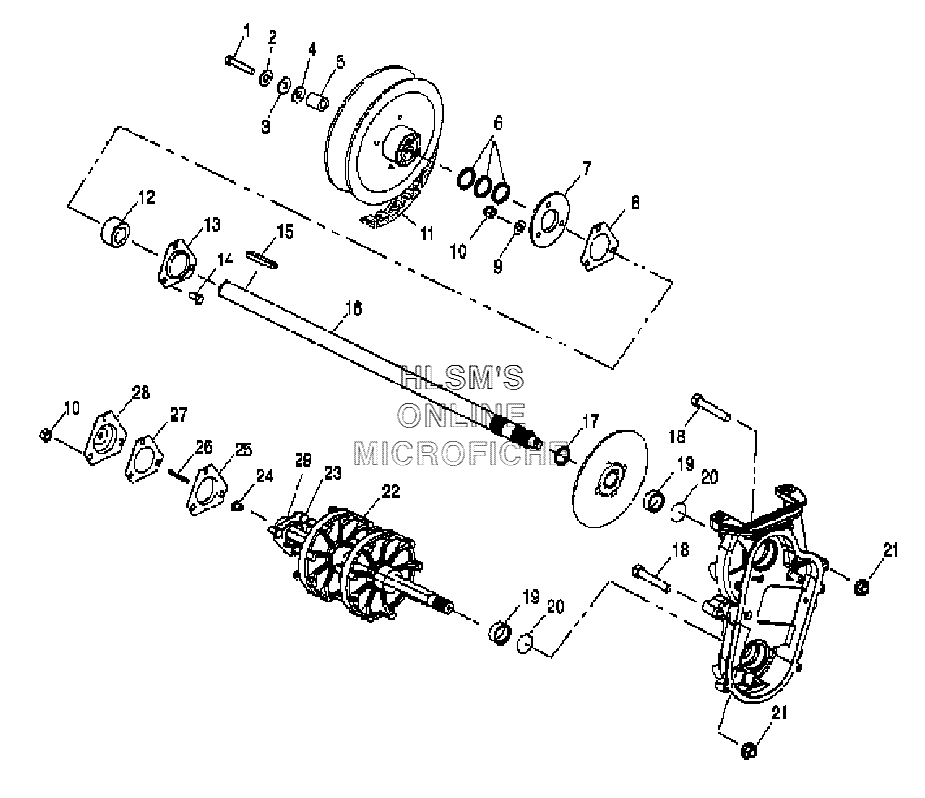

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 340 EDGE TOURING (S07NT3AS) - 2007 года выпуска
-
№АртикулНазвание
-
17517581 SCREWSCREW
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
47555957 WASHERWASHER
-
55135620 BUSHINGBUSHING
-
67556509 BUSHINGBUSHING
-
67555917 WASHERWASHER
-
75241359 FLANGE, RELUBE W/ZERKFLANGE, RELUBE W/ZERK
-
77080561 FITTING, LUB/VENFITTING, LUB/VEN
-
85811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
97558402 WASHER, FLATWASHER, FLAT
-
107542324 NUT, NYLOKNUT, NYLOK
-
113211078 BELT DRIVEBELT DRIVE
-
123514448 BEARING (25MM)BEARING (25MM)
-
135222751 FLANGETTEFLANGETTE
-
147512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
157721128 KEY (1/4X3/16X2.75)KEY (1/4X3/16X2.75)
-
161332457 JACKSHAFT ASSY. (INCL. 12, 17)JACKSHAFT ASSY. (INCL. 12, 17)
-
177710422 RING, RETAININGRING, RETAINING
-
187515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
195020588 SLEEVE, SEALSLEEVE, SEAL
-
205410613 O-RINGO-RING
-
217542423 NUT, FLANGENUT, FLANGE
-
221590370 DRIVESHAFT ASSY. (8 TEETH) (INCL. 23, 24, 29)DRIVESHAFT ASSY. (8 TEETH) (INCL. 23, 24, 29)
-
231012945 FLANGETTE ASSY., W/SCREWSFLANGETTE ASSY., W/SCREWS
-
243280019 BUSHING METAL SPEEDOBUSHING METAL SPEEDO
-
255243529 FLANGETTE-OFFSET, W/HOLEFLANGETTE-OFFSET, W/HOLE
-
263280017 KEY, SPEEDOMETER, SQUAREKEY, SPEEDOMETER, SQUARE
-
275830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
283280197 ADAPTER, DRIVE, W/ZERKADAPTER, DRIVE, W/ZERK
-
293514525 BEARINGBEARING
