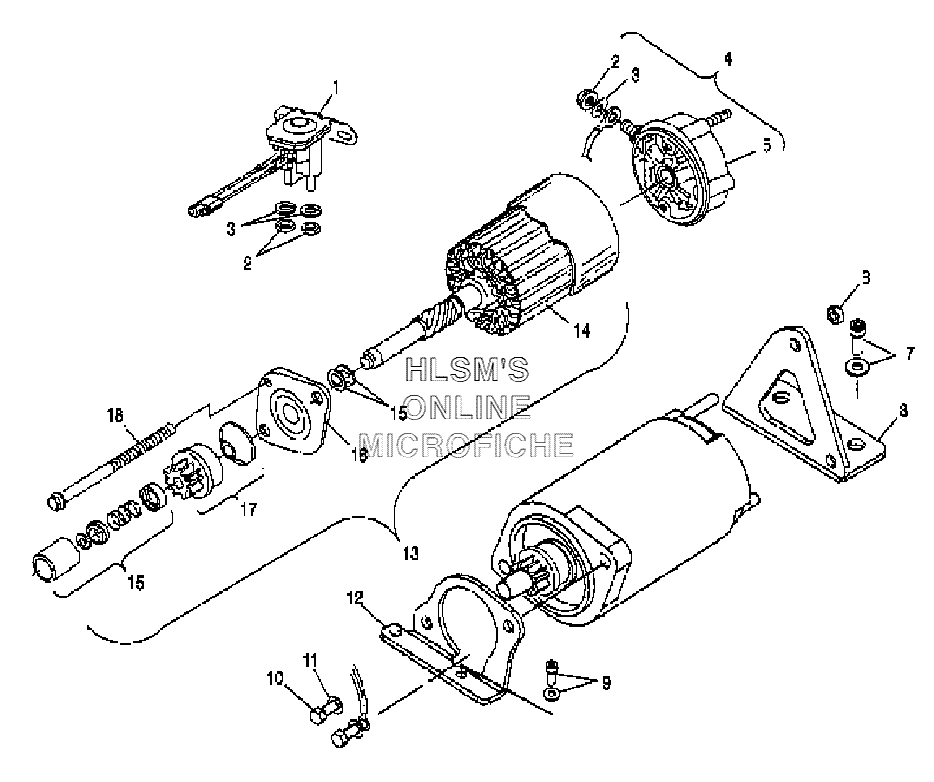

STARTING MOTOR ASSEMBLY для Polaris 340 EDGE TOURING (S07NT3AS) - 2007 года выпуска
-
№АртикулНазвание
-
14011335 SWITCH-MAGNETIC (INCL. 2, 3)SWITCH-MAGNETIC (INCL. 2, 3)
-
27542105 NUT HEXNUT HEX
-
37552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
42200758 COMMUTATOR CAP ASSY. (INCL. 5)COMMUTATOR CAP ASSY. (INCL. 5)
-
52200759 BRUSH AND SPRING KITBRUSH AND SPRING KIT
-
67542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
77516815 SCREWSCREW
-
85241786 BRACKET, STARTER, REARBRACKET, STARTER, REAR
-
97516730 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
107512492 SCREWSCREW
-
117552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
125241316 BRACKET, STARTER, FRONT(3/LITE)BRACKET, STARTER, FRONT(3/LITE)
-
132410748 MOTOR-STARTER, DOMESTICMOTOR-STARTER, DOMESTIC
-
142200756 ARMATURE ASSY.ARMATURE ASSY.
-
152200755 DRIVE HARDWARE KITDRIVE HARDWARE KIT
-
162200757 DRIVECAP ASSY.DRIVECAP ASSY.
-
172200754 DRIVE ASSY.DRIVE ASSY.
-
182200753 SCREWSCREW
