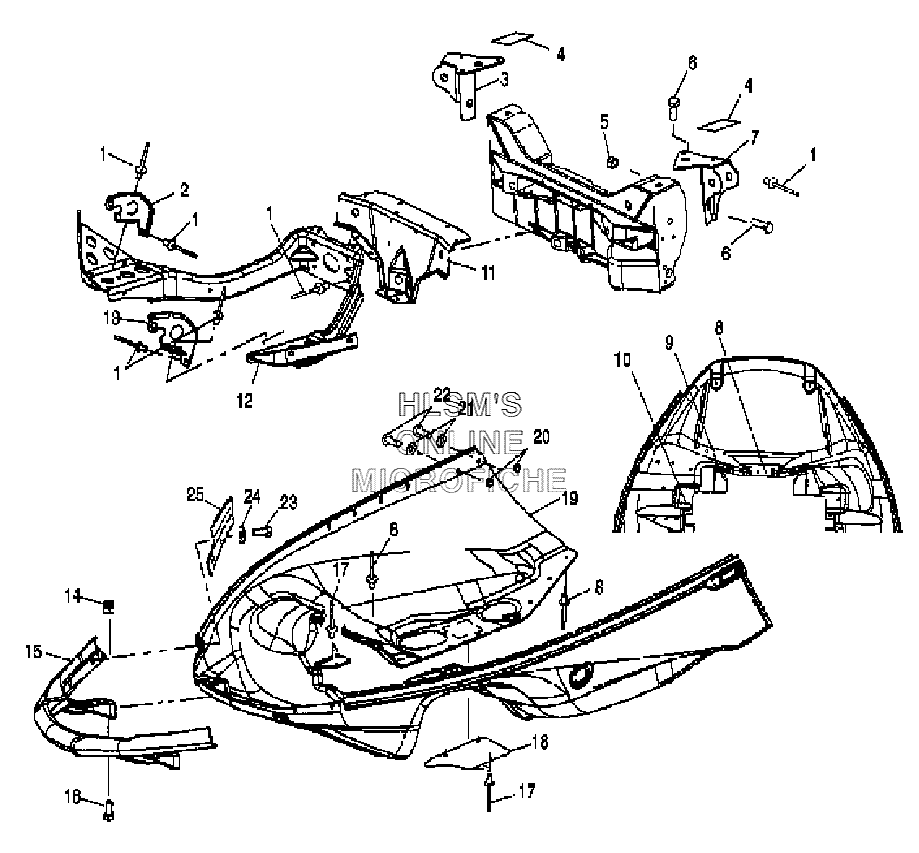

NOSEPAN ASSEMBLY #1 для Polaris 340 EDGE TOURING (S07NT3AS) - 2007 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
25243992-067 HINGE-LOWER PIVOT (BLACK/RIGHT)HINGE-LOWER PIVOT (BLACK/RIGHT)
-
35243978 MOUNT, UPPER SHOCK (BLACK/RIGHT)MOUNT, UPPER SHOCK (BLACK/RIGHT)
-
45810947 FOAM, SEALFOAM, SEAL
-
57547180 NUT-FLANGEDNUT-FLANGED
-
67517935 SCREWSCREW
-
75243977 MOUNT-UPPER SHOCK (BLACK/LEFT)MOUNT-UPPER SHOCK (BLACK/LEFT)
-
87621467 RIVET, BLINDRIVET, BLIND
-
97621431 RIVETRIVET
-
107661136 RIVETRIVET
-
115244049-067 BRACKET, RAD. ROD SUPPORT (BLACK)BRACKET, RAD. ROD SUPPORT (BLACK)
-
125244050 BRACE, PAN LOWERBRACE, PAN LOWER
-
135243991-067 HINGE-LOWER PIVOT (LEFT/BLACK)HINGE-LOWER PIVOT (LEFT/BLACK)
-
147542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
155434439-070 BUMPER-FRONT, W/OUT NUTSERTS (BLACK) (INCL. HARDWARE)BUMPER-FRONT, W/OUT NUTSERTS (BLACK) (INCL. HARDWARE)
-
167512163 BOLTBOLT
-
177621472 RIVETRIVET
-
185245853 SHIELD, HEAT, EXTENDEDSHIELD, HEAT, EXTENDED
-
195434980-070 NOSEPAN-BLACKNOSEPAN-BLACK
-
207542122 NUT-NYLOKNUT-NYLOK
-
217555827 WASHERWASHER
-
227515166 SCREWSCREW
-
237517986 SCREWSCREW
-
247552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
255244888 GUIDE-HOOD (LEFT)GUIDE-HOOD (LEFT)
-
255244889 GUIDE-HOOD (RIGHT)GUIDE-HOOD (RIGHT)
