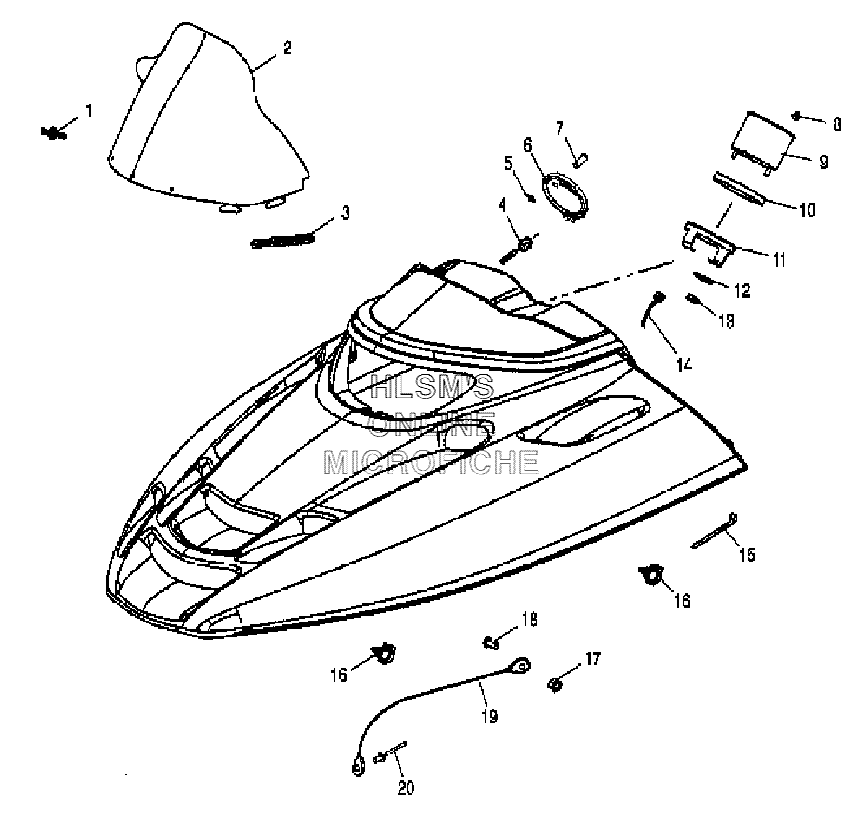

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 340 EDGE TOURING (S07NT3AS) - 2007 года выпуска
-
№АртикулНазвание
-
17621509 RIVET, PLASTI-LOCKRIVET, PLASTI-LOCK
-
25435044 WINDSHIELD 17''WINDSHIELD 17''
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
42461031 HARNESS-JUMPER, REVERSE LIGHTHARNESS-JUMPER, REVERSE LIGHT
-
57670133 RETAINER-1/2'' BOLT/LAMPRETAINER-1/2'' BOLT/LAMP
-
65434081 PLUG-DASH, 5'' W/SINGLE 1/2''HOLEPLUG-DASH, 5'' W/SINGLE 1/2''HOLE
-
74010687 INDICATOR-REVERSE (1/2 DIA)INDICATOR-REVERSE (1/2 DIA)
-
83280186 KNOB, TRIP ODOMETER (LEFT)KNOB, TRIP ODOMETER (LEFT)
-
93280411 SPEED ASSY., 5'', 120MPH (WHITE/BLACK)SPEED ASSY., 5'', 120MPH (WHITE/BLACK)
-
94030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
103280209 CUSHION, TACH/SPEEDO, RUBBERCUSHION, TACH/SPEEDO, RUBBER
-
113280210 BRACKET, TACH/SPEEDO, 5''BRACKET, TACH/SPEEDO, 5''
-
123280157 WASHER, FLATWASHER, FLAT
-
137546703 NUT, NYLOKNUT, NYLOK
-
143280385 CABLE-SPEEDOMETERCABLE-SPEEDOMETER
-
157080138 CABLE TIECABLE TIE
-
164010589 CLIP-PLASTIC, DART NYLONCLIP-PLASTIC, DART NYLON
-
177541925 NUT, NYLOKNUT, NYLOK
-
187512018 SCREWSCREW
-
197080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
207661637 RIVET, INTERLOCKRIVET, INTERLOCK
Все узлы модели:
- BATTERY BOX
- BLOWER HOUSING W/ RECOIL STARTER ASSEMBLY
- BRAKE - MASTER CYLINDER ASSEMBLY
- BUMPER/HITCH FLAP
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CHASSIS - FRONT
- CHASSIS - REAR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE W/WIRE HARNESS
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL PUMP
- FUEL SYSTEM
- GENERATOR ASSEMBLY
- HANDLEBAR - LEVERS AND SWITCHES
- HOOD - FOAM/FOIL
- • HOOD ASSEMBLY W/ WINDSHIELD
- HOOD W/ HEADLIGHT ASSEMBLY
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- SEAT ADJUSTABLE
- SKI ASSEMBLY
- STARTING MOTOR ASSEMBLY
- STEERING LINKAGE
- STEERING POST - HOOP
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT W/ STEERING
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION/TRACK
- TOOL KIT
