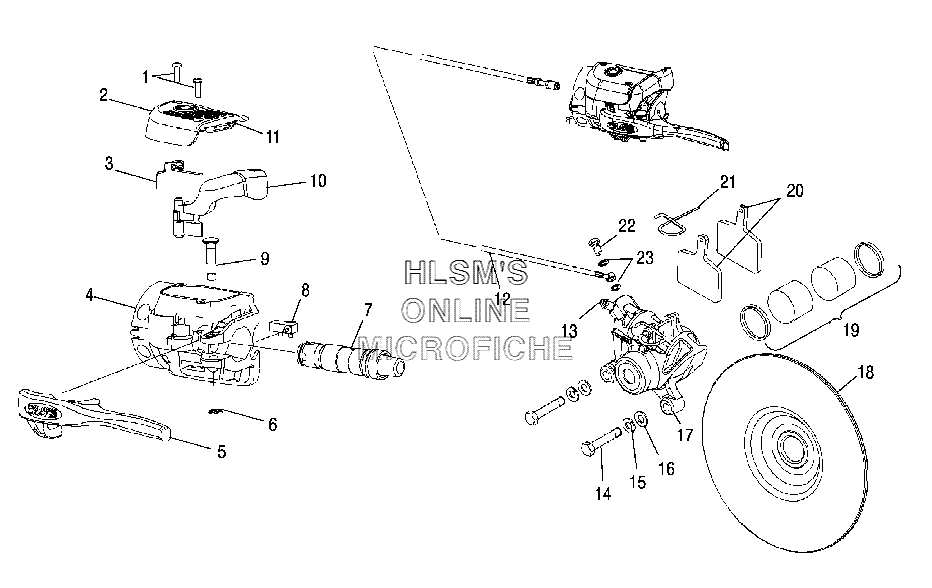

BRAKE - MASTER CYLINDER ASSEMBLY для Polaris 600 HO IQ (S07PP6FS) - 2007 года выпуска
-
№АртикулНазвание
-
12201254 COVER SCREW KITCOVER SCREW KIT
-
22202837 COVER ASSY (INCL. 1, 11)COVER ASSY (INCL. 1, 11)
-
32201250 PARK LEVER SPRING KITPARK LEVER SPRING KIT
-
42202784 RESERVOIR KIT (INCL. 6, 9)RESERVOIR KIT (INCL. 6, 9)
-
52201943 LEVER KIT, 3 NOTCH/PIN/RING (INCL. 6, 9)LEVER KIT, 3 NOTCH/PIN/RING (INCL. 6, 9)
-
62201945 SNAP RING KITSNAP RING KIT
-
72202783 5/8'' CARTRIDGE KIT5/8'' CARTRIDGE KIT
-
82203184 BRACEBRACE
-
92201946 PIVOT PIN KIT, ALUM W/SNAP RING (INCL. 6)PIVOT PIN KIT, ALUM W/SNAP RING (INCL. 6)
-
102201251 PARK LEVER AND SPRING KITPARK LEVER AND SPRING KIT
-
122202929 HOSE KIT (29.18'' 1/4'')HOSE KIT (29.18'' 1/4'')
-
132202205 BLEEDER FITTING KITBLEEDER FITTING KIT
-
147515534 SCREWSCREW
-
157552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
167556160 WASHERWASHER
-
172202742 BRAKE CALIPER ASSYBRAKE CALIPER ASSY
-
182202874 SERVICE DISC KITSERVICE DISC KIT
-
192202207 PISTON/SEAL KITPISTON/SEAL KIT
-
192202204 SEAL KITSEAL KIT
-
202202727 BRAKE PAD KIT (INCL. 21)BRAKE PAD KIT (INCL. 21)
-
212202206 PIN RETAINING KITPIN RETAINING KIT
-
222202789 BANJO KITBANJO KIT
-
232202790 STATOSEAL WASHER (2 PER)STATOSEAL WASHER (2 PER)
