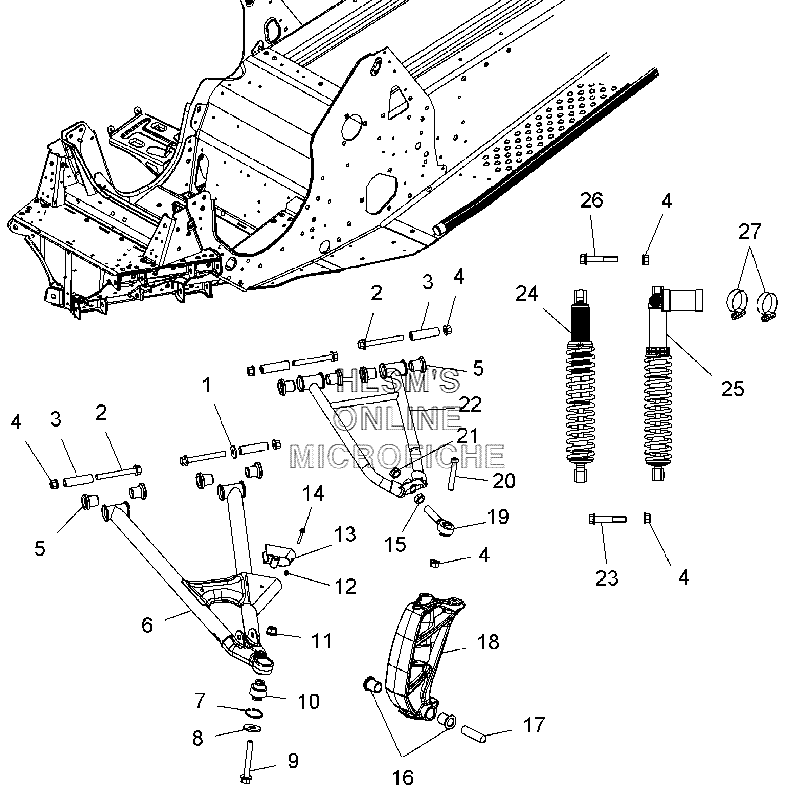

SUSPENSION - FRONT W/ STEERING для Polaris 600 HO IQ (S07PP6FS) - 2007 года выпуска
-
№АртикулНазвание
-
17555893 WASHER, FLATWASHER, FLAT
-
27518384 SCREWSCREW
-
35133860 SHAFT-PIVOTSHAFT-PIVOT
-
47547180 NUT-FLANGEDNUT-FLANGED
-
55434932 BUSHING-PIVOTBUSHING-PIVOT
-
62203021-067 A-ARM ASSY. (BOTTOM) (INCL. 3-7, 12-14)A-ARM ASSY. (BOTTOM) (INCL. 3-7, 12-14)
-
62203022-067 A-ARM ASSY. (BOTTOM) (INCL. 3-7, 12-14)A-ARM ASSY. (BOTTOM) (INCL. 3-7, 12-14)
-
77710539 RING-RETAININGRING-RETAINING
-
87556153 WASHERWASHER
-
97518478 SCREWSCREW
-
102203107 BEARING KIT (LOWER) (INCL. 7)BEARING KIT (LOWER) (INCL. 7)
-
117547344 NUTNUT
-
127541925 NUT, NYLOKNUT, NYLOK
-
135435522 SLIDE-SWAY BARSLIDE-SWAY BAR
-
147510504 SCREWSCREW
-
157542711 NUT-JAMNUT-JAM
-
165133983 BUSHING-SKI PIVOTBUSHING-SKI PIVOT
-
175010158 BUSHING, PIVOTBUSHING, PIVOT
-
181822795 SPINDLE ASSY, FUSION (LEFT) (INCL. 16)SPINDLE ASSY, FUSION (LEFT) (INCL. 16)
-
181822796 SPINDLE ASSY, FUSION (RIGHT) (INCL. 16)SPINDLE ASSY, FUSION (RIGHT) (INCL. 16)
-
197061145 ROD END (1/2)ROD END (1/2)
-
207518428 SCREWSCREW
-
217547104 NUTNUT
-
222203019-067 A-ARM ASSY. (TOP) (INCL. 3, 5, 12, 15, 19, 21)A-ARM ASSY. (TOP) (INCL. 3, 5, 12, 15, 19, 21)
-
222203020-067 A-ARM ASSY. (TOP) (INCL. 3, 5, 12, 15, 19, 21)A-ARM ASSY. (TOP) (INCL. 3, 5, 12, 15, 19, 21)
-
237518278 SCREWSCREW
-
247043245 SPRING-COMP, IFSSPRING-COMP, IFS
-
247041576-067 SPRING-COMP, IFS (10.80/100FOXBK)SPRING-COMP, IFS (10.80/100FOXBK)
-
245630580 RETAINER,SPRING,SLOTTEDRETAINER,SPRING,SLOTTED
-
257043268 SHOCKSHOCK
-
257043269 SHOCKSHOCK
-
257041576-067 SPRING-COMP, IFSSPRING-COMP, IFS
-
267518554 SCREWSCREW
-
277080451 CLAMP, HOSECLAMP, HOSE
