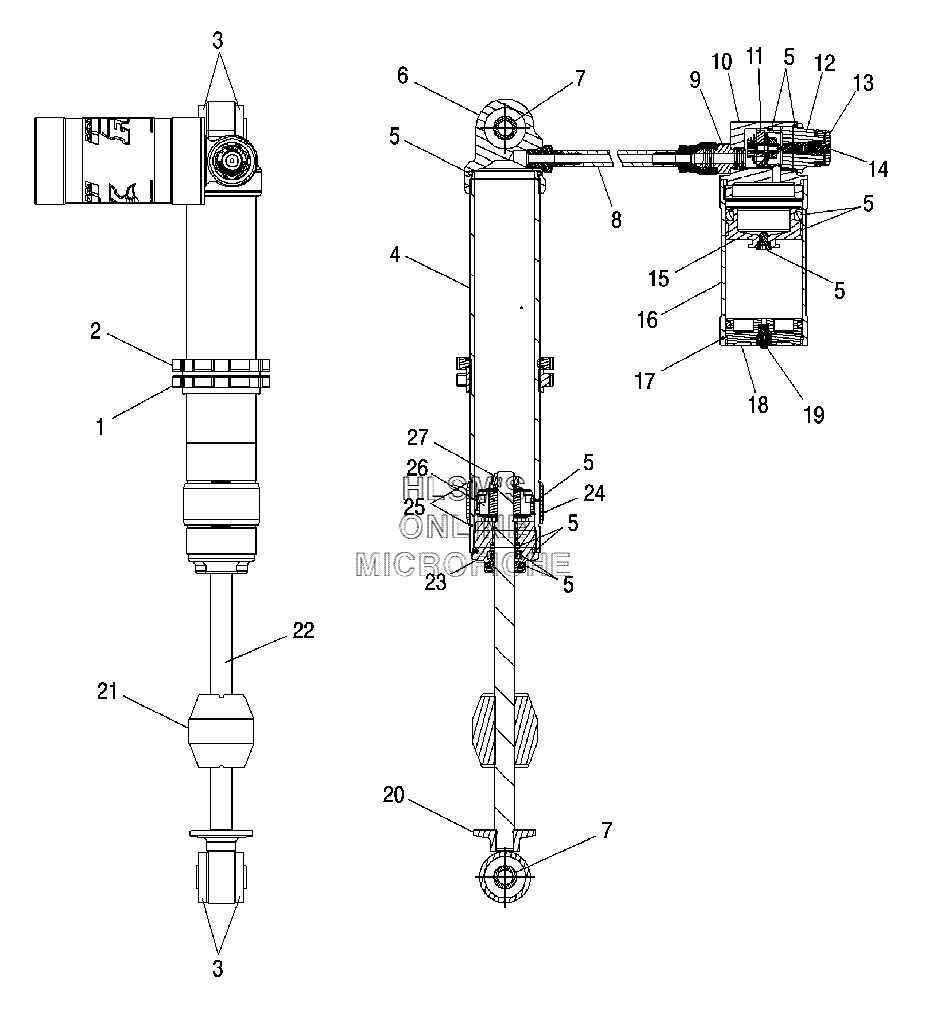

SUSPENSION - RYDE FX - REAR TRACK SHOCK для Polaris 600 HO IQ (S07PP6FS) - 2007 года выпуска
-
№АртикулНазвание
-
11500707 RING, SPRING PRELOAD 234-00-126RING, SPRING PRELOAD 234-00-126
-
21500708 RING, SPRING PRELOAD 234-00-127RING, SPRING PRELOAD 234-00-127
-
31500137 BUSHING, EYELETBUSHING, EYELET
-
41500711 BODYBODY
-
51500710 REBUILD KITREBUILD KIT
-
61500769 BOW-EYEBOW-EYE
-
71500138 SLEEVE, STEELSLEEVE, STEEL
-
81500770 TUBETUBE
-
91500773 FITTINGFITTING
-
101500772 O-RINGO-RING
-
111500727 ADJ.-CD PISTONADJ.-CD PISTON
-
121500771 O-RINGO-RING
-
131500720 KNOB-CD, BLUEKNOB-CD, BLUE
-
141500721 SCREW-SETSCREW-SET
-
151500515 PISTON, FLOATINGPISTON, FLOATING
-
161500633 RESERVOIRRESERVOIR
-
171500236 RING, RETAININGRING, RETAINING
-
181500744 O-RINGO-RING
-
191500722 BALLBALL
-
191500723 SCREW-SETSCREW-SET
-
191500724 PELLETPELLET
-
201500164 EYELET, BASEEYELET, BASE
-
211500567 BUMPER, B/OBUMPER, B/O
-
221500768 SHAFTSHAFT
-
231500545 CAPCAP
-
241500585 GUIDE-SPRINGGUIDE-SPRING
-
251500607 WIRE RINGWIRE RING
-
261500010 O-RINGO-RING
-
271500016 NUT, LOCKNUT, LOCK
-
-7043268 SHOCKSHOCK
-
-7043269 SHOCKSHOCK
