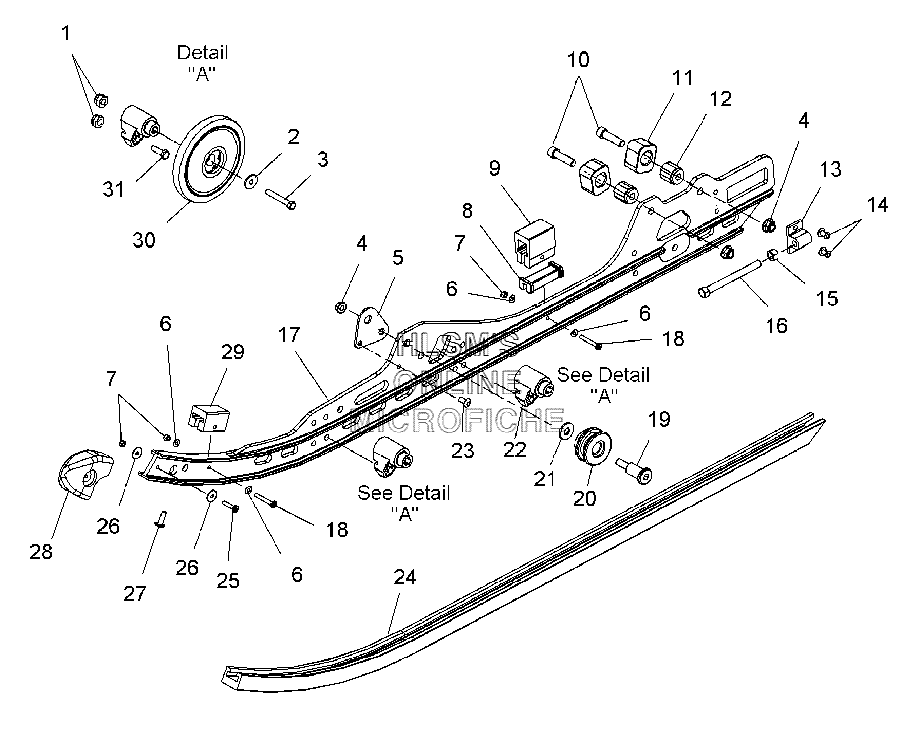

SUSPENSION - RAIL MOUNTING для Polaris 600 HO IQ (S07PP6FS) - 2007 года выпуска
-
№АртикулНазвание
-
17542324 NUT, NYLOKNUT, NYLOK
-
27556179 WASHER-SPRINGWASHER-SPRING
-
37515346 SCREWSCREW
-
47547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
55248414 BRACKET-RAIL REINFBRACKET-RAIL REINF
-
67555783 WASHER, FLATWASHER, FLAT
-
77541925 NUT, NYLOKNUT, NYLOK
-
85432946 LINER, BUMPERLINER, BUMPER
-
95521498 BUMPER, JOUNCE (REAR)BUMPER, JOUNCE (REAR)
-
107515537 BOLTBOLT
-
115410925 BUMPER, PIVOT ARMBUMPER, PIVOT ARM
-
125131113 MOUNT, BUMPERMOUNT, BUMPER
-
135130530 BLOCK-IDLER BOLT ADJ.BLOCK-IDLER BOLT ADJ.
-
147621501 RIVETRIVET
-
157542404 NUTNUT
-
167517227 SCREWSCREW
-
171542130 RAIL ASSY, 121 (LEFT) (INCL. 6-9, 13, 14, 18, 25, 26, 28, 29)RAIL ASSY, 121 (LEFT) (INCL. 6-9, 13, 14, 18, 25, 26, 28, 29)
-
171542131 RAIL ASSY, 121 (RIGHT) (INCL. 6-9, 13, 14, 18, 25, 26, 28, 29)RAIL ASSY, 121 (RIGHT) (INCL. 6-9, 13, 14, 18, 25, 26, 28, 29)
-
187510504 SCREWSCREW
-
197518359 SCREWSCREW
-
205432982 ROLLER, SPRING, SQUAREROLLER, SPRING, SQUARE
-
217555983 WASHER, FLATWASHER, FLAT
-
225631446 BLOCK-WHEEL MOUNTBLOCK-WHEEL MOUNT
-
237661845 RIVETRIVET
-
245521632 SLIDERSLIDER
-
257518335 BOLTBOLT
-
267555792 WASHERWASHER
-
277515199 SCREWSCREW
-
285435527 CAP-RAIL TIPCAP-RAIL TIP
-
295521499 BUMPER, JOUNCE (FRONT)BUMPER, JOUNCE (FRONT)
-
301590419-070 BEARINGBEARING
-
303514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
307710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
317515317 BOLTBOLT
