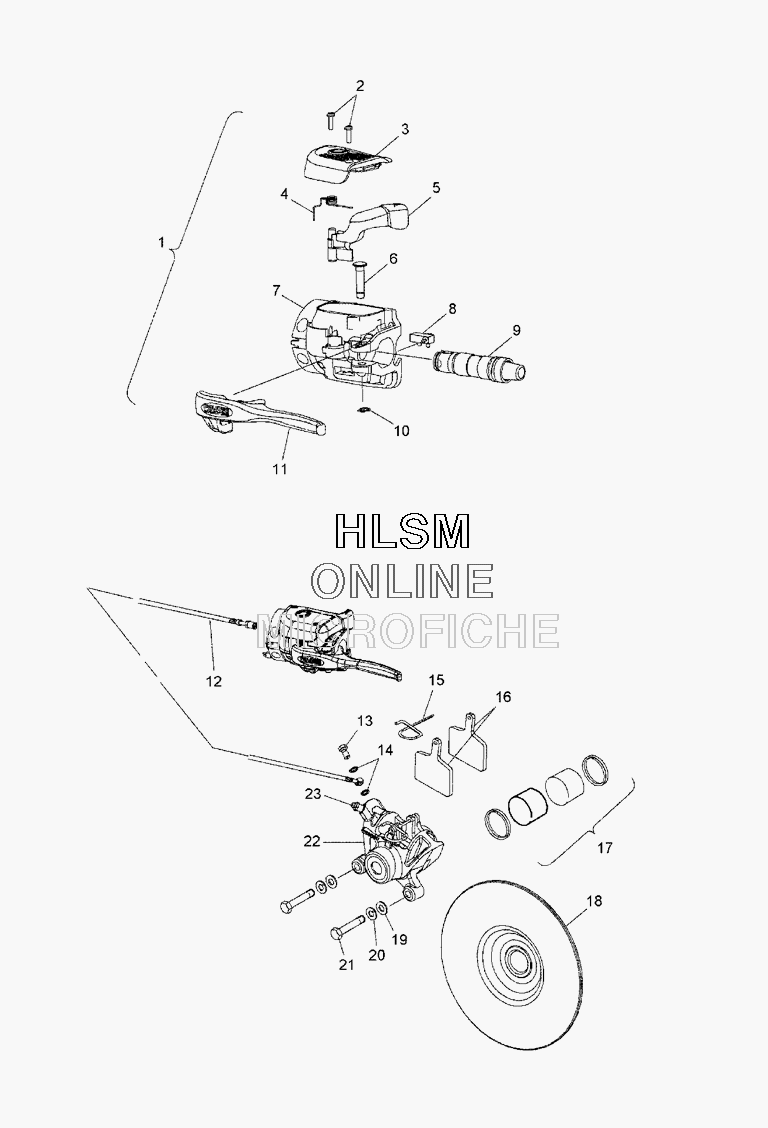

BRAKE ASSEMBLY для Polaris 700 TURBO SWITCHBACK (S09PR7FS) - 2009 года выпуска
-
№АртикулНазвание
-
12203487 KIT-FULL ASM KIT 98-21197 (INCL. 2-4, 7, 9-11)KIT-FULL ASM KIT 98-21197 (INCL. 2-4, 7, 9-11)
-
22201254 KIT, COVER SCREWKIT, COVER SCREW
-
32202837 KIT-COVER ASM 4 #98-17061 (INCL. 2, GASKET)KIT-COVER ASM 4 #98-17061 (INCL. 2, GASKET)
-
42201250 KIT, PARK LEVER SPRINGKIT, PARK LEVER SPRING
-
52201251 KIT, PARK LEVER AND SPRINGKIT, PARK LEVER AND SPRING
-
62201946 KIT-PIVOT PIN, ALUM W/SNAP RING (INCL. 10)KIT-PIVOT PIN, ALUM W/SNAP RING (INCL. 10)
-
72202784 KIT-RESERVOIR, 98-15657 (INCL. 6, 10)KIT-RESERVOIR, 98-15657 (INCL. 6, 10)
-
82202786 KIT-STOPLIGHT SWITCH 98-16195KIT-STOPLIGHT SWITCH 98-16195
-
92203486 KIT-5/8'' CARTRIDGE 98-21196KIT-5/8'' CARTRIDGE 98-21196
-
102201945 KIT-SNAP RINGKIT-SNAP RING
-
112201943 KIT-LEVER, 3 NOTCH/PIN/RING (INCL. 6, 10)KIT-LEVER, 3 NOTCH/PIN/RING (INCL. 6, 10)
-
122202929 KIT, HOSEKIT, HOSE
-
132203392 KIT-M10X1.25 BANJOKIT-M10X1.25 BANJO
-
142203393 KIT-STATOSEAL WASHER (2 PER)KIT-STATOSEAL WASHER (2 PER)
-
152202206 KIT-PIN RETAININGKIT-PIN RETAINING
-
162202727 KIT-BRAKE PAD, TYPE 94 (INCL. 15)KIT-BRAKE PAD, TYPE 94 (INCL. 15)
-
172202207 KIT-PISTON/SEALKIT-PISTON/SEAL
-
172202204 KIT-SEALKIT-SEAL
-
182202843 KIT-FORGED DISCKIT-FORGED DISC
-
197556160 WASHER, .380X.813X.150WASHER, .380X.813X.150
-
207552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
217515534 SCREWSCREW
-
222202742 KIT-ASM BRAKE CALIPER LC LR94KIT-ASM BRAKE CALIPER LC LR94
-
232202205 KIT-BLEEDER FITTINGKIT-BLEEDER FITTING
