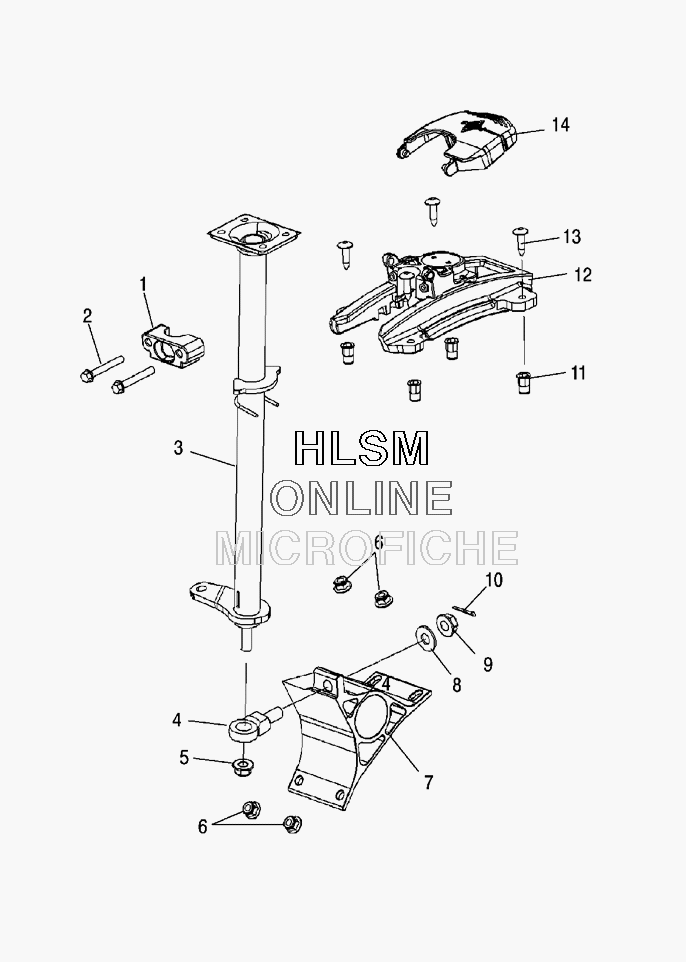

STEERING POST - ADJUSTABLE для Polaris 700 TURBO SWITCHBACK (S09PR7FS) - 2009 года выпуска
-
№АртикулНазвание
-
15435952 BLOCK-STEERING POST, FRT HALFBLOCK-STEERING POST, FRT HALF
-
27512093 SCREWSCREW
-
31821472-067 STEERING POST, MAN, BLACKSTEERING POST, MAN, BLACK
-
47061144 BALL JOINT-STRGBALL JOINT-STRG
-
57547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
67542343 NUT, FLANGENUT, FLANGE
-
75134696 BRKT-STRG, LOWERBRKT-STRG, LOWER
-
87555801 WASHERWASHER
-
97547346 NUT-7/16-20 HX NYL INSRT ZCNUT-7/16-20 HX NYL INSRT ZC
-
107661205 PIN-COTTERPIN-COTTER
-
117547069 NUTSERT, HEXNUTSERT, HEX
-
121822863 ASM-BLOCK, STEERING ADJ (INCL. 14)ASM-BLOCK, STEERING ADJ (INCL. 14)
-
137518520 SCR-1/4-20X1.0 TR/TX, P80, GR5, YSCR-1/4-20X1.0 TR/TX, P80, GR5, Y
-
145435955 LEVER-ADJ STEERINGLEVER-ADJ STEERING
