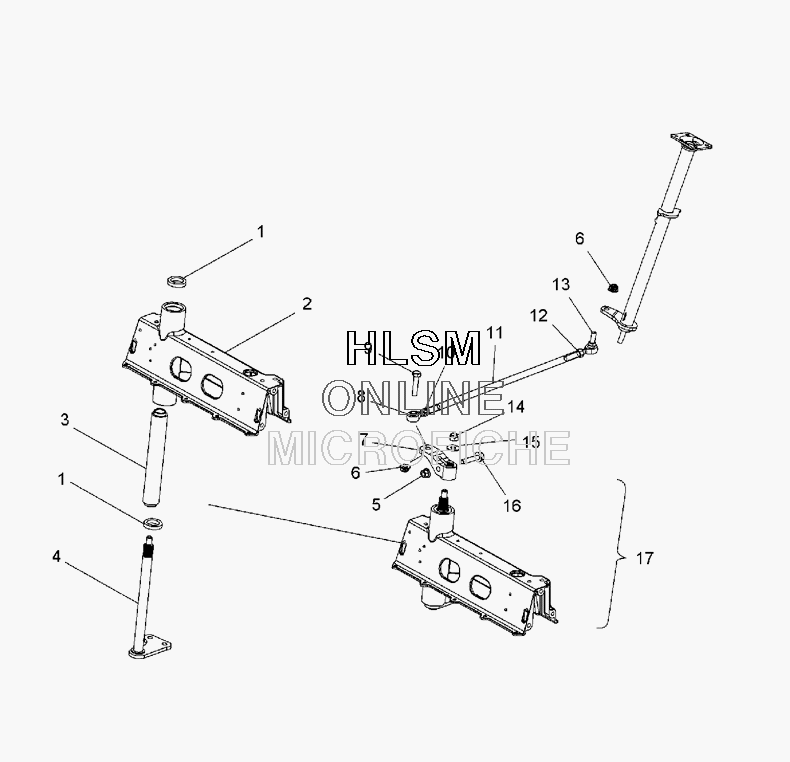

DRAG LINK для Polaris 700 TURBO SWITCHBACK (S09PR7FS) - 2009 года выпуска

№

Артикул

Название
1

3514481 BEARING-BALL #6805 2RU, 25X37MM

BEARING-BALL #6805 2RU, 25X37MM

6 030 ₽
2

5133859 CHANNEL-STRG/SHOCK

CHANNEL-STRG/SHOCK

23 920 ₽
3

5134705 SPACER-TUBE, PITMAN SPINDLE

SPACER-TUBE, PITMAN SPINDLE

6 410 ₽
4

1822947 WELD-PITMAN ARM

WELD-PITMAN ARM

43 680 ₽
5

7547180 NUT-FLANGED, 3/8-16 NYLON-Z

NUT-FLANGED, 3/8-16 NYLON-Z

630 ₽
6

7547263 NUT-3/8-24 NYLOK

NUT-3/8-24 NYLOK

150 ₽
7

5134697 ARM-STRG PITMAN, UPPER, MAN

ARM-STRG PITMAN, UPPER, MAN

23 920 ₽
8

7060166 ROD END, LEFT HAND

ROD END, LEFT HAND

9 780 ₽
9

7515540 BOLT

BOLT

630 ₽
10

7542424 NUT, LEFT HAND

NUT, LEFT HAND

150 ₽
11

5334397 ROD-DRAGLINK

ROD-DRAGLINK

5 100 ₽
12

7542401 NUT, HEX, RIGHT HAND

NUT, HEX, RIGHT HAND

110 ₽
13

7061084 ROD END-3/8-24, RIGHT HAND, LRT

ROD END-3/8-24, RIGHT HAND, LRT

9 780 ₽
14

7547066 NUT-7/16-20, NYLOK, Y

NUT-7/16-20, NYLOK, Y

460 ₽
15

7555883 WASHER

WASHER

540 ₽
16

7518354 SCR-3/8-16X1.75 FLG HX GRD5-Y

SCR-3/8-16X1.75 FLG HX GRD5-Y

460 ₽
17

1014894 LINKAGE ASSY (INCL. 1-5, 7, 14-16)

LINKAGE ASSY (INCL. 1-5, 7, 14-16)

0 ₽
