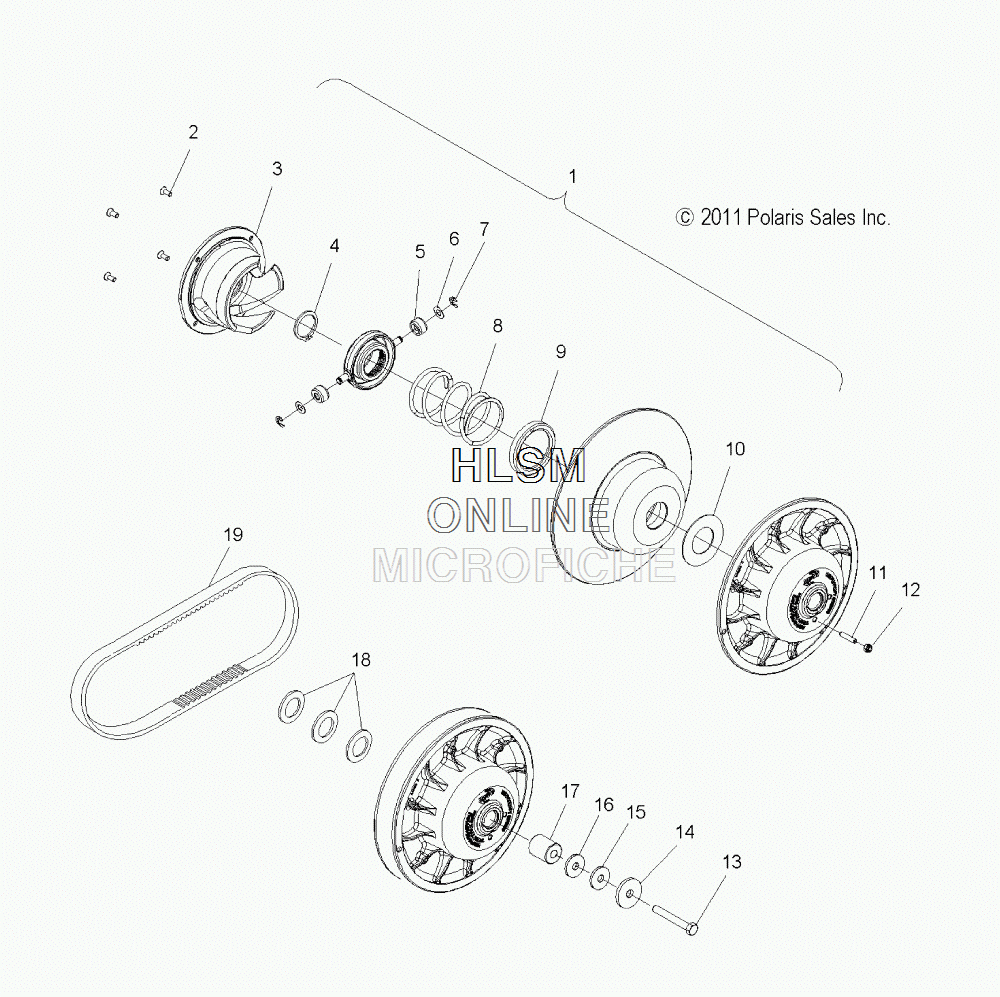

CLUTCH - SECONDARY для Polaris WIDETRAK LX INTL [S15SU4BEL] - 2015 года выпуска
![](/wa-data/public/shop/sheme/polaris/snow/6e45a8dd-8c3d-4a6a-93b2-244b3f4039cf.gif)
-
№АртикулНазвание
-
11323190 ASM., DRIVEN CLUTCH, BASIC, LWT THN (INCL. 4-7,9-12)ASM., DRIVEN CLUTCH, BASIC, LWT THN (INCL. 4-7,9-12)
-
23234381 SCREWSCREW
-
35135403 RAMP, DRIVEN 56/42/36, LWERRAMP, DRIVEN 56/42/36, LWER
-
47710583 RING, RETAININGRING, RETAINING
-
55434534 ROLLERROLLER
-
67556226 WASHER, THRUSTWASHER, THRUST
-
77710523 E-RING, RETAININGE-RING, RETAINING
-
87043363 SPRING, DRIVEN CLUTCH, BLACK/PUR, LEFT HANDSPRING, DRIVEN CLUTCH, BLACK/PUR, LEFT HAND
-
97556728 WASHER, THRUSTWASHER, THRUST
-
107556370 WASHERWASHER
-
113234228 SCREWSCREW
-
127542103 NUT, FLEXLOCNUT, FLEXLOC
-
137520030 SCREWSCREW
-
147555815 WASHER, FLATWASHER, FLAT
-
157555957 WASHER, FLATWASHER, FLAT
-
167556242 WASHER, FLATWASHER, FLAT
-
175139300 SPACER, CLUTCHSPACER, CLUTCH
-
187556509 BUSHINGBUSHING
-
193211070 BELT, DRIVEBELT, DRIVE
