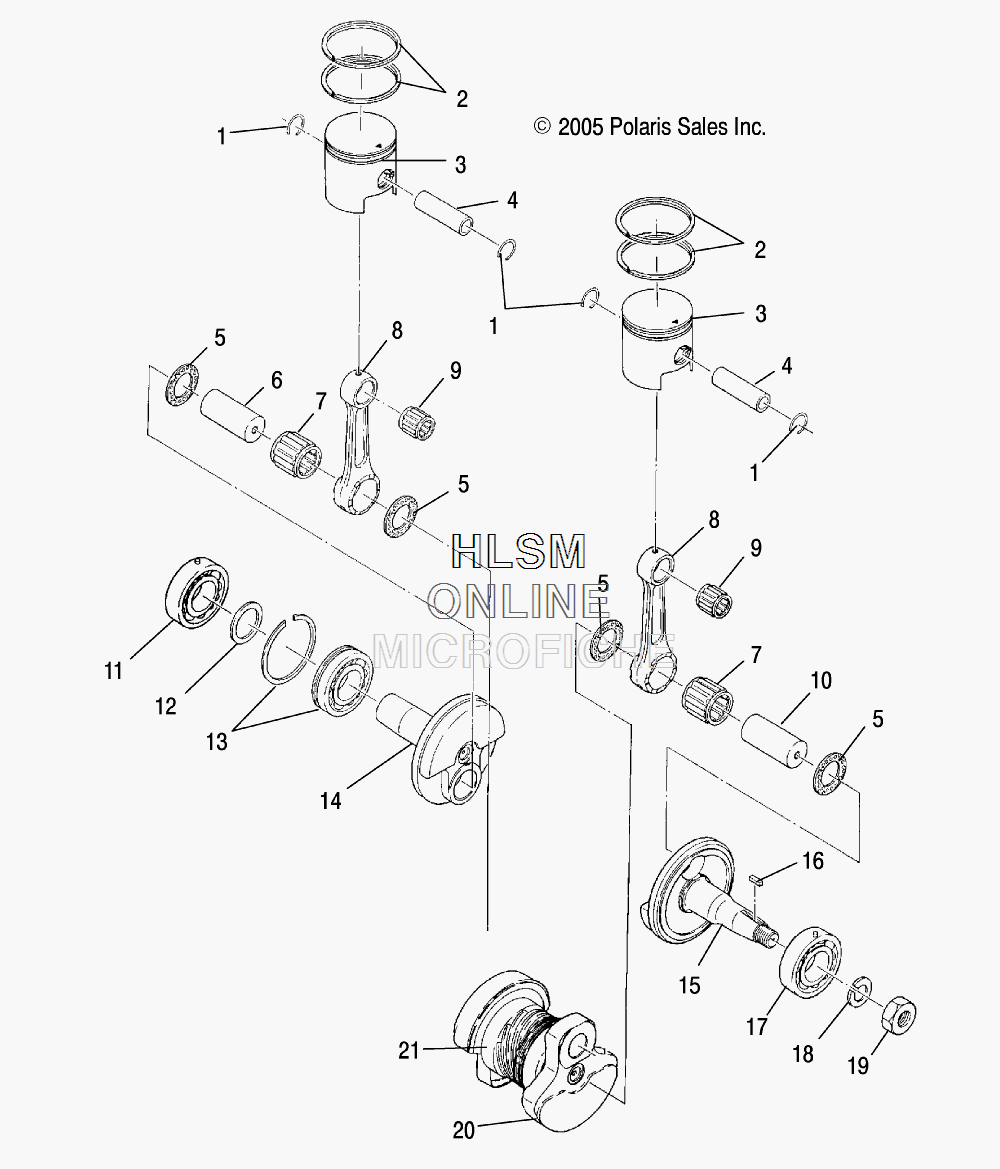

CRANKSHAFT ASSY. W/ PISTON для Polaris WIDETRAK LX INTL [S15SU4BEL] - 2015 года выпуска`
-
№АртикулНазвание
-
13083839 CLIP, PISTON PINCLIP, PISTON PIN
-
23084342 RING, PISTON, STANDARDRING, PISTON, STANDARD
-
23084343 RING, PISTON, 0.25 O/SRING, PISTON, 0.25 O/S
-
23084344 RING, PISTON, 0.50 O/SRING, PISTON, 0.50 O/S
-
33090001 PISTON, STANDARD (INCL. 1)PISTON, STANDARD (INCL. 1)
-
33090002 PISTON, 0.25 O/S (INCL. 1)PISTON, 0.25 O/S (INCL. 1)
-
33090003 PISTON, 0.50 O/S (INCL. 1)PISTON, 0.50 O/S (INCL. 1)
-
43083858 PIN, PISTONPIN, PISTON
-
53083277 SPACER, CRANK PINSPACER, CRANK PIN
-
63083456 CRANK PIN 2CRANK PIN 2
-
73085628 BEARING, END, LARGEBEARING, END, LARGE
-
83083252 ROD, CONNECTINGROD, CONNECTING
-
93083216 BEARING, END, SMALLBEARING, END, SMALL
-
103083233 CRANK PIN 1CRANK PIN 1
-
113085205 BEARING, BALLBEARING, BALL
-
123085203 SPACERSPACER
-
133085204 BEARING, BALLBEARING, BALL
-
143089531 CRANKSHAFT 3, PTO SIDECRANKSHAFT 3, PTO SIDE
-
153089530 ASM., CRANKSHAFT (INCL. 5-8,10-15,17,21,20)ASM., CRANKSHAFT (INCL. 5-8,10-15,17,21,20)
-
153086835 CRANKSHAFT 1, MAG SIDECRANKSHAFT 1, MAG SIDE
-
163081543 KEY, WOODRUFFKEY, WOODRUFF
-
173086878 BEARING, BALLBEARING, BALL
-
183083094 WASHER, SPRINGWASHER, SPRING
-
193083093 NUTNUT
-
203083713 ASM., CRANKSHAFT 2 (INCL. 6,10)ASM., CRANKSHAFT 2 (INCL. 6,10)
-
213084601 BEARING, BALLBEARING, BALL
