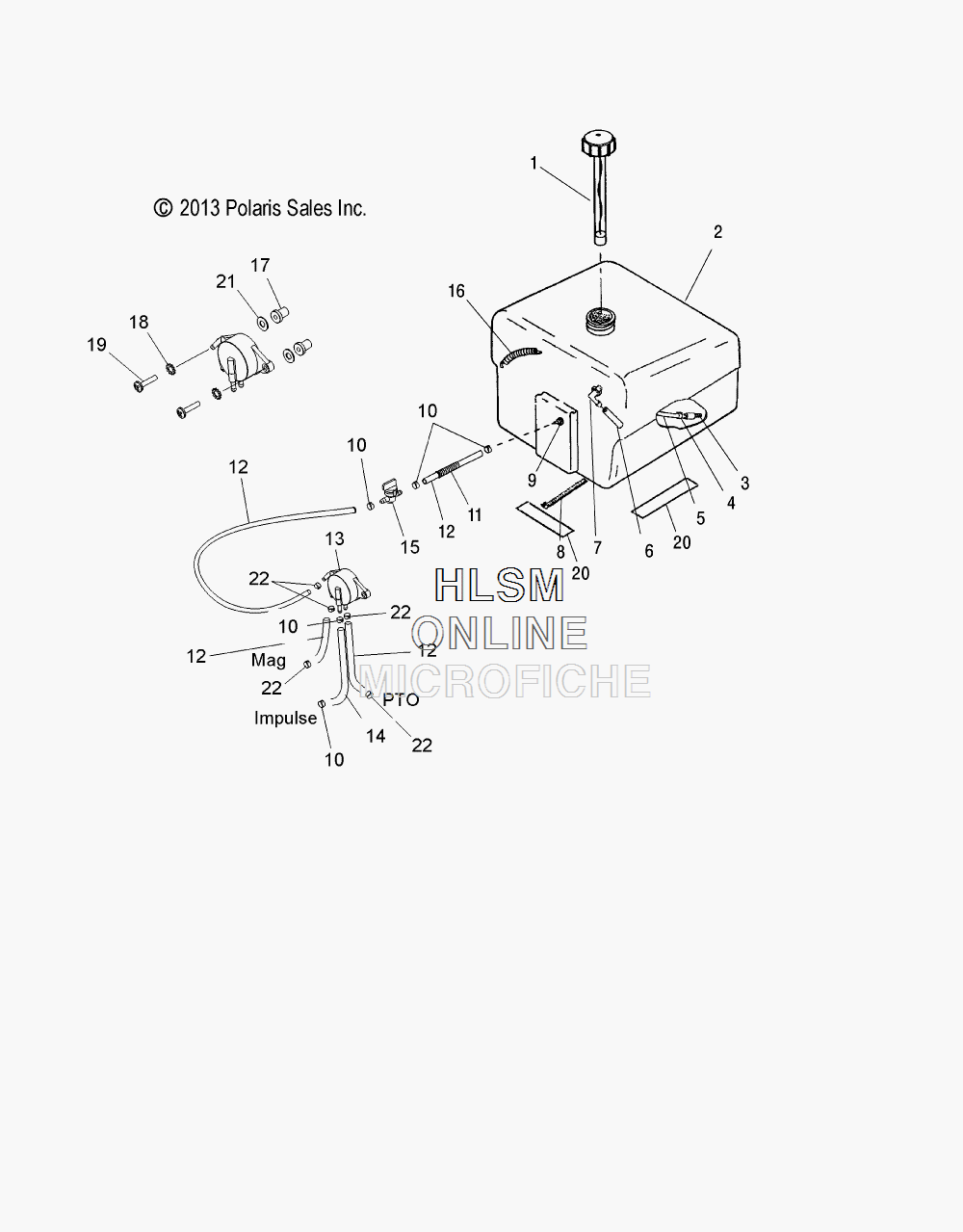

FUEL TANK W/FUEL LINES для Polaris WIDETRAK LX INTL [S15SU4BEL] - 2015 года выпуска`
-
№АртикулНазвание
-
12511246 CAP W/GAUGE, GASCAP W/GAUGE, GAS
-
15810513 GASKET, GAS CAPGASKET, GAS CAP
-
22521254 ASM., TANK, FUEL (INCL. 3-5,7,9)ASM., TANK, FUEL (INCL. 3-5,7,9)
-
37052243 PICK-UP W/FILTER, FUELPICK-UP W/FILTER, FUEL
-
47080402 RING, COMPRESSIONRING, COMPRESSION
-
58350019-600 LINE, FUELLINE, FUEL
-
68450061-600 LINE, FUELLINE, FUEL
-
77052095 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
87080804 CABLE TIE, RELEASABLECABLE TIE, RELEASABLE
-
97052023 FITTING, OUTLET, DOUBLEFITTING, OUTLET, DOUBLE
-
107080003 CLAMP, HOSECLAMP, HOSE
-
118360052-305 TUBING, CONVOLUTED (SVC)TUBING, CONVOLUTED (SVC)
-
128450117-250 LINE, FUELLINE, FUEL
-
148450040-600 LINE, FUELLINE, FUEL
-
157052248 VALVE, FUELVALVE, FUEL
-
167042020 SPRING, TANK FRONTSPRING, TANK FRONT
-
177541923 NUT, WELL, NITRILENUT, WELL, NITRILE
-
187552604 WASHER, EXTERNAL TOOTHWASHER, EXTERNAL TOOTH
-
197512222 SCREWSCREW
-
205810290 PAD, BATTERYPAD, BATTERY
-
217555843 WASHER, FLATWASHER, FLAT
-
227080558 CLAMP, HOSE, SILVERCLAMP, HOSE, SILVER
