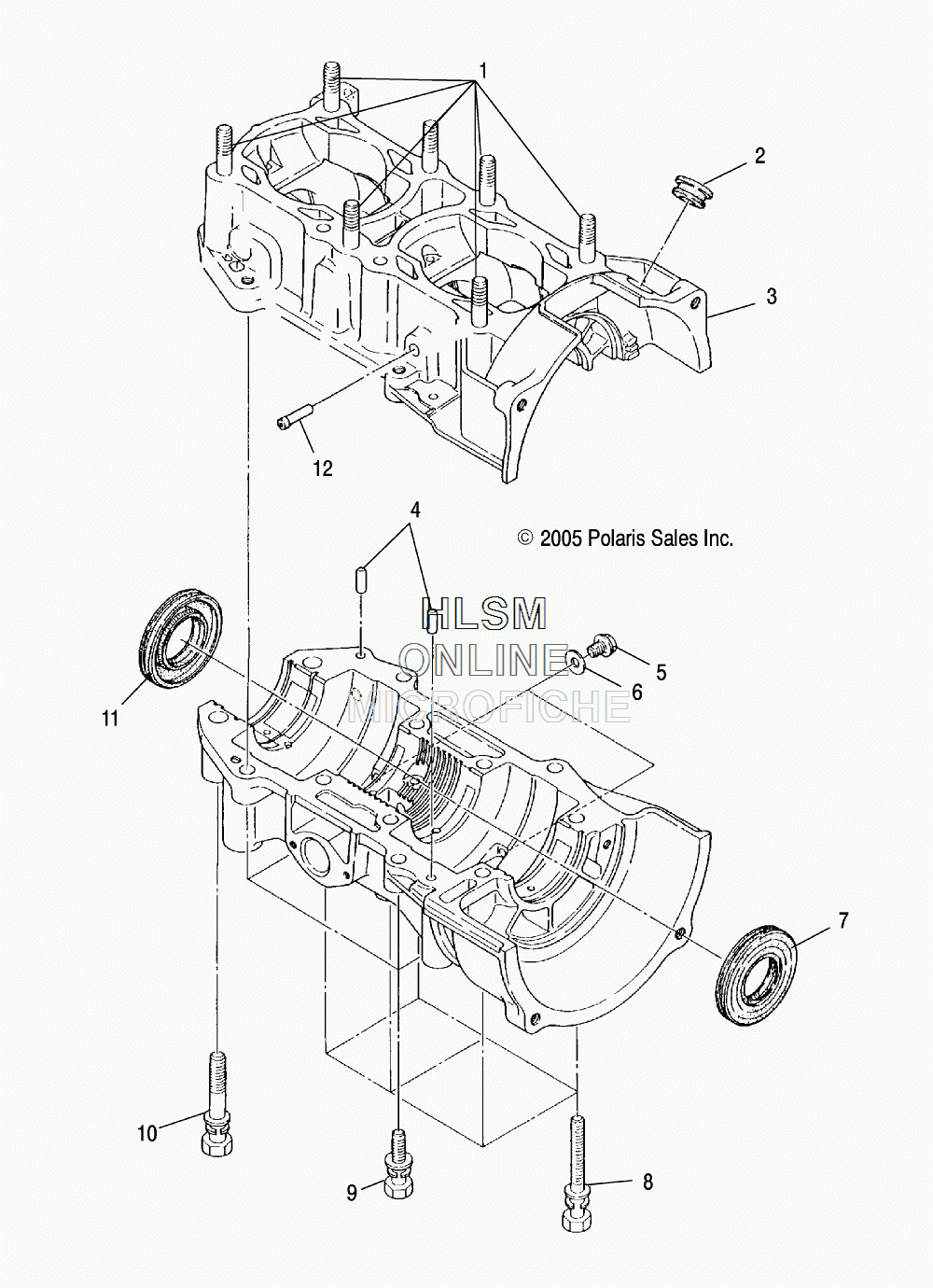

CRANKCASE ASSEMBLY для Polaris WIDETRAK LX INTL [S15SU4BEL] - 2015 года выпуска
-
№АртикулНазвание
-
13084119 STUDSTUD
-
23082875 GROMMETGROMMET
-
33086832 ASM., CRANKCASE (INCL. 1,4,8-10,12)ASM., CRANKCASE (INCL. 1,4,8-10,12)
-
43086838 PIN, DOWELPIN, DOWEL
-
53087256 BOLT, FLANGEBOLT, FLANGE
-
67555998 WASHER, FLATWASHER, FLAT
-
73086833 SEAL, OIL (MAG SIDE)SEAL, OIL (MAG SIDE)
-
83080739 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
93083078 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
103084220 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
113085200 SEAL, OIL (PTO SHAFT)SEAL, OIL (PTO SHAFT)
-
123083798 PIPE, PULSE (25MM)PIPE, PULSE (25MM)
