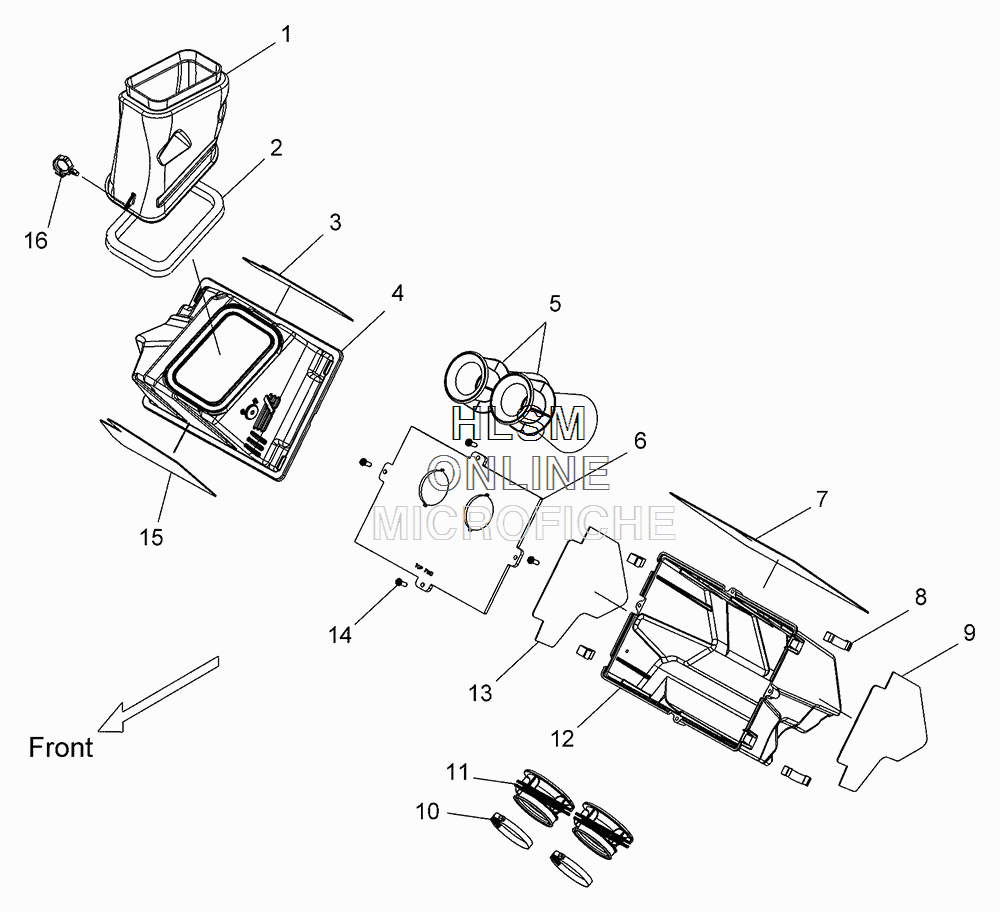

AIR INTAKE SYSTEM для Polaris 800 SWITCHBACK ASSULT [S16CW8] - 2016 года выпуска
-
№АртикулНазвание
-
11204587 ASM., TUBE, INTAKE (INCL. SCREWS)ASM., TUBE, INTAKE (INCL. SCREWS)
-
17518577 SCREWSCREW
-
25813504 FOAM, AIRBOX SEALFOAM, AIRBOX SEAL
-
35813546 BARRIER, AIRBOX, REAR, TOPBARRIER, AIRBOX, REAR, TOP
-
45439043 AIRBOX, UPPER, LEAIRBOX, UPPER, LE
-
55438303 TUBE, INTAKETUBE, INTAKE
-
65813641 PLATE, INTAKEPLATE, INTAKE
-
75813544 BARRIER, AIRBOX, BACKBARRIER, AIRBOX, BACK
-
85242044 CLIP, AIRBOXCLIP, AIRBOX
-
95813547 BARRIER, AIRBOX LEFTBARRIER, AIRBOX LEFT
-
107080909 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
115413741 BOOT, THROTTLE BODYBOOT, THROTTLE BODY
-
121204440 ASM., AIR SILENCER (INCL. 8,11)ASM., AIR SILENCER (INCL. 8,11)
-
135813655 BARRIER, AIRBOX RIGHTBARRIER, AIRBOX RIGHT
-
147518577 SCREWSCREW
-
155813721 BARRIER, AIRBOX, FRONT, TOPBARRIER, AIRBOX, FRONT, TOP
-
164020139 CLIP, ROSEBUDCLIP, ROSEBUD
