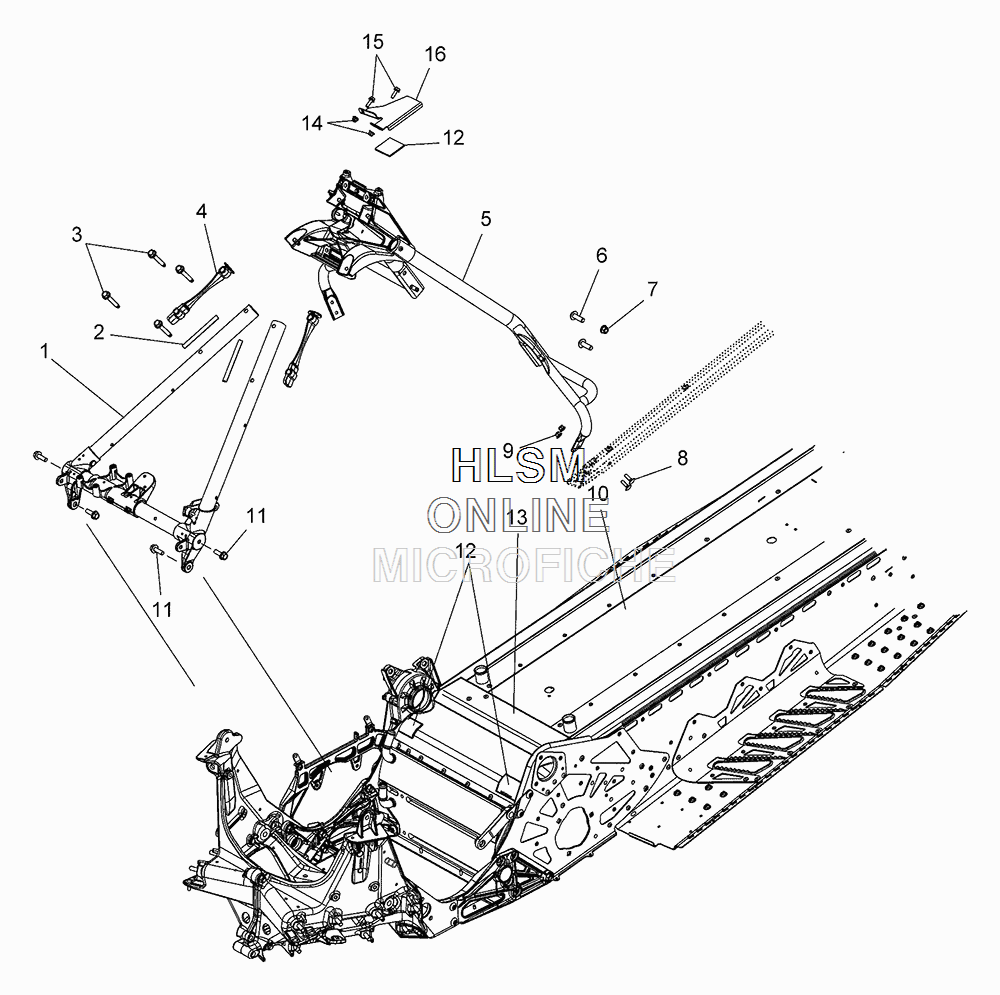

CHASSIS ASSEMBLY W/ OVER STRUCTURE для Polaris 800 SWITCHBACK ASSULT [S16CW8] - 2016 года выпуска
-
№АртикулНазвание
-
11019548 ASM., FRAME, TUBULAR, FRONTASM., FRAME, TUBULAR, FRONT
-
25521697-350 SEAL, BULB (BULK SVC)SEAL, BULB (BULK SVC)
-
37519245 SCREWSCREW
-
45632200 SPACER, TUBE CASTSPACER, TUBE CAST
-
51017701 ASM., FRAME, TUBULAR, REARASM., FRAME, TUBULAR, REAR
-
67518906 SCREWSCREW
-
77547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
87519338 BOLT, CARRIAGEBOLT, CARRIAGE
-
97547487 NUTNUT
-
102205106-1361 KIT, CHASSIS, 144 INCH, SVC, NATURAL/MATTE BLACK (INCL. BULKHEAD)KIT, CHASSIS, 144 INCH, SVC, NATURAL/MATTE BLACK (INCL. BULKHEAD)
-
101019587-1361 ASM., TUNNEL, 144 INCH, SVC, NATURAL/MATTE BLACK (INCL. TUNNEL COOLER)ASM., TUNNEL, 144 INCH, SVC, NATURAL/MATTE BLACK (INCL. TUNNEL COOLER)
-
102205106-458 KIT, CHASSIS, 144 INCH, MATTE BLACK (SNOW CHECK) (INCL. BULKHEAD)KIT, CHASSIS, 144 INCH, MATTE BLACK (SNOW CHECK) (INCL. BULKHEAD)
-
101019587-458 ASM., TUNNEL, 144 INCH, SVC, MATTE BLACK (SNOW CHECK) (INCL. TUNNEL COOLER)ASM., TUNNEL, 144 INCH, SVC, MATTE BLACK (SNOW CHECK) (INCL. TUNNEL COOLER)
-
117519243 SCREWSCREW
-
125813593 PAD, 5X5CMPAD, 5X5CM
-
135813752 PAD, 7.6X41CMPAD, 7.6X41CM
-
147547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
157518613 BOLTBOLT
-
165254367 BRACKET, FUEL TANKBRACKET, FUEL TANK
