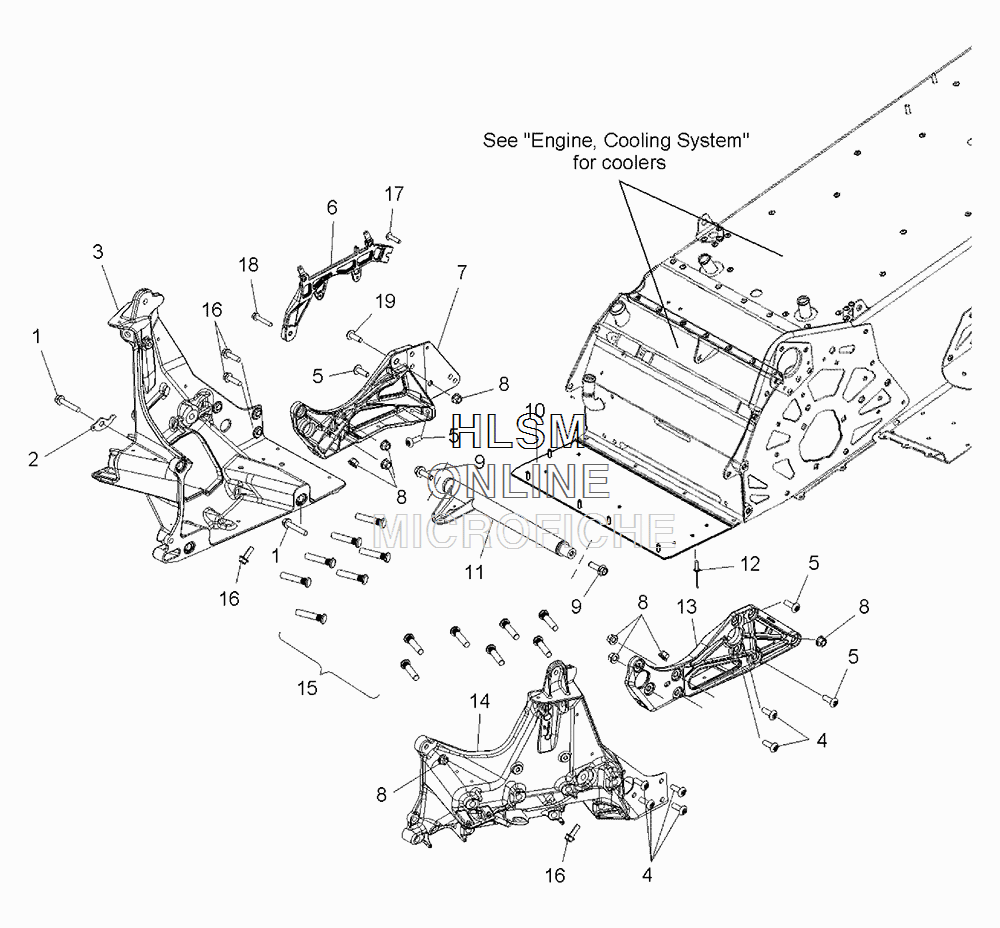

BULKHEAD ASSEMBLY для Polaris 800 SWITCHBACK ASSULT [S16CW8] - 2016 года выпуска
-
№АртикулНазвание
-
-2204400 KIT, LORD, 406, 50 ML CARTRIDGE (ADHESIVE)KIT, LORD, 406, 50 ML CARTRIDGE (ADHESIVE)
-
-2204171 KIT, LORD, 406 REPAIR KIT, 50 ML (ADHESIVE)KIT, LORD, 406 REPAIR KIT, 50 ML (ADHESIVE)
-
-2204172 KIT, LORD, MIX NOZZLES, 12 PIECEKIT, LORD, MIX NOZZLES, 12 PIECE
-
17516732 SCREWSCREW
-
25252680 BRACKET, PIPE/CHASSISBRACKET, PIPE/CHASSIS
-
31018520 ASM., CLIP W/STUD, RIGHT HAND (INCL. 15) (REQUIRES ADHESIVE)ASM., CLIP W/STUD, RIGHT HAND (INCL. 15) (REQUIRES ADHESIVE)
-
47519070 SCREWSCREW
-
57518906 SCREWSCREW
-
61017804 ASM., MOUNT, RESONATORASM., MOUNT, RESONATOR
-
75138693 BRACE, LOWER, RIGHT HAND (REQUIRES ADHESIVE)BRACE, LOWER, RIGHT HAND (REQUIRES ADHESIVE)
-
87547332 NUTNUT
-
97518934 SCREWSCREW
-
105251891 FLOOR, BULKHEADFLOOR, BULKHEAD
-
111020061 CROSS TUBE, UPPER CONTROL ARMCROSS TUBE, UPPER CONTROL ARM
-
127661637 RIVETRIVET
-
131017942 ASM., BRACE, LOWER, LEFT HAND (REQUIRES ADHESIVE) (INCL. SLEEVE)ASM., BRACE, LOWER, LEFT HAND (REQUIRES ADHESIVE) (INCL. SLEEVE)
-
141018519 ASM., CLIP W/STUD, LEFT HAND (INCL. 15) (REQUIRES ADHESIVE)ASM., CLIP W/STUD, LEFT HAND (INCL. 15) (REQUIRES ADHESIVE)
-
157519204 STUDSTUD
-
167519243 SCREWSCREW
-
177519049 SCREWSCREW
-
187519052 SCREWSCREW
-
197518953 SCREWSCREW
