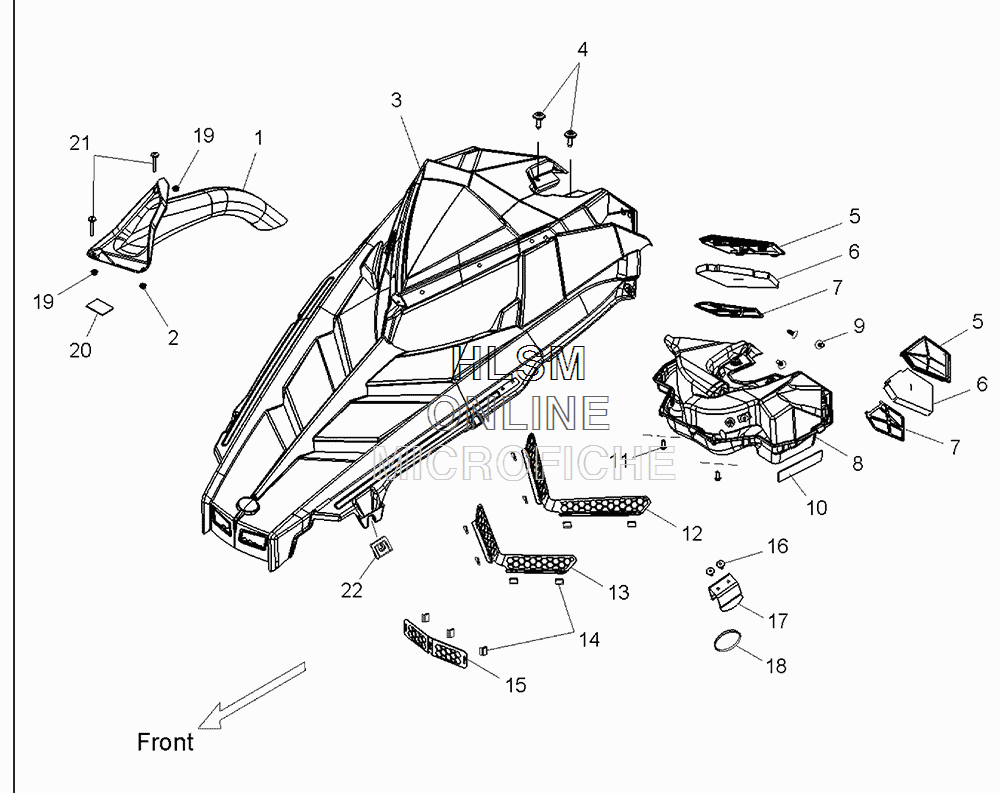

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 800 SWITCHBACK ASSULT [S16CW8] - 2016 года выпуска
-
№АртикулНазвание
-
15437519 DUCT, BRAKEDUCT, BRAKE
-
27670135 NUT, SPEEDNUT, SPEED
-
35437509-070 HOOD, MOLDED BLACK (ALSO ORDER 2634151)HOOD, MOLDED BLACK (ALSO ORDER 2634151)
-
35438620-666 HOOD, RUSH, PNTD BLACK PEARL (SNOW CHECK) (ALSO ORDER 2634151)HOOD, RUSH, PNTD BLACK PEARL (SNOW CHECK) (ALSO ORDER 2634151)
-
32634151 KIT, HOOD FOAM/FABRIC (SEE BODY, HOOD FOAM/FABRIC PAGE FOR DETAILS)KIT, HOOD FOAM/FABRIC (SEE BODY, HOOD FOAM/FABRIC PAGE FOR DETAILS)
-
47519112 SCREWSCREW
-
55437835 VENT, INTAKE LEFTVENT, INTAKE LEFT
-
55437836 VENT, INTAKE RIGHTVENT, INTAKE RIGHT
-
65813630 FOAM, FILTER INLETFOAM, FILTER INLET
-
75813467 BACKER, INTAKE VENTBACKER, INTAKE VENT
-
82633701 ASM., PLENUM, INTAKEASM., PLENUM, INTAKE
-
97670090 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
105813605 FOAM W/PSAFOAM W/PSA
-
117517441 SCREWSCREW
-
125252666-067 SCREEN, HOOD CENTER, REAR, BLACKSCREEN, HOOD CENTER, REAR, BLACK
-
135252665-067 SCREEN, HOOD CENTER, MIDDLE, BLACKSCREEN, HOOD CENTER, MIDDLE, BLACK
-
147670040 FASTENER, U-TYPE CLIPFASTENER, U-TYPE CLIP
-
155252664-067 SCREEN, HOOD CENTER, FRONT, BLACKSCREEN, HOOD CENTER, FRONT, BLACK
-
167621467 RIVETRIVET
-
175222769 CLIP, BELT RETAINERCLIP, BELT RETAINER
-
185414211 O-RINGO-RING
-
197547427 NUTNUT
-
205813349 FABRIC, PATCHFABRIC, PATCH
-
217519311 SCREWSCREW
-
227710630 CLIPCLIP
