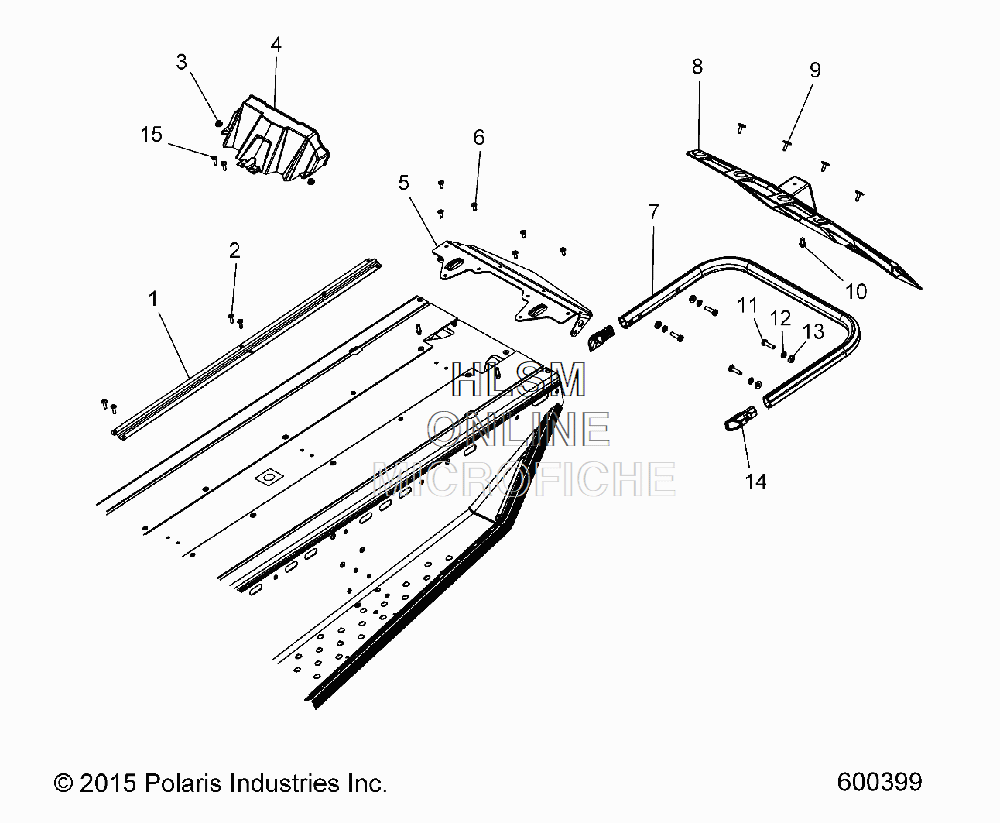

BUMPER - REAR W/SNOWFLAP AND TAILLIGHT для Polaris 550 INDY (S18CBA5BSA) - 2018 года выпуска
-
№АртикулНазвание
-
15251057 COVER, TAILLIGHT HARNESSCOVER, TAILLIGHT HARNESS
-
27661637 RIVETRIVET
-
37547427 NUTNUT
-
45452369-070 COVER, TAILLIGHT, BLACKCOVER, TAILLIGHT, BLACK
-
51018352 ASM-CLOSEOFF REAR W/CLNCHSTUDSASM-CLOSEOFF REAR W/CLNCHSTUDS
-
67661973 RIVETRIVET
-
72634228-309 ASSY., BUMPER, REARASSY., BUMPER, REAR
-
85438788-070 FLAP, SNOW, BLACKFLAP, SNOW, BLACK
-
97621467 RIVETRIVET
-
107519092 SCREWSCREW
-
117519248 SCREWSCREW
-
127552801 WASHER, LOCKWASHER, LOCK
-
137556588 WASHERWASHER
-
145439655 PLUG, BUMPERPLUG, BUMPER
-
157621433 RIVET, BLACKRIVET, BLACK
Все узлы модели:
- AIR BOX
- AIR INLET AND OUTLET DUCTS
- BODY- SEAT ASSY.
- BRAKE ASSEMBLY
- BULKHEAD ASSEMBLY
- BUMPER - FRONT
- • BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CARBURETOR W/CHOKE
- CHAINCASE ASSEMBLY
- CHASSIS ASSEMBLY W/ OVER STRUCTURE
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/FOOTREST
- CONSOLE
- CONTROL ARMS W/SPINDLE
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- DRIVESHAFT W/JACKSHAFT
- ELECTRICAL - BATTERY BOX
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SWITCHES AND COMPONENTS
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FENDERS W/ SIDE PANELS
- FUEL PUMP
- FUEL PUMP W/LINES
- FUEL TANK
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/SEAL
- HOOD ASSEMBLY
- MULTI-FUNCTION GAUGE
- NOSEPAN ASSEMBLY
- OIL PUMP
- OIL TANK
- RECOIL STARTER W/BLOWER HOUSING
- SHOCK - FRONT
- SKI ASSEMBLY
- STARTER MOTOR
- STEERING - H-BAR- STEERING POST- AND TIE RODS
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR W/ TRACK
- THROTTLE CONTROL ASSEMBLY
- TOOL KIT W/OWNERS MANUAL
- WINDSHIELD
- WIRING HARNESS
