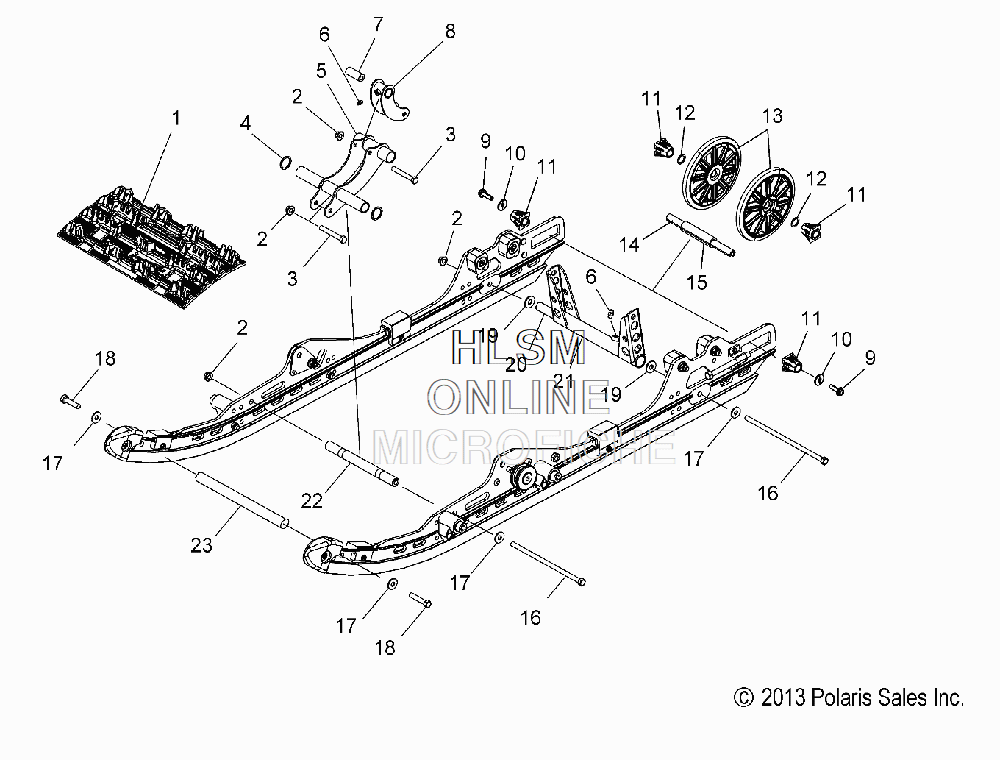

SUSPENSION - REAR W/ TRACK для Polaris 550 INDY (S18CBA5BSA) - 2018 года выпуска
-
№АртикулНазвание
-
15222840 CLIP, GUIDECLIP, GUIDE
-
12877377 KIT, TRACK, 1.352 INCH COBRA (INTL)KIT, TRACK, 1.352 INCH COBRA (INTL)
-
15412281 TRACK, .91 INCH SHOCKWAVETRACK, .91 INCH SHOCKWAVE
-
27547263 NUT, NYLOKNUT, NYLOK
-
37515417 SCREWSCREW
-
47556509 BUSHINGBUSHING
-
51543124-329 BRACKET, H, BLACKBRACKET, H, BLACK
-
67080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
75337829 SLEEVE, SHOCK PIVOTSLEEVE, SHOCK PIVOT
-
81543125-329 PIVOT, SHOCKPIVOT, SHOCK
-
97517731 BOLTBOLT
-
107556130 WASHERWASHER
-
115432535 SPACER, IDLERSPACER, IDLER
-
127555918 BUSHINGBUSHING
-
137710444 RING, RETAININGRING, RETAINING
-
133514384 BEARINGBEARING
-
131590459 ASSY., WHEEL, IDLER, BLACKASSY., WHEEL, IDLER, BLACK
-
145335232 SHAFT, IDLERSHAFT, IDLER
-
155333283 SPACER, IDLER, LONGSPACER, IDLER, LONG
-
167517921 SCREWSCREW
-
177556188 WASHER, FLATWASHER, FLAT
-
187518005 SCREWSCREW
-
197555893 WASHER, FLATWASHER, FLAT
-
205333404 SHAFTSHAFT
-
211541928-067 ARM, PIVOT, REAR, BLACKARM, PIVOT, REAR, BLACK
-
225134517 SHAFTSHAFT
-
235134078 SHAFTSHAFT
Все узлы модели:
- AIR BOX
- AIR INLET AND OUTLET DUCTS
- BODY- SEAT ASSY.
- BRAKE ASSEMBLY
- BULKHEAD ASSEMBLY
- BUMPER - FRONT
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CARBURETOR W/CHOKE
- CHAINCASE ASSEMBLY
- CHASSIS ASSEMBLY W/ OVER STRUCTURE
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/FOOTREST
- CONSOLE
- CONTROL ARMS W/SPINDLE
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- DRIVESHAFT W/JACKSHAFT
- ELECTRICAL - BATTERY BOX
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SWITCHES AND COMPONENTS
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FENDERS W/ SIDE PANELS
- FUEL PUMP
- FUEL PUMP W/LINES
- FUEL TANK
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/SEAL
- HOOD ASSEMBLY
- MULTI-FUNCTION GAUGE
- NOSEPAN ASSEMBLY
- OIL PUMP
- OIL TANK
- RECOIL STARTER W/BLOWER HOUSING
- SHOCK - FRONT
- SKI ASSEMBLY
- STARTER MOTOR
- STEERING - H-BAR- STEERING POST- AND TIE RODS
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- • SUSPENSION - REAR W/ TRACK
- THROTTLE CONTROL ASSEMBLY
- TOOL KIT W/OWNERS MANUAL
- WINDSHIELD
- WIRING HARNESS
