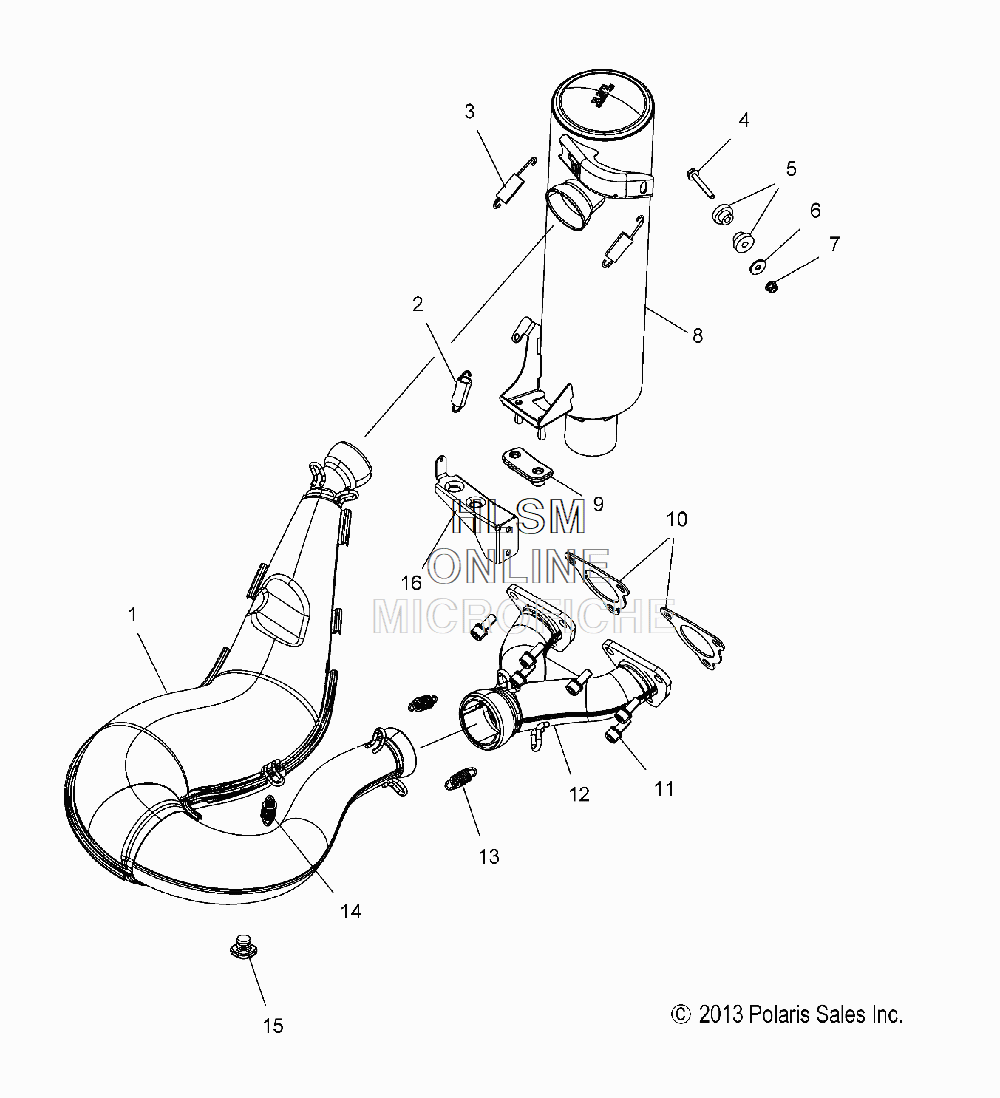

EXHAUST SYSTEM для Polaris 550 INDY (S18CBA5BSA) - 2018 года выпуска
-
№АртикулНазвание
-
11262261 ASSY., TUNED PIPEASSY., TUNED PIPE
-
27041687 SPRING, EXHAUSTSPRING, EXHAUST
-
37042029 SPRING, EXHAUSTSPRING, EXHAUST
-
47519257 SCREWSCREW
-
55410584 BUSHING, MOUNTBUSHING, MOUNT
-
67555935 WASHERWASHER
-
77547339 NUTNUT
-
81262262-029 RESONATOR, BLACKRESONATOR, BLACK
-
95414481 MOUNT, RUBBER, BOTTOMMOUNT, RUBBER, BOTTOM
-
103085714 GASKET, EXHAUSTGASKET, EXHAUST
-
117517555 SCREW, SEMSSCREW, SEMS
-
121262280-029 MANIFOLD, BLACKMANIFOLD, BLACK
-
137043726 SPRING, EXHAUSTSPRING, EXHAUST
-
147043727 SPRING, EXHAUST, SSSPRING, EXHAUST, SS
-
155413640 MOUNT, PIPE, RUBBERMOUNT, PIPE, RUBBER
-
165255064 BRACKET., LOWER SUPPORT, RESONATORBRACKET., LOWER SUPPORT, RESONATOR
Все узлы модели:
- AIR BOX
- AIR INLET AND OUTLET DUCTS
- BODY- SEAT ASSY.
- BRAKE ASSEMBLY
- BULKHEAD ASSEMBLY
- BUMPER - FRONT
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CARBURETOR W/CHOKE
- CHAINCASE ASSEMBLY
- CHASSIS ASSEMBLY W/ OVER STRUCTURE
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/FOOTREST
- CONSOLE
- CONTROL ARMS W/SPINDLE
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- DRIVESHAFT W/JACKSHAFT
- ELECTRICAL - BATTERY BOX
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SWITCHES AND COMPONENTS
- ENGINE MOUNTING W/ SHORT BLOCK
- • EXHAUST SYSTEM
- FENDERS W/ SIDE PANELS
- FUEL PUMP
- FUEL PUMP W/LINES
- FUEL TANK
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/SEAL
- HOOD ASSEMBLY
- MULTI-FUNCTION GAUGE
- NOSEPAN ASSEMBLY
- OIL PUMP
- OIL TANK
- RECOIL STARTER W/BLOWER HOUSING
- SHOCK - FRONT
- SKI ASSEMBLY
- STARTER MOTOR
- STEERING - H-BAR- STEERING POST- AND TIE RODS
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR W/ TRACK
- THROTTLE CONTROL ASSEMBLY
- TOOL KIT W/OWNERS MANUAL
- WINDSHIELD
- WIRING HARNESS
