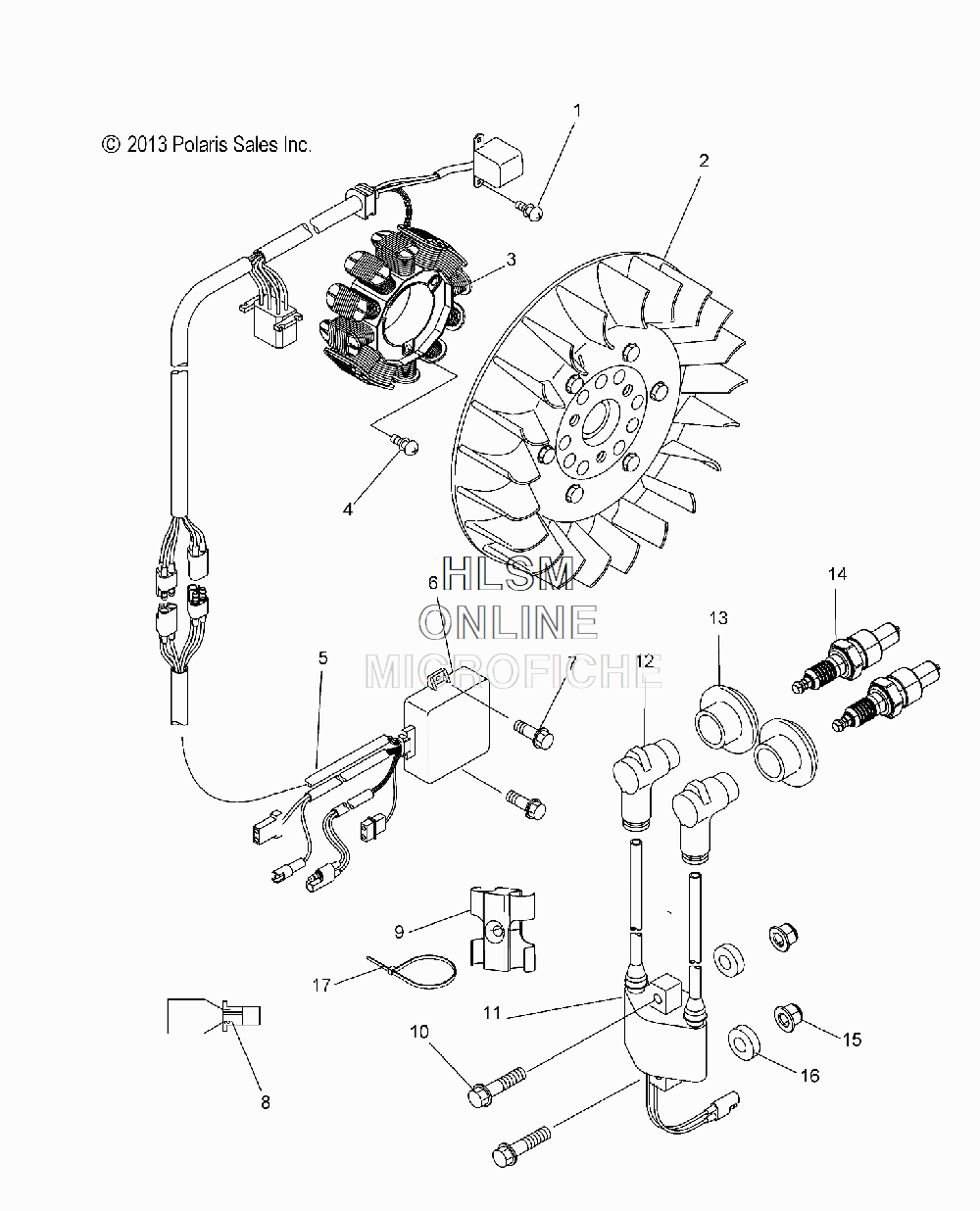

ELECTRICAL - IGNITION SYSTEM для Polaris 550 INDY (S18CBA5BSA) - 2018 года выпуска
-
№АртикулНазвание
-
13085698 ASSY., SCREW AND WASHERASSY., SCREW AND WASHER
-
23089938 FLYWHEELFLYWHEEL
-
33090362 STATORSTATOR
-
43085697 ASSY., SCREW AND WASHERASSY., SCREW AND WASHER
-
53090378 HARNESS UNITHARNESS UNIT
-
63090418 CDICDI
-
77519145 SCREWSCREW
-
82461060 JUMPER, STUBBER, E/R W/ESJUMPER, STUBBER, E/R W/ES
-
97080816 CLIP-T, DUALCLIP-T, DUAL
-
107518612 SCR-HXFL-M6X1.0X35 8.8 ZODSCR-HXFL-M6X1.0X35 8.8 ZOD
-
113090363 ASSY., COIL, IGNITION (INCL. 12)ASSY., COIL, IGNITION (INCL. 12)
-
123086976 CAP, SPARK PLUGCAP, SPARK PLUG
-
133090389 CAP, SPARK PLUGCAP, SPARK PLUG
-
143070163 SPARK, PLUG, BR9ESSPARK, PLUG, BR9ES
-
157547339 NUTNUT
-
167555932 WASHER, NYLONWASHER, NYLON
-
177080138 CABLE TIECABLE TIE
