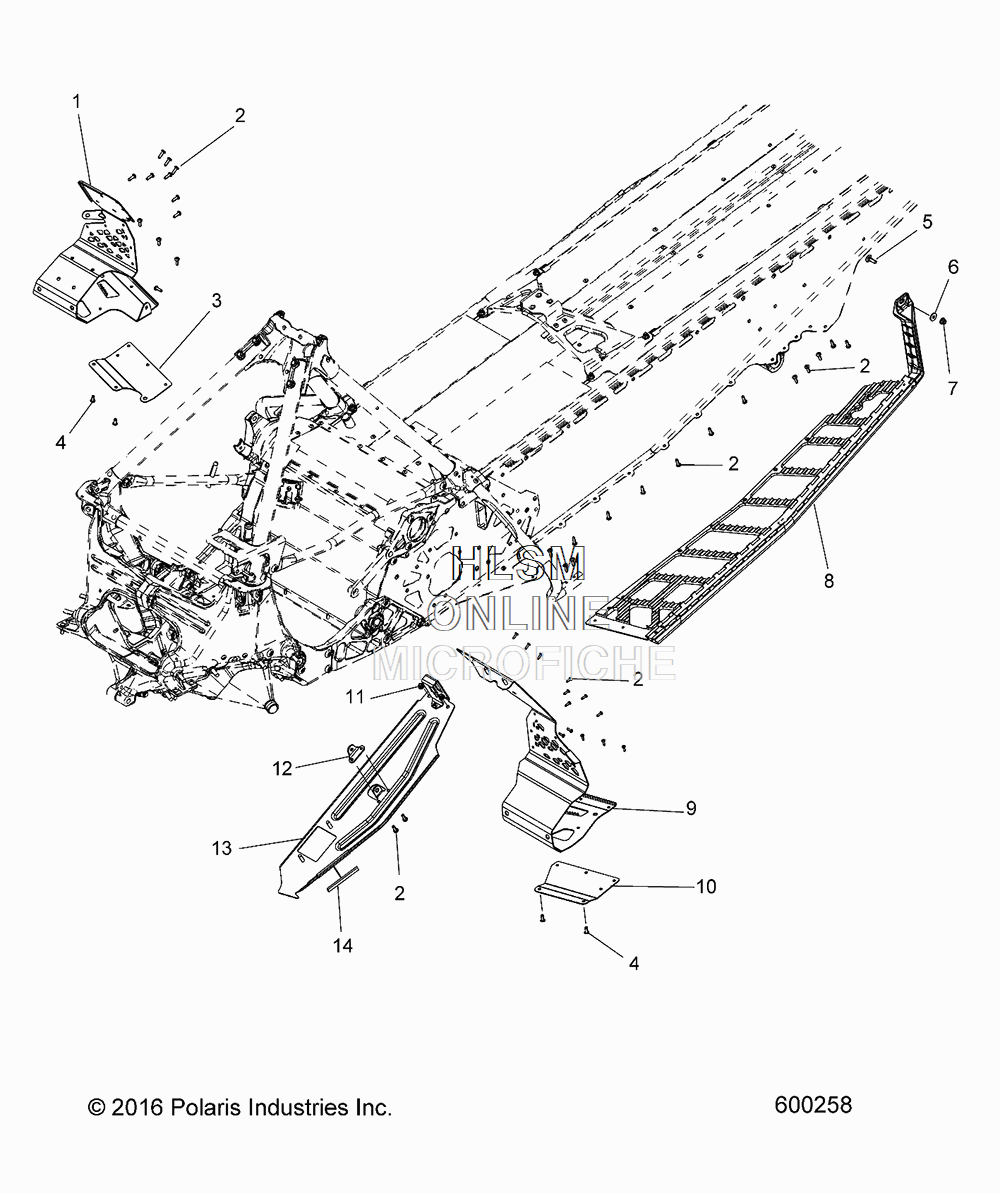

CLUTCH GUARD W/FOOTREST для Polaris 600 VOYAGEUR 144 ES (S18EEF6PSL) - 2018 года выпуска
-
№АртикулНазвание
-
15256784 FOOTREST, RIGHT HAND, NATURALFOOTREST, RIGHT HAND, NATURAL
-
27661637 RIVETRIVET
-
31021543 ASM.-SUPPORT-FOOTREST, RIGHT HANDASM.-SUPPORT-FOOTREST, RIGHT HAND
-
47661973 RIVET-4.8MM DIA-1.5-6.0 GRIPRIVET-4.8MM DIA-1.5-6.0 GRIP
-
57518994 SCREW, RIGHT HAND CARRIAGESCREW, RIGHT HAND CARRIAGE
-
67556064 WASHERWASHER
-
77547453 NUT, HXFL NYLNUT, HXFL NYL
-
81021259 ASM.-RUNNING BOARD, LEFT HAND, NATURALASM.-RUNNING BOARD, LEFT HAND, NATURAL
-
81021260 ASM.-RUNNING BOARD, RIGHT HAND, NATURALASM.-RUNNING BOARD, RIGHT HAND, NATURAL
-
91019139 ASM., FOOTREST, LEFT HAND, NATURALASM., FOOTREST, LEFT HAND, NATURAL
-
105261060 SUPPORT-FOOTREST, LEFT HANDSUPPORT-FOOTREST, LEFT HAND
-
117547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
125262013 BRKT., OIL BOTTLEBRKT., OIL BOTTLE
-
131022101 ASM., GUARD, CLUTCH (INCL. 2, 12, 14)ASM., GUARD, CLUTCH (INCL. 2, 12, 14)
-
148360176 EDGE TRIM 130MMEDGE TRIM 130MM
