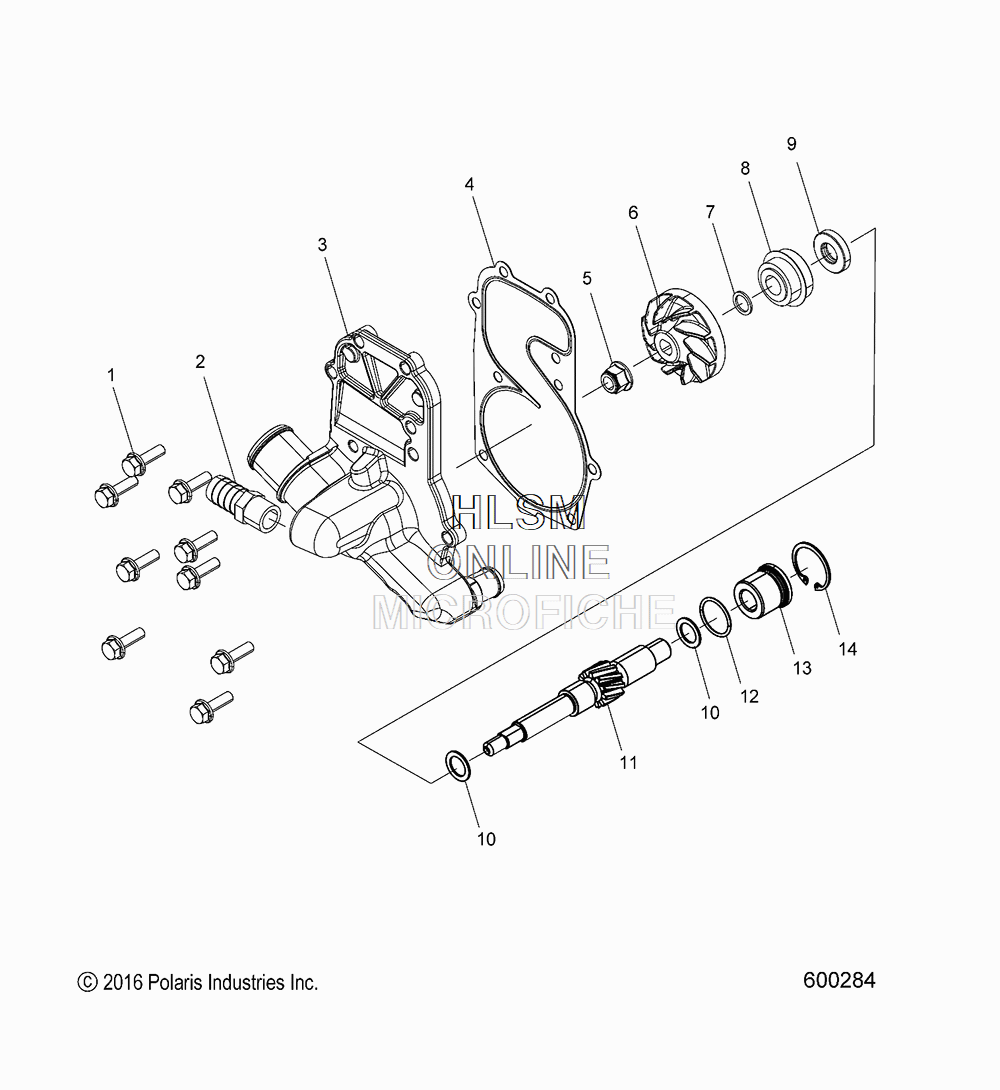

WATER PUMP для Polaris 600 VOYAGEUR 144 ES (S18EEF6PSL) - 2018 года выпуска
-
№АртикулНазвание
-
17516822 SCREWSCREW
-
27052657 FITTING-3/8NPT, 5/8ID BL2020FITTING-3/8NPT, 5/8ID BL2020
-
35140301 COVER, WATER PUMP 600, INT FC FITTINGCOVER, WATER PUMP 600, INT FC FITTING
-
45811601 GASKET, WATER PUMP COVERGASKET, WATER PUMP COVER
-
57547332 NUT, NYLOK, FLANGENUT, NYLOK, FLANGE
-
65436648 IMPELLERIMPELLER
-
77556584 WASHER, FLATWASHER, FLAT
-
83610067 SEALSEAL
-
95411197 SEALSEAL
-
107555977 WASHER, THRUSTWASHER, THRUST
-
115138488 SHAFT, GEAR, WP DRIVESHAFT, GEAR, WP DRIVE
-
125412942 O-RINGO-RING
-
135138487 BEARING, PUMP SHAFT, BLINDBEARING, PUMP SHAFT, BLIND
-
147710718 RING, RETAININGRING, RETAINING
