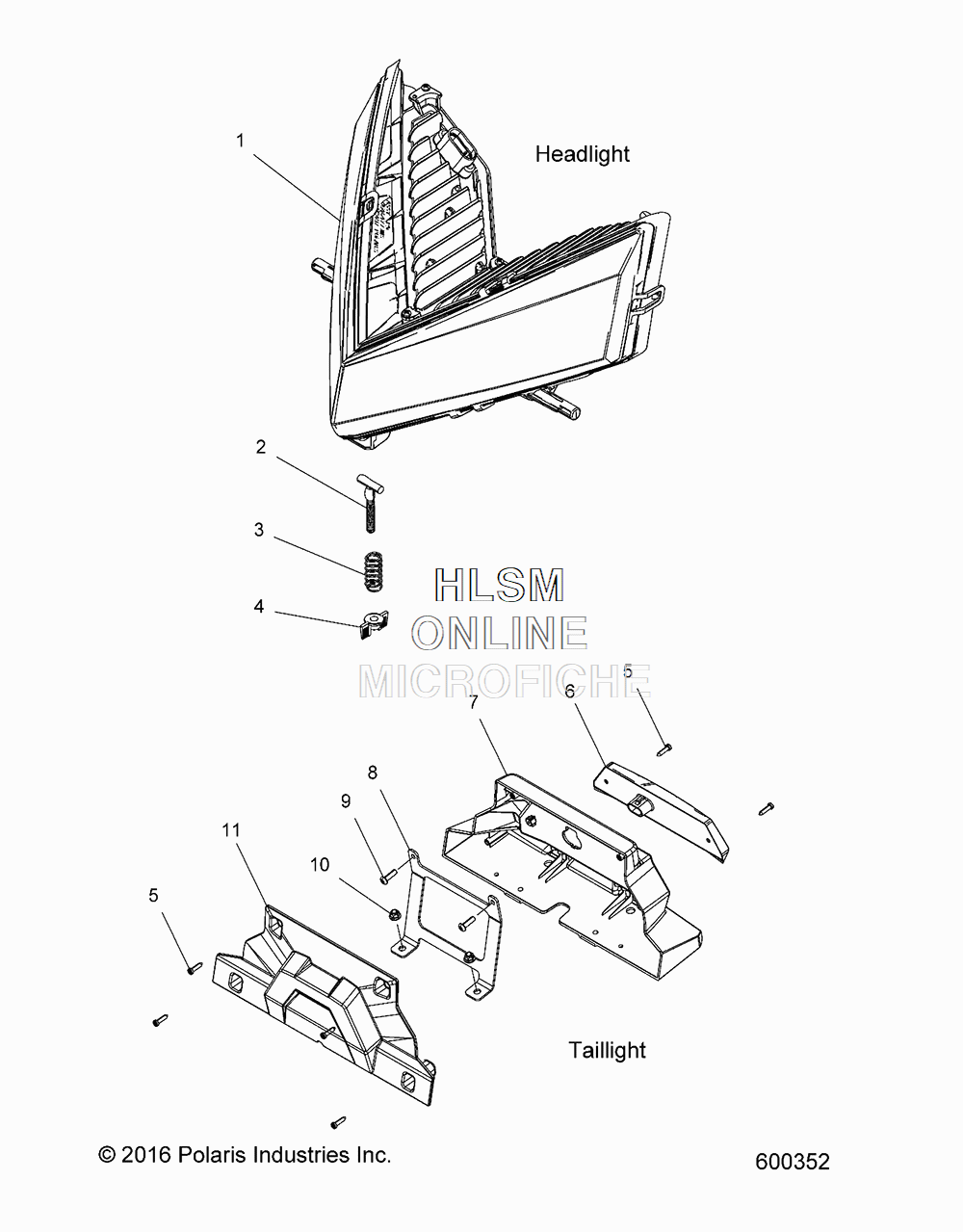

HEADLIGHT AND TAILLIGHT для Polaris 600 VOYAGEUR 144 ES (S18EEF6PSL) - 2018 года выпуска
-
№АртикулНазвание
-
12413615 ASM., HEADLIGHT, LEDASM., HEADLIGHT, LED
-
27519990 BOLT, TEE ADJUSTERBOLT, TEE ADJUSTER
-
37044235 SPRING, HEADLIGHT, ADJUST, 31.75MMSPRING, HEADLIGHT, ADJUST, 31.75MM
-
47080887 KNOB, HEADLIGHT ADJUSTKNOB, HEADLIGHT ADJUST
-
57517790 SCREW, #10 HI/LO PNSCREW, #10 HI/LO PN
-
62411099 ASM-TAILLIGHTASM-TAILLIGHT
-
75450837-070 SUPPORT-HOUSING, TAILLIGHT, BLACKSUPPORT-HOUSING, TAILLIGHT, BLACK
-
85258881 BRKT-TAILLIGHT REINFORCEBRKT-TAILLIGHT REINFORCE
-
97518616 BOLT-M6 PH/TXBOLT-M6 PH/TX
-
107547339 NUT-M6 FLG NYLNUT-M6 FLG NYL
-
115450838-070 PLATE-TAILLIGHT COVER, BLACKPLATE-TAILLIGHT COVER, BLACK
