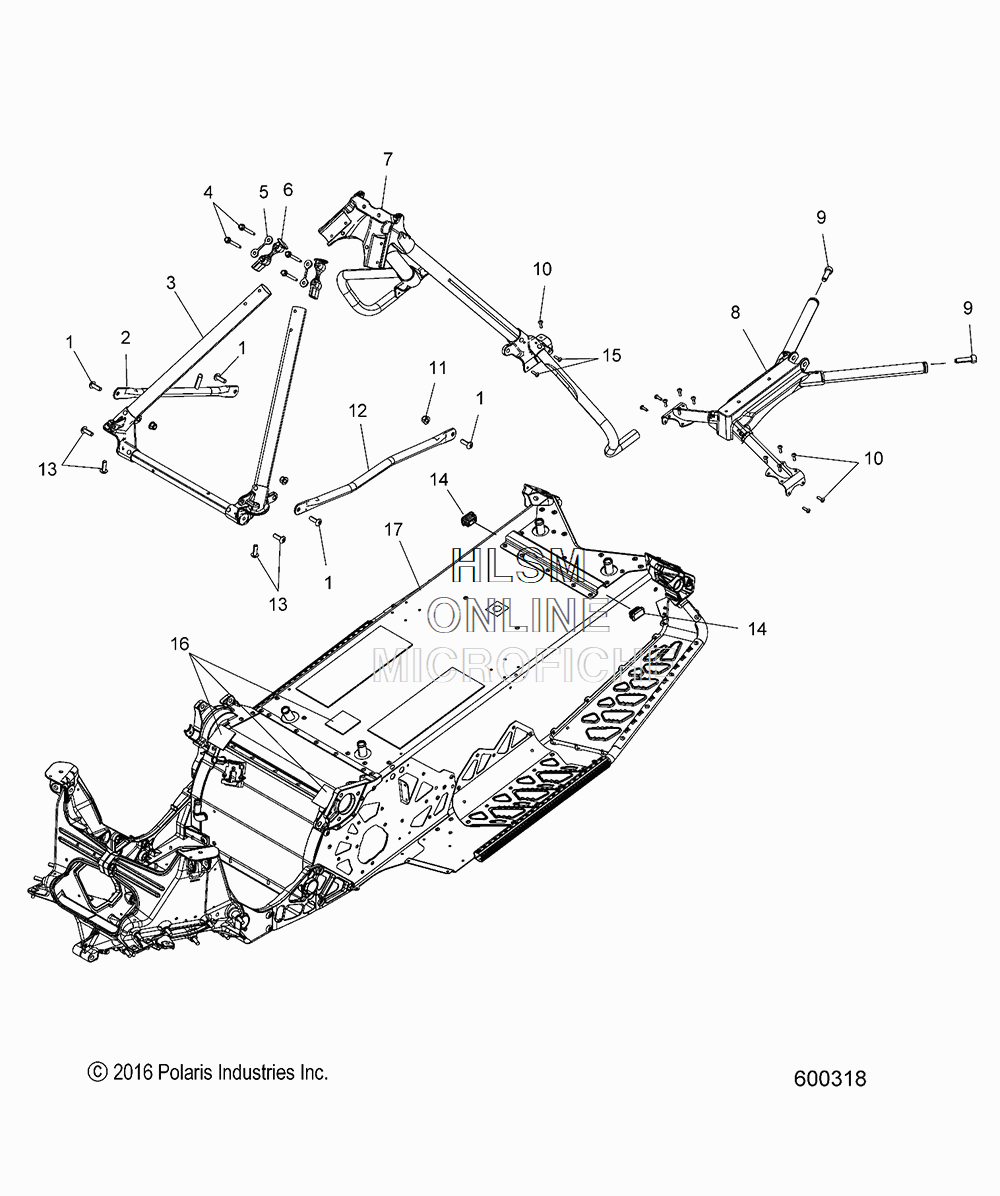

CHASSIS ASSEMBLY W/ OVER STRUCTURE для Polaris 800 SWITCHBACK ADVENTURE 137 ES (S18DDE8PSL) - 2018 года выпуска
-
№АртикулНазвание
-
17518906 SCREWSCREW
-
21019861-067 BRACE, TUBE, RIGHT HAND, BLACKBRACE, TUBE, RIGHT HAND, BLACK
-
31021006 ASM., FRAME, TUBULAR, FRONT, ALUM.ASM., FRAME, TUBULAR, FRONT, ALUM.
-
47519967 SCREWSCREW
-
55633083 SHIM, TUBE CAST, 31.76 DIASHIM, TUBE CAST, 31.76 DIA
-
65633122 SPACER, TUBE CAST, 27.00 DIASPACER, TUBE CAST, 27.00 DIA
-
71019146 ASM., TUBE FRAME, REARASM., TUBE FRAME, REAR
-
81021434-458 ASM., R/T SHOCK MOUNT 137, MATTE BLACKASM., R/T SHOCK MOUNT 137, MATTE BLACK
-
97519102 SCREWSCREW
-
107661637 RIVETRIVET
-
117547332 NUTNUT
-
125337391-329 BRACE, TUBE, LEFT HAND, E-COATBRACE, TUBE, LEFT HAND, E-COAT
-
137519070 SCREWSCREW
-
145439145 PLUG, TUNNEL SUPPORTPLUG, TUNNEL SUPPORT
-
157661130 RIVETRIVET
-
165814187 PAD, 2.5 IN X 2.5 INPAD, 2.5 IN X 2.5 IN
-
171022087-1447 ASM., CHASSIS, 137 PROG., MATTE BLACKASM., CHASSIS, 137 PROG., MATTE BLACK
