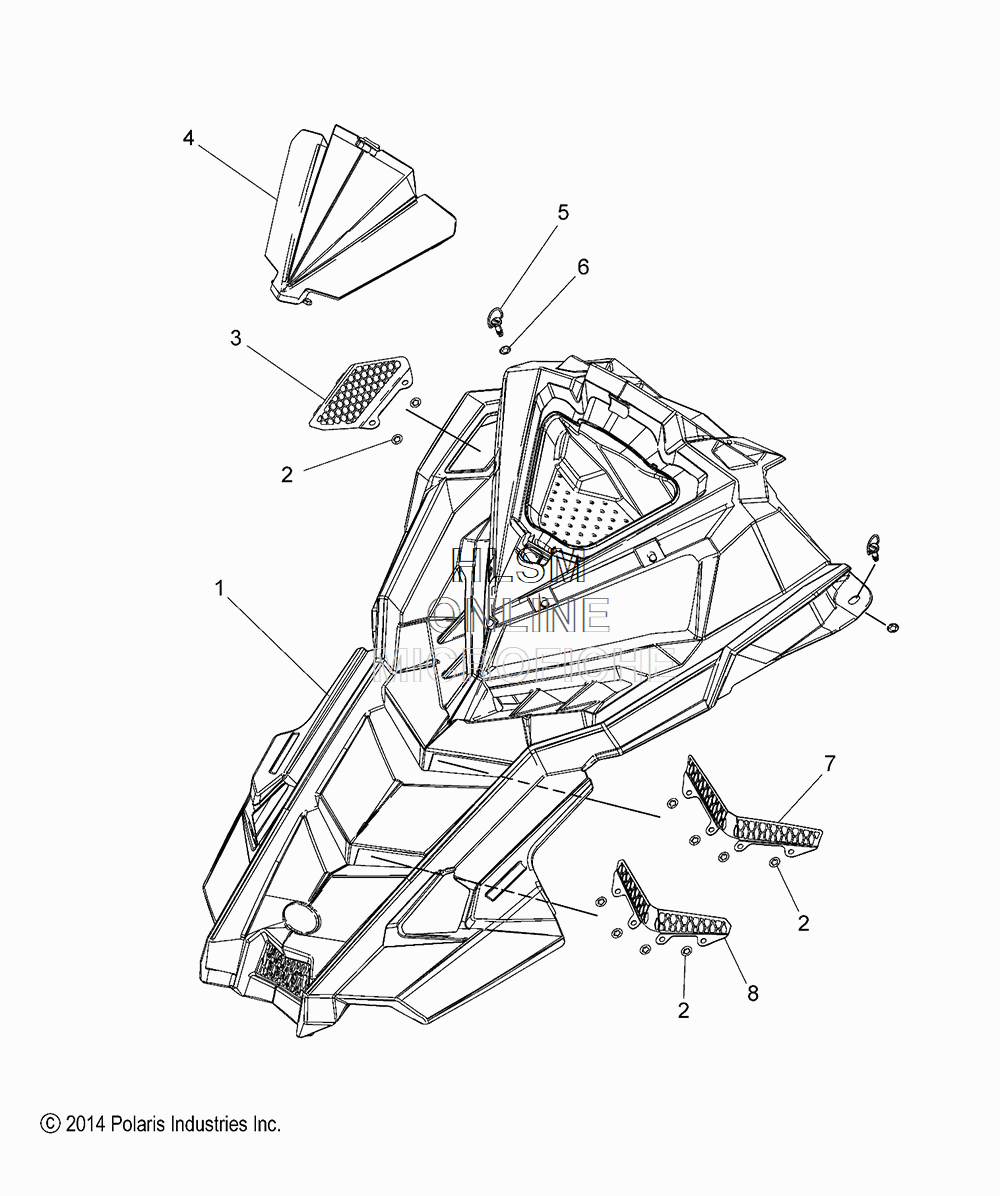

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 800 SWITCHBACK ADVENTURE 137 ES (S18DDE8PSL) - 2018 года выпуска
-
№АртикулНазвание
-
12635485 KIT, HOOD FOAM (SEE BODY, HOOD, FOAM/FIBER PAGE)KIT, HOOD FOAM (SEE BODY, HOOD, FOAM/FIBER PAGE)
-
15450995-070 HOOD, UV, TPO, 12V BLACK (REQ REF # 1, 2635485)HOOD, UV, TPO, 12V BLACK (REQ REF # 1, 2635485)
-
27670154 RETAINER, BOLTRETAINER, BOLT
-
35258828 VENT, HOOD, UPPERVENT, HOOD, UPPER
-
45451206-070 LID, STORAGE, IN MOLD, BLACKLID, STORAGE, IN MOLD, BLACK
-
57662246 STUD, 1/4 TURN 6MMX16MMSTUD, 1/4 TURN 6MMX16MM
-
67710807 RETAINER, 1/4 TURN 6MM,STEELRETAINER, 1/4 TURN 6MM,STEEL
-
75257643 SCREEN, HOOD MIDDLESCREEN, HOOD MIDDLE
-
85257642 SCREEN, HOOD FRONTSCREEN, HOOD FRONT
