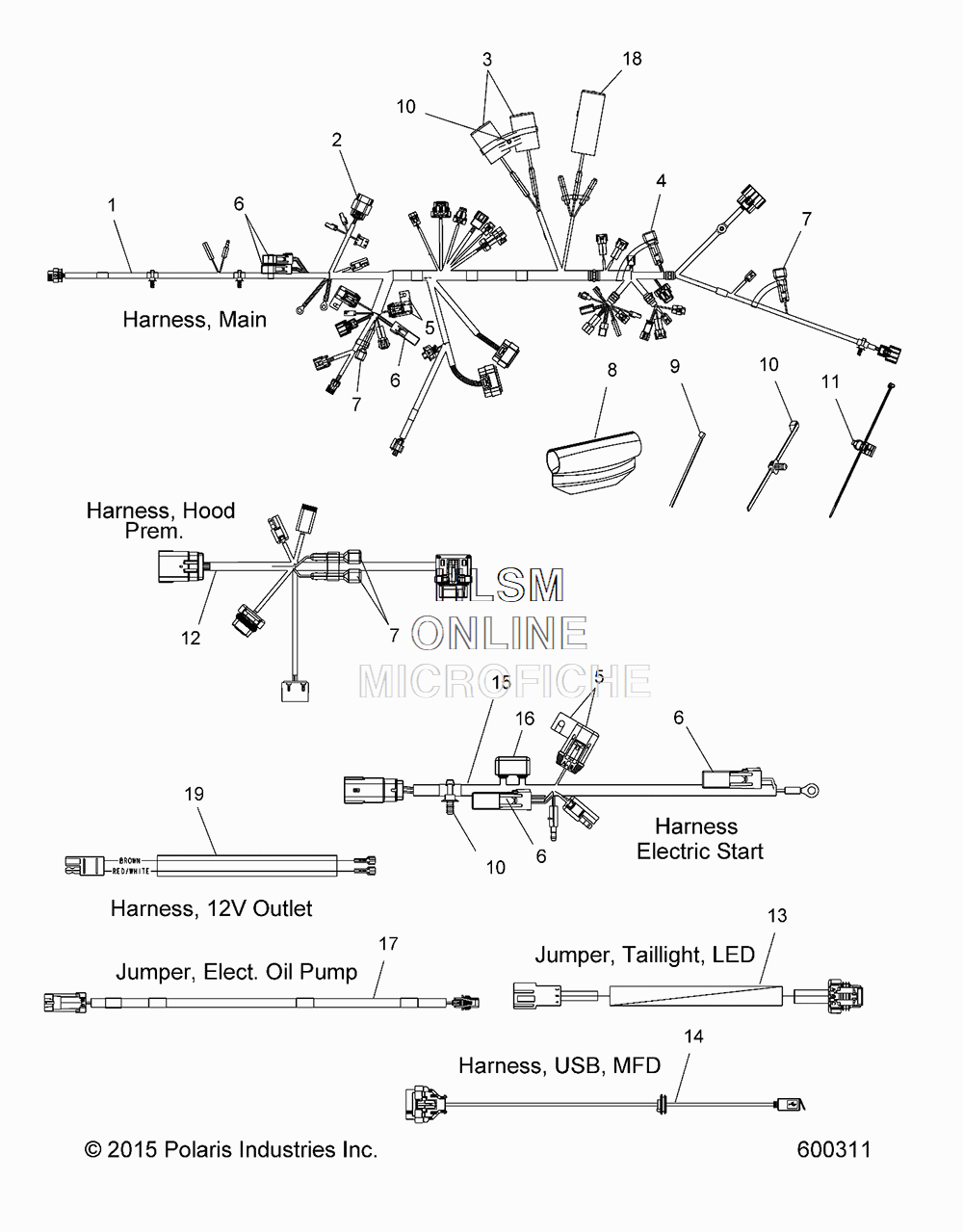

ELECTRICAL - WIRE HARNESS для Polaris 800 SWITCHBACK ADVENTURE 137 ES (S18DDE8PSL) - 2018 года выпуска
-
№АртикулНазвание
-
12413777 HARNESS, MAIN, CH, STD. (INCL. 2-7,10,11,18)HARNESS, MAIN, CH, STD. (INCL. 2-7,10,11,18)
-
24012170 COVER, DIAGNOSTICCOVER, DIAGNOSTIC
-
34013412 CAPACITOR, 22,000 MICRO FCAPACITOR, 22,000 MICRO F
-
44011441 CAPACITOR, FILTERCAPACITOR, FILTER
-
54010752 FUSE, 2 AMP.FUSE, 2 AMP.
-
54012260 COVER, FUSEHOLDERCOVER, FUSEHOLDER
-
64011998 RELAY, MICRO SPDTRELAY, MICRO SPDT
-
72410000 DIODE, 6 AMPDIODE, 6 AMP
-
82687630 COVER, HARNESSCOVER, HARNESS
-
82687631 COVER, HARNESS, LARGECOVER, HARNESS, LARGE
-
97080138 CABLE TIECABLE TIE
-
97080761 CABLE TIE, 14 INCABLE TIE, 14 IN
-
97080492 CABLE TIE, 11 INCABLE TIE, 11 IN
-
107081496 CLIP, ROUTINGCLIP, ROUTING
-
117081824 STRAP, CABLE TIE W/EDGE CLIP,3-6MMSTRAP, CABLE TIE W/EDGE CLIP,3-6MM
-
122413401 HARNESS, HOOD, PREM.HARNESS, HOOD, PREM.
-
132412791 JUMPER, TAILLIGHT, LED, 197.6MMJUMPER, TAILLIGHT, LED, 197.6MM
-
142412818 HARNESS, USB, MFDHARNESS, USB, MFD
-
152412713 HARNESS, ELECTRIC STARTHARNESS, ELECTRIC START
-
162410881 BREAKER, CIRCUIT, 20 AMPBREAKER, CIRCUIT, 20 AMP
-
172412793 JUMPER, ELECTRONIC OIL PUMPJUMPER, ELECTRONIC OIL PUMP
-
184015987 CAPACITOR, 66,000 MICRO FCAPACITOR, 66,000 MICRO F
-
192411352 HARNESS, 12V OUTLETHARNESS, 12V OUTLET
