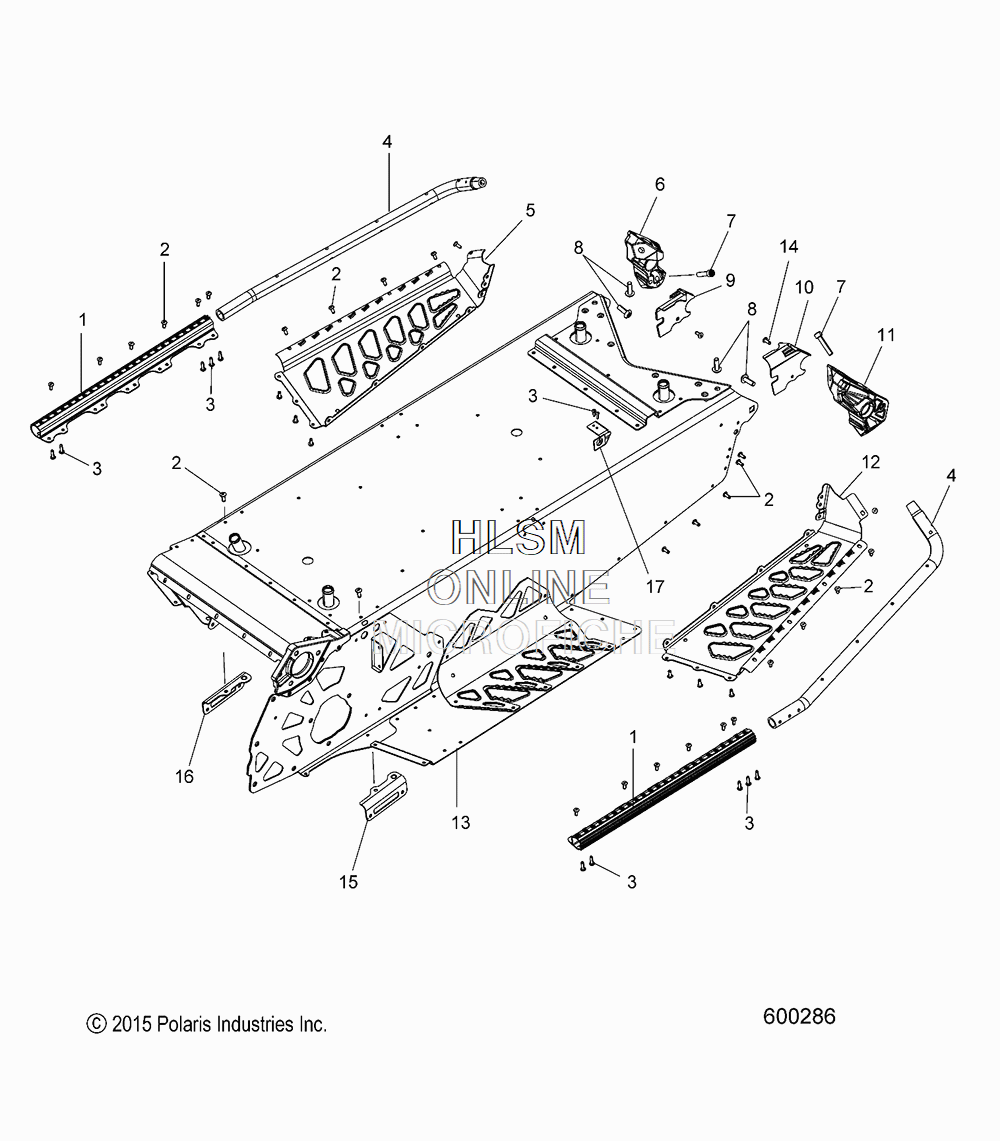

TUNNEL ASSEMBLY для Polaris 800 SWITCHBACK ADVENTURE 137 ES (S18DDE8PSL) - 2018 года выпуска
-
№АртикулНазвание
-
15140365 GRIPPER, TUNNELGRIPPER, TUNNEL
-
27661973 RIVET-4.8MM DIA-1.5-6.0 GRIPRIVET-4.8MM DIA-1.5-6.0 GRIP
-
37661637 RIVETRIVET
-
41019186 ASM., SUPPORT, RUNNING BOARD, 137ASM., SUPPORT, RUNNING BOARD, 137
-
55256864-458 CLOSEOFF, RUNNING BOARD, 137, RIGHT HAND, MATTE BLACKCLOSEOFF, RUNNING BOARD, 137, RIGHT HAND, MATTE BLACK
-
65138293 BRACE, SUPPORT, REAR, RIGHT HANDBRACE, SUPPORT, REAR, RIGHT HAND
-
77518143 SCREWSCREW
-
87518906 SCREWSCREW
-
95451580 CAP, CORNER, RIGHT HANDCAP, CORNER, RIGHT HAND
-
105451579 CAP, CORNER, LEFT HANDCAP, CORNER, LEFT HAND
-
115138292 BRACE, SUPPORT, REAR, LEFT HANDBRACE, SUPPORT, REAR, LEFT HAND
-
125256863-458 CLOSEOFF, RUNNING BOARD, 137, LEFT HAND, MATTE BLACKCLOSEOFF, RUNNING BOARD, 137, LEFT HAND, MATTE BLACK
-
131019188-1447 ASM., TUNNEL, 137 INCH, MATTE BLACKASM., TUNNEL, 137 INCH, MATTE BLACK
-
147621472 RIVETRIVET
-
151021014 ASM., BRKT, TUNNEL CORNER, LEFT HANDASM., BRKT, TUNNEL CORNER, LEFT HAND
-
161021015 ASM., BRKT, TUNNEL CORNER, RIGHT HANDASM., BRKT, TUNNEL CORNER, RIGHT HAND
-
175261212-458 BRKT-PORT, MATTE BLACKBRKT-PORT, MATTE BLACK
