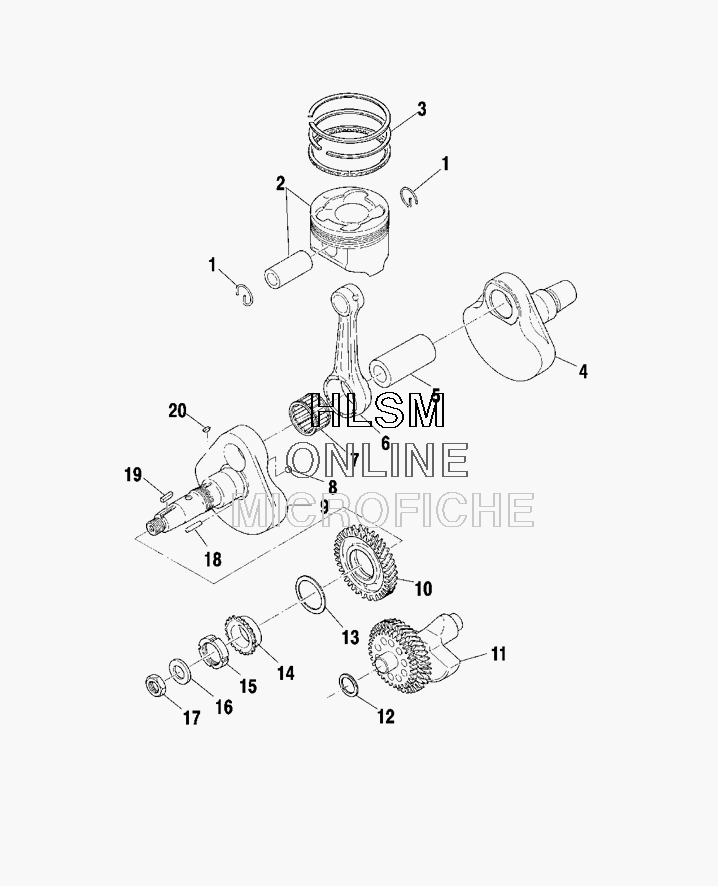

CRANKSHAFT W/ PISTON для Polaris RANGER 500 [A99RF50AA] - 1999 года выпуска
-
№АртикулНазвание
-
13085534 CLIPCLIP
-
23087170 SET, PISTON, STANDARD (STD) (INCL. PISTON PIN)SET, PISTON, STANDARD (STD) (INCL. PISTON PIN)
-
23087171 SET, PISTON, .010''/.25MM O/S (.025 O/S) (INCL. PISTON PIN)SET, PISTON, .010''/.25MM O/S (.025 O/S) (INCL. PISTON PIN)
-
23087172 SET, PISTON, .020''/.50MM O/S (.050 O/S) (INCL. PISTON PIN)SET, PISTON, .020''/.50MM O/S (.050 O/S) (INCL. PISTON PIN)
-
33085379 SET, PISTON, RING, STANDARD (STD)SET, PISTON, RING, STANDARD (STD)
-
33085380 SET, PISTON, RING, .010"/.25MM O/ (.025 O/S)SET, PISTON, RING, .010"/.25MM O/ (.025 O/S)
-
33085381 SET, PISTON, RING, .020"/.50MM O/ (.050 O/S)SET, PISTON, RING, .020"/.50MM O/ (.050 O/S)
-
43085374 CRANKSHAFT#2, PTO SIDECRANKSHAFT#2, PTO SIDE
-
53085341 PIN-CRANKPIN-CRANK
-
63085376 ROD, CONNECTINGROD, CONNECTING
-
73085400 BEARING, LARGE ENDBEARING, LARGE END
-
83085024 BALL, STEELBALL, STEEL
-
93085399 CRANKSHAFT ASM. (INCL. 4-10, 18)CRANKSHAFT ASM. (INCL. 4-10, 18)
-
93085373 CRANKSHAFT#1, MAG SIDECRANKSHAFT#1, MAG SIDE
-
103085852 GEAR, BALANCER #1GEAR, BALANCER #1
-
113085404 SHAFT, BALANCERSHAFT, BALANCER
-
123084895 SPACER, 0.8SPACER, 0.8
-
123084896 SPACER, 1.0SPACER, 1.0
-
123084897 SPACER, 1.2SPACER, 1.2
-
133240088 SPACER, 0.6SPACER, 0.6
-
133084892 SPACER, 0.8SPACER, 0.8
-
133084893 SPACER, 1.0SPACER, 1.0
-
133084894 SPACER, 1.2SPACER, 1.2
-
143084882 SPROCKET 1SPROCKET 1
-
153085528 NUT, SLITNUT, SLIT
-
163083904 WASHERWASHER
-
173083905 NUT, LOCKNUT, LOCK
-
183085346 PIN, DOWELPIN, DOWEL
-
193081447 KEYKEY
-
203080130 KEY WOODRUFFKEY WOODRUFF
