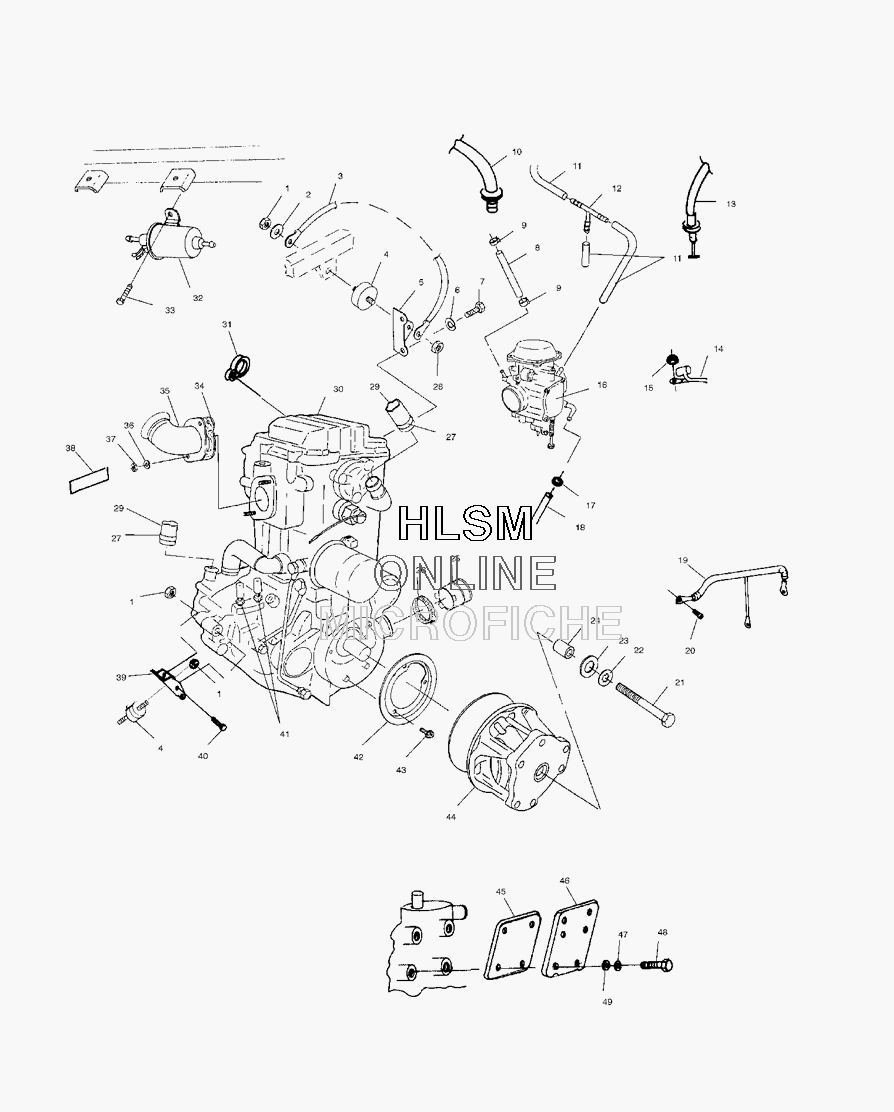

MOUNTING - ENGINE для Polaris RANGER 500 [A99RF50AA] - 1999 года выпуска
-
№АртикулНазвание
-
17542403 NUT LOCKNUT LOCK
-
27555801 WASHERWASHER
-
34010132 CABLE, GND-ENGINECABLE, GND-ENGINE
-
43110026 MOUNT, MOTORMOUNT, MOTOR
-
55241453-067 MOUNT-ENGINE, TOP PLTDMOUNT-ENGINE, TOP PLTD
-
67552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
77512315 BOLTBOLT
-
88450040-600 LINE FUEL, 1/4 ID(600 CM.)LINE FUEL, 1/4 ID(600 CM.)
-
97080003 CLAMP, HOSECLAMP, HOSE
-
107080711 CABLE, THROTTLECABLE, THROTTLE
-
118450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)LINE, FUEL, 1/4 ID(1525 CM.)
-
127052075 FITTING, TEEFITTING, TEE
-
137080712 CABLE, CHOKECABLE, CHOKE
-
144010129 CABLE, SOL/START, DBLBOOTCABLE, SOL/START, DBLBOOT
-
153083649 NUT, FLANGENUT, FLANGE
-
177080603 CLAMPCLAMP
-
188450061-600 LINE, FUEL, 3MMX7MMLINE, FUEL, 3MMX7MM
-
194010133 CABLE, GND, BATT/ENG/CHASSISCABLE, GND, BATT/ENG/CHASSIS
-
203082038 BOLTANDWASHER ASM.BOLTANDWASHER ASM.
-
217512566 BOLTBOLT
-
227575202 WASHER LOCKWASHER LOCK
-
235210748 WASHERWASHER
-
245430261 BUSHINGBUSHING
-
255410421 BOOT, CLUTCH INTAKEBOOT, CLUTCH INTAKE
-
267080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
277080614 CLAMP, HOSECLAMP, HOSE
-
287547108 NUTNUT
-
298450050-305 HOSE, WATER, 100 CM.HOSE, WATER, 100 CM.
-
303085556 MOTOR (SEE NOTE)MOTOR (SEE NOTE)
-
317080807 CLAMP-HOSECLAMP-HOSE
-
324170020 PUMP-FUEL, 12V, PRSS RELIEF, 1-4PPUMP-FUEL, 12V, PRSS RELIEF, 1-4P
-
337512017 SCREWSCREW
-
351260842-029 MANIFOLD, BLACKMANIFOLD, BLACK
-
387078577 DECAL, DRAIN RECOILDECAL, DRAIN RECOIL
-
395244019-067 MOUNT-ENGINE FRONT LOWER, BLACKMOUNT-ENGINE FRONT LOWER, BLACK
-
407515417 SCREWSCREW
-
417080474 CLAMP, HOSECLAMP, HOSE
-
455244018-067 PLATE-BOLT THIN COUPLER, BLACKPLATE-BOLT THIN COUPLER, BLACK
-
465242830-067 BRKT, BOLTPLATE, OUTER, BLACK.BRKT, BOLTPLATE, OUTER, BLACK.
-
477553001 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
487515440 BOLTBOLT
-
497558403 WASHER, WROUGHTWASHER, WROUGHT
