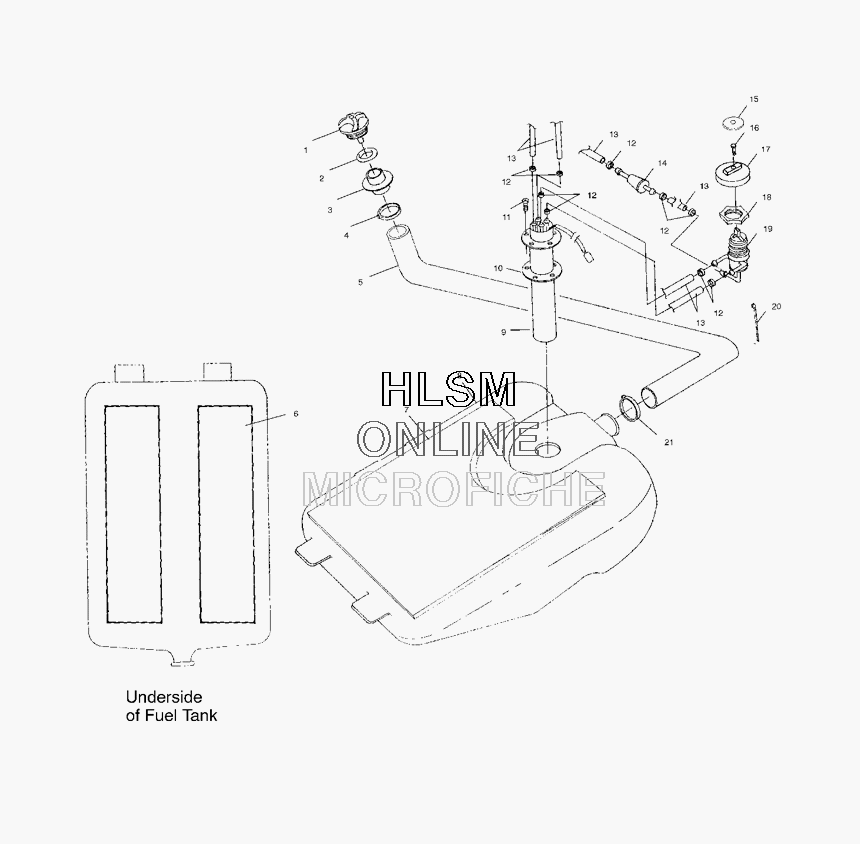

FUEL TANK для Polaris RANGER 500 [A99RF50AA] - 1999 года выпуска
-
№АртикулНазвание
-
12520148 CAP ASM, FUEL, RATCHETCAP ASM, FUEL, RATCHET
-
25411305 SEAL, FUEL CAPSEAL, FUEL CAP
-
35432639 INLET, FUELINLET, FUEL
-
47080656 CLAMP, BAND, NARROWCLAMP, BAND, NARROW
-
55411517 HOSE, FILL, FUEL (RANGER)HOSE, FILL, FUEL (RANGER)
-
65811719 PAD-FUEL TANK, BOTTOMPAD-FUEL TANK, BOTTOM
-
75811720 PAD-FUEL TANK, TOPPAD-FUEL TANK, TOP
-
85432764 TANK, FUELTANK, FUEL
-
92410092 NECK (IF BUILT BEFORE 1/14/00)NECK (IF BUILT BEFORE 1/14/00)
-
92410216 NECK (IF BUILT AFTER 1/14/00)NECK (IF BUILT AFTER 1/14/00)
-
105810858 GASKETGASKET
-
117512045 BOLT, SS.BOLT, SS.
-
127080003 CLAMP, HOSE (USE QTY. 11 IF BUILT BEFORE 1/14/00 AND QTY. 7 IF BUILT AFTER 1/14/00)CLAMP, HOSE (USE QTY. 11 IF BUILT BEFORE 1/14/00 AND QTY. 7 IF BUILT AFTER 1/14/00)
-
138450040-600 LINE FUEL, 1/4 ID (600 CM.)LINE FUEL, 1/4 ID (600 CM.)
-
142530009 FILTER, SMALL, IN-LINEFILTER, SMALL, IN-LINE
-
157077365 DECAL, FUEL LEVER (IF BUILT BEFORE 1/14/00)DECAL, FUEL LEVER (IF BUILT BEFORE 1/14/00)
-
167517505 SCREW (IF BUILT BEFORE 1/14/00)SCREW (IF BUILT BEFORE 1/14/00)
-
175432559 KNOB, FUEL VALVE (IF BUILT BEFORE 1/14/00)KNOB, FUEL VALVE (IF BUILT BEFORE 1/14/00)
-
185432733 NUT, FUEL VALVE (IF BUILT BEFORE 1/14/00)NUT, FUEL VALVE (IF BUILT BEFORE 1/14/00)
-
197052161 VALVE, 3-WAY (IF BUILT BEFORE 1/14/00)VALVE, 3-WAY (IF BUILT BEFORE 1/14/00)
-
207080761 CABLE TIE, 14''CABLE TIE, 14''
-
217080413 CLAMP, BAND, NARROWCLAMP, BAND, NARROW
