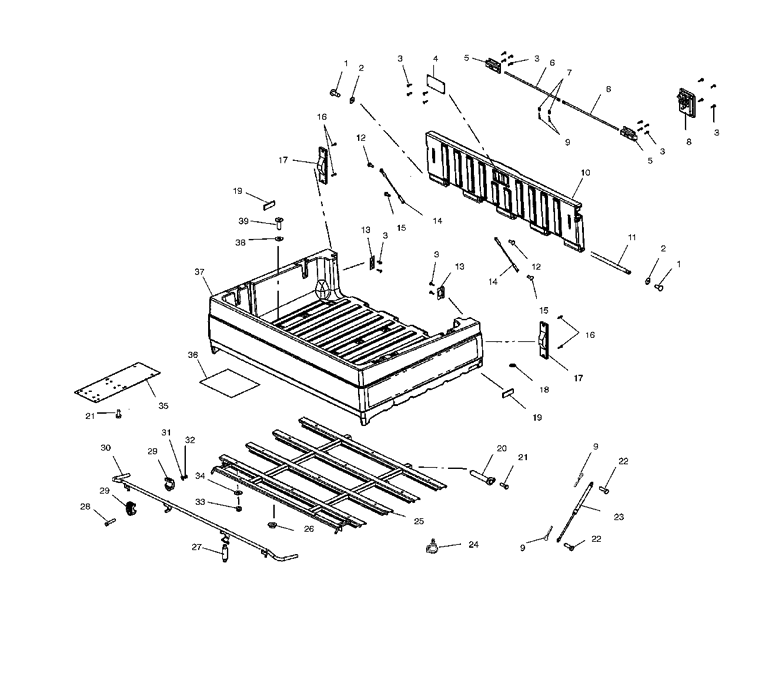

BED - REAR для Polaris RANGER 2X4 SERIES 10 [A10RB42AA] - 2003 года выпуска
-
№АртикулНазвание
-
17515177 SCREWSCREW
-
27555960 WASHER,FLATWASHER,FLAT
-
37517561 SCREWSCREW
-
45244068-067 COVER-TAILGATE, BLACKCOVER-TAILGATE, BLACK
-
55433656 LATCH,FLSHBLT,TLGATE, BLACKLATCH,FLSHBLT,TLGATE, BLACK
-
65132810 SHAFT-TAILGATE LATCH,5/16SHAFT-TAILGATE LATCH,5/16
-
77556143 WSHR,RUBBER W/METAL BACKWSHR,RUBBER W/METAL BACK
-
85433655 LATCH,PADDLE,T-GATE, BLACKLATCH,PADDLE,T-GATE, BLACK
-
97661644 PIN,HITCHPIN,HITCH
-
105433951 TAILGATE-PLASTIC,RANGERTAILGATE-PLASTIC,RANGER
-
115132811 ROD-HINGE,TAILGATE,RANGERROD-HINGE,TAILGATE,RANGER
-
127517742 SCREW1/4-20X3/4PA PN,LK,G2-YSCREW1/4-20X3/4PA PN,LK,G2-Y
-
135243304 BRKT-BOX LATCHBRKT-BOX LATCH
-
147081001 CABLE-TAILGATE,RANGERCABLE-TAILGATE,RANGER
-
157517938 SCREW-1/4-20X2SCREW-1/4-20X2
-
167517790 SCR,#10X3/4 HI/LOSCR,#10X3/4 HI/LO
-
172410179 TAILLIGHT W/BRAKE LIGHT,ASM. (IF BUILT BEFORE 1/7/02)TAILLIGHT W/BRAKE LIGHT,ASM. (IF BUILT BEFORE 1/7/02)
-
174010340 BULB,TAILLIGHTBULB,TAILLIGHT
-
172410322 ASM-TAILIGHT W/BRAKE LIGHT,NP (IF BUILT AFTER 1/7/02)ASM-TAILIGHT W/BRAKE LIGHT,NP (IF BUILT AFTER 1/7/02)
-
185411009 PLUG, HOLEPLUG, HOLE
-
197079925 DECAL-REFLECT.2.88,REDDECAL-REFLECT.2.88,RED
-
201013511-067 PIN,BOX HINGE, BLACKPIN,BOX HINGE, BLACK
-
217517386 SCREWSCREW
-
217517386 SCREW (IF BUILT AFTER 2/25/02)SCREW (IF BUILT AFTER 2/25/02)
-
227661037 PIN,CLEVISPIN,CLEVIS
-
237041996 SHOCK-DUMP BOX 19.50SHOCK-DUMP BOX 19.50
-
247670116 CLIP,ROUTING,.472 B.D.,HINGEDCLIP,ROUTING,.472 B.D.,HINGED
-
251013419-067 WELD BOX BASE BLACKWELD BOX BASE BLACK
-
267547089 NUT-3/8-16 FLG LOCK-YNUT-3/8-16 FLG LOCK-Y
-
277041687 SPRINGSPRING
-
287515319 BOLTBOLT
-
295434226 BUSHING-BOX,LATCHBUSHING-BOX,LATCH
-
301013571-067 BOX LATCH, BLACKBOX LATCH, BLACK
-
317555770 WASHER, FLATWASHER, FLAT
-
327542324 NUT,NYLOKNUT,NYLOK
-
335410414 BUMPER, RUBBERBUMPER, RUBBER
-
347555788 WASHER, THRUSTWASHER, THRUST
-
355246389 SHIELD-EXHAUST,BOX (IF BUILT AFTER 2/25/02)SHIELD-EXHAUST,BOX (IF BUILT AFTER 2/25/02)
-
365812242 FOIL-HEAT SHEILD,DOG HOUSE (IF BUILT BEFORE 2/25/02)FOIL-HEAT SHEILD,DOG HOUSE (IF BUILT BEFORE 2/25/02)
-
375434578-070 BOX-MOLDED,RANGER 2X4, BLACK,MODBOX-MOLDED,RANGER 2X4, BLACK,MOD
-
387556157 WASHER,.391X1.25X.105-MWASHER,.391X1.25X.105-M
-
397517959 SCR-3/8-16X1SCR-3/8-16X1
