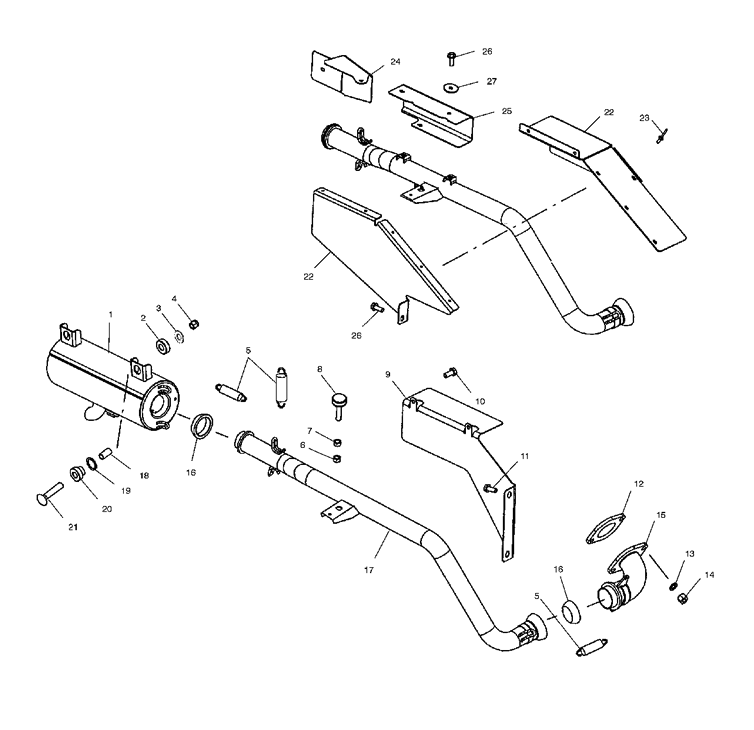

EXHAUST SYSTEM для Polaris RANGER 2X4 SERIES 10 [A10RB42AA] - 2003 года выпуска
-
№АртикулНазвание
-
11261082-029 SILENCER, BLACKSILENCER, BLACK
-
25410436 WASHER,RUBBERWASHER,RUBBER
-
37555716 WASHERWASHER
-
47542324 NUT,NYLOKNUT,NYLOK
-
57041804 SPRINGSPRING
-
67547101 NUTSERT-5/16-18(.027-.150),HXYNUTSERT-5/16-18(.027-.150),HXY
-
77542301 NUT HEXNUT HEX
-
83110064 MOUNT,TORQUE-STOPMOUNT,TORQUE-STOP
-
95245645 SHIELD-HEAT,FRAME (IF BUILT BEFORE 2/25/02)SHIELD-HEAT,FRAME (IF BUILT BEFORE 2/25/02)
-
107517386 SCREWSCREW
-
117515399 SCREW (IF BUILT BEFORE 2/25/02)SCREW (IF BUILT BEFORE 2/25/02)
-
123085075 ASM.,GASKET(EXHAUST)ASM.,GASKET(EXHAUST)
-
133080530 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
143080285 NUTNUT
-
151261043-029 WELD-MANIFOLD 1.625, BLACKWELD-MANIFOLD 1.625, BLACK
-
165243518 SEAL,EXHAUSTSEAL,EXHAUST
-
171261083-029 WELD-EXHAUST PIPE,RANGER, BLACK (IF BUILT BEFORE 1/14/02)WELD-EXHAUST PIPE,RANGER, BLACK (IF BUILT BEFORE 1/14/02)
-
171261230-029 WELD-EXHAUST PIPE,RANGER, BLACK (IF BUILT AFTER 1/14/02)WELD-EXHAUST PIPE,RANGER, BLACK (IF BUILT AFTER 1/14/02)
-
185010192 BUSHINGBUSHING
-
197555863 WASHERWASHER
-
205410241 DAMPENER-VIBRATIONDAMPENER-VIBRATION
-
217515316 BOLTBOLT
-
222632609 SHIELD-HEAT,EXHAUST (IF BUILT AFTER 2/25/02)SHIELD-HEAT,EXHAUST (IF BUILT AFTER 2/25/02)
-
225245644 SHIELD-HEAT,EXHAUST (IF BUILT AFTER 2/25/02)SHIELD-HEAT,EXHAUST (IF BUILT AFTER 2/25/02)
-
225246388 SHIELD-HEAT,EXHAUST (IF BUILT AFTER 2/25/02)SHIELD-HEAT,EXHAUST (IF BUILT AFTER 2/25/02)
-
237661637 RIVET,INTERLOCK,Z (IF BUILT AFTER 2/25/02)RIVET,INTERLOCK,Z (IF BUILT AFTER 2/25/02)
-
245246454 SHIELD-HEAT,EXHAUST,SIDE (IF BUILT AFTER 2/25/02)SHIELD-HEAT,EXHAUST,SIDE (IF BUILT AFTER 2/25/02)
-
255246455 SHIELD-HEAT,EXHAUST,TOP (IF BUILT AFTER 2/25/02)SHIELD-HEAT,EXHAUST,TOP (IF BUILT AFTER 2/25/02)
-
267515197 SCREW (IF BUILT AFTER 2/25/02)SCREW (IF BUILT AFTER 2/25/02)
-
277555935 WASHER (IF BUILT AFTER 2/25/02)WASHER (IF BUILT AFTER 2/25/02)
