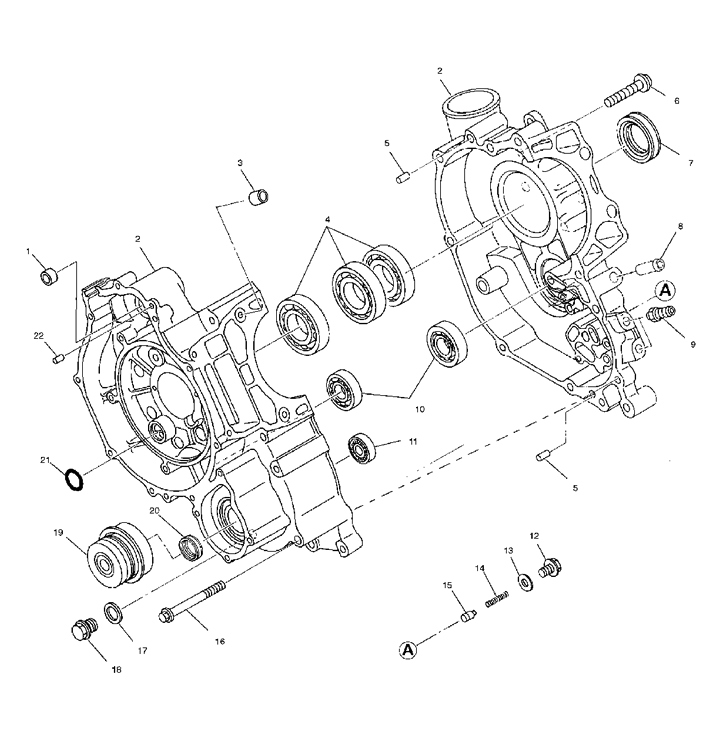

CRANKCASE для Polaris RANGER 2X4 SERIES 10 [A10RB42AA] - 2003 года выпуска
-
№АртикулНазвание
-
13083669 BUSHING, STARTERBUSHING, STARTER
-
23085633 CRANKCASE ASM. (INCL. 1,4,5,7,8,10,11,16,19,20,22)CRANKCASE ASM. (INCL. 1,4,5,7,8,10,11,16,19,20,22)
-
33084838 KNOCK,PIPEKNOCK,PIPE
-
43080676 BEARING, BALLBEARING, BALL
-
53084840 PIN, DOWELPIN, DOWEL
-
63084205 ASM.,SCREW AND WASHERASM.,SCREW AND WASHER
-
73084839 SEAL, OILSEAL, OIL
-
83085525 PIPE,AIR BREATHERPIPE,AIR BREATHER
-
93084842 UNIONUNION
-
103084834 BEARING,BALLBEARING,BALL
-
113084835 BEARING,BALLBEARING,BALL
-
123084845 PLUGPLUG
-
133084846 GASKET,(ALUM.)GASKET,(ALUM.)
-
143084844 SPRING,ONE WAY VALVESPRING,ONE WAY VALVE
-
153086810 VALVE-ONEWAYVALVE-ONEWAY
-
163084841 BOLT,FLANGEBOLT,FLANGE
-
173082956 GASKETGASKET
-
183083453 PLUGPLUG
-
193084837 SEAL,MECHANICALSEAL,MECHANICAL
-
203084836 SEAL, OILSEAL, OIL
-
213084847 O-RINGO-RING
-
223080103 PIN,DOWELPIN,DOWEL
