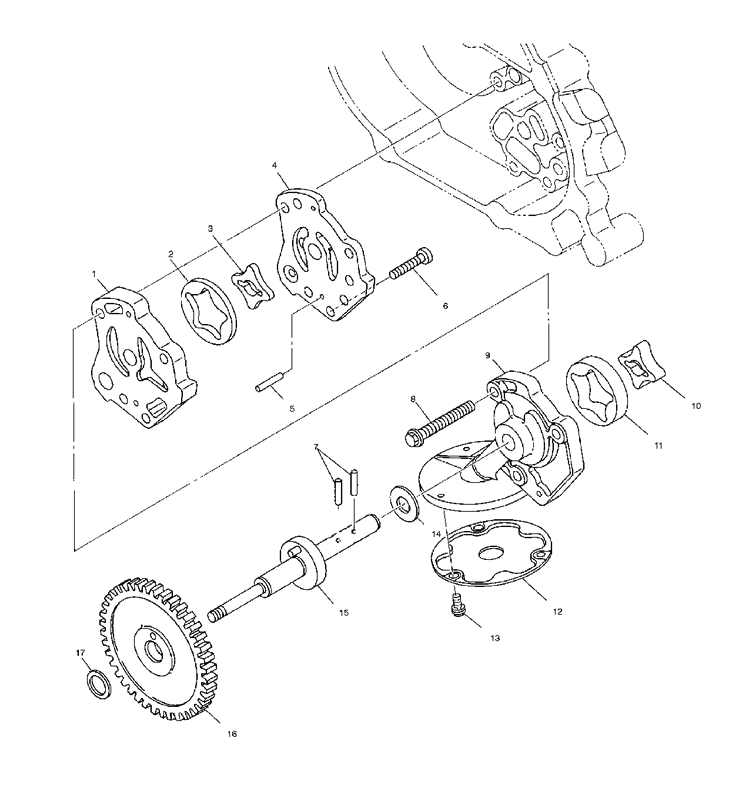

OIL PUMP для Polaris RANGER 2X4 SERIES 10 [A10RB42AA] - 2003 года выпуска
-
№АртикулНазвание
-
13084946 CASE #2,OILPUMPCASE #2,OILPUMP
-
23084949 ROTOR,OUTER,FEEDROTOR,OUTER,FEED
-
33084948 ROTOR,INNER,FEEDROTOR,INNER,FEED
-
43084944 OIL PUMP ASM (INC 1-7,9-15)OIL PUMP ASM (INC 1-7,9-15)
-
43084945 CASE #1,OILPUMPCASE #1,OILPUMP
-
53084955 PIN, DOWELPIN, DOWEL
-
63085535 SCREWSCREW
-
73084954 PIN, DOWELPIN, DOWEL
-
83084962 BOLTANDWASHER ASM.BOLTANDWASHER ASM.
-
93084947 CASE #3,OILPUMPCASE #3,OILPUMP
-
103084950 ROTOR,INNER,SCAV.ROTOR,INNER,SCAV.
-
113084951 ROTOR,OUTERROTOR,OUTER
-
123084956 STRAINER UNIT,OILSTRAINER UNIT,OIL
-
133084205 ASM.,SCREW AND WASHERASM.,SCREW AND WASHER
-
143084953 WASHERWASHER
-
153084952 SHAFT, PUMPSHAFT, PUMP
-
163084958 GEAR 2, PUMPGEAR 2, PUMP
-
173084959 SPACER,0.8SPACER,0.8
-
173084960 SPACER,1.0SPACER,1.0
-
173084961 SPACER,1.2SPACER,1.2
