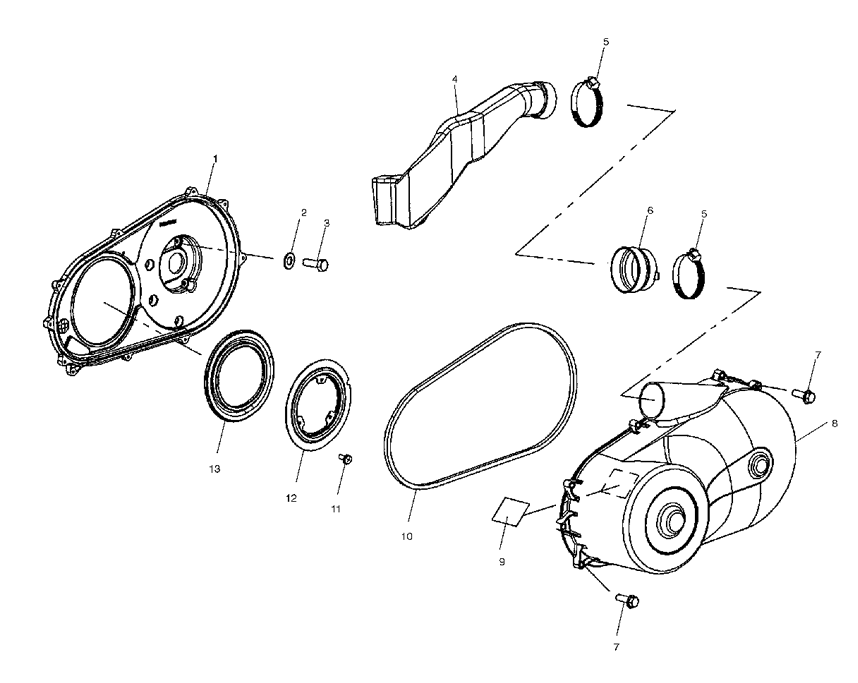

CLUTCH COVER для Polaris RANGER 6X6 SERIES 11 [A11RF50AA] - 2004 года выпуска
-
№АртикулНазвание
-
15434234 KIT-INNER CLUTCH CVR,SVCKIT-INNER CLUTCH CVR,SVC
-
27555748 WASHERWASHER
-
37517312 SCREWSCREW
-
45434247 DUCT-CLUTCH,AIR OUTLETDUCT-CLUTCH,AIR OUTLET
-
57080707 CLAMP,BAND,NARROWCLAMP,BAND,NARROW
-
65411489 BOOT,DUCT,HI-FLOWBOOT,DUCT,HI-FLOW
-
77512094 SCREWSCREW
-
85433451-070 COVER,CLUTCH-OUTER,HV, BLACKCOVER,CLUTCH-OUTER,HV, BLACK
-
97078689 DECALDECAL
-
105521578 SEAL-OUTER CLUTCH COVERSEAL-OUTER CLUTCH COVER
-
113084205 ASM.,SCREW AND WASHERASM.,SCREW AND WASHER
-
125242046 BRKT-CLUTCH SEALBRKT-CLUTCH SEAL
-
135410575 SEAL-COVER CASE,ENGINESEAL-COVER CASE,ENGINE
