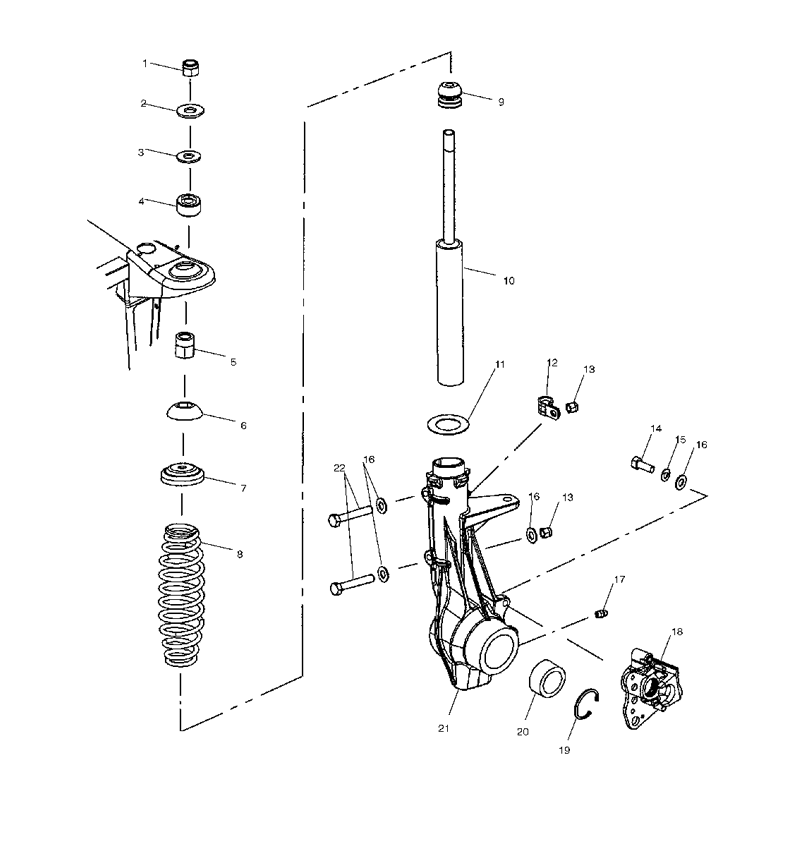

SUSPENSION - FRONT STRUT для Polaris RANGER 6X6 SERIES 11 [A11RF50AA] - 2004 года выпуска
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 PIVOT,BALL,TOPPIVOT,BALL,TOP
-
55132062 SPACER-1/2-20SPACER-1/2-20
-
65432871 PIVOT,BALL,BOTTOMPIVOT,BALL,BOTTOM
-
75243364 RETAINER-SPRINGRETAINER-SPRING
-
87041985-067 SPRING-COMP,120/150, BLACKSPRING-COMP,120/150, BLACK
-
95411608 BUMPER-MCU,17.8MM IDBUMPER-MCU,17.8MM ID
-
107041784 STRUT, FRONTSTRUT, FRONT
-
115211115 WASHERWASHER
-
127080367 CLAMP, CABLECLAMP, CABLE
-
137542324 NUT,NYLOKNUT,NYLOK
-
147512365 SCREW, CAPSCREW, CAP
-
157552901 WASHER,SPRING LOCKWASHER,SPRING LOCK
-
167558402 WASHER,FLATWASHER,FLAT
-
177080306 FITTING,LUBE.W/BALL CK. (SEE FRONT BRAKE CAPIPER FOR DETAILS)FITTING,LUBE.W/BALL CK. (SEE FRONT BRAKE CAPIPER FOR DETAILS)
-
197710507 RING,RET.,2.500 INTERNALRING,RET.,2.500 INTERNAL
-
203514342 BEARING-AXLE TUBE/HUBSTRUTBEARING-AXLE TUBE/HUBSTRUT
-
211820899 HUBSTRUT ASM,LH (INCL. 12,13,16,19,20,22)HUBSTRUT ASM,LH (INCL. 12,13,16,19,20,22)
-
211820901 HUBSTRUT ASM,RH (INCL. 12,13,16,19,20,22)HUBSTRUT ASM,RH (INCL. 12,13,16,19,20,22)
-
227515339 BOLTBOLT
