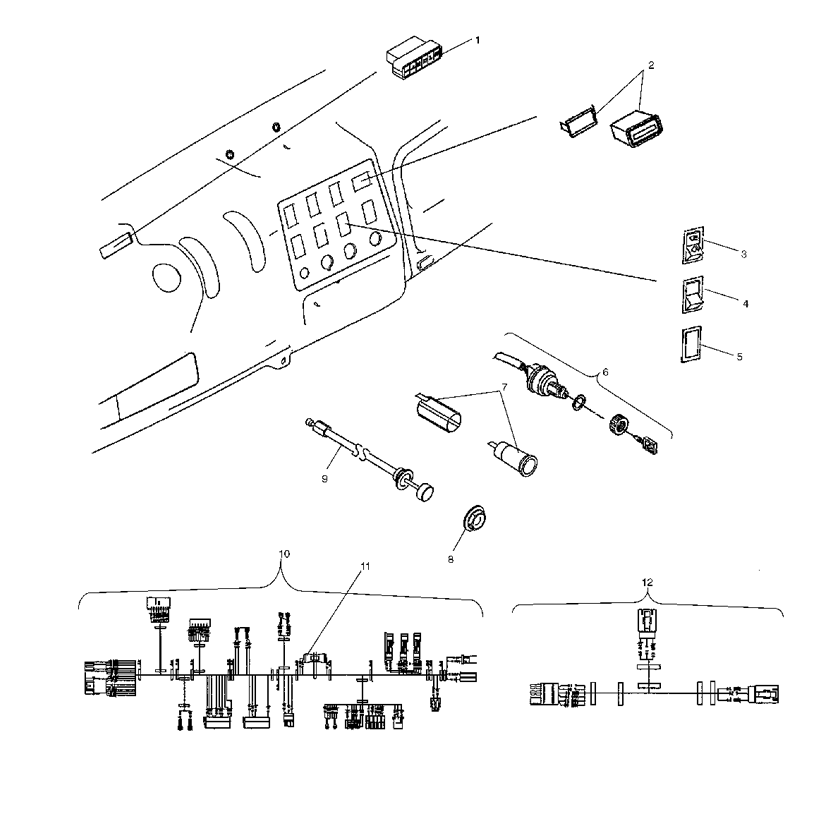

DASH INSTRUMENTS AND CONTROLS для Polaris RANGER 6X6 SERIES 11 [A11RF50AA] - 2004 года выпуска
-
№АртикулНазвание
-
14010797 PANEL-INDICATORPANEL-INDICATOR
-
24010460 HOURMETER-12V,NON-POL,RECTNGLRHOURMETER-12V,NON-POL,RECTNGLR
-
34010525 SWITCH-HEADLIGHTSWITCH-HEADLIGHT
-
55434192 PLUG-HOLE,CARLING ROCKER SWTCHPLUG-HOLE,CARLING ROCKER SWTCH
-
64010390 SWITCH-IGNITION,KEYSTART,ATVSWITCH-IGNITION,KEYSTART,ATV
-
74010638 RECEPTACLE-POD MNT,12 VOLTRECEPTACLE-POD MNT,12 VOLT
-
87080922 NUT,CHOKE,M24X1.5 THD,M29 HEXNUT,CHOKE,M24X1.5 THD,M29 HEX
-
97080937 CABLE-CHOKE,RANGERCABLE-CHOKE,RANGER
-
102461058 HARNESS-DASH,RANGER SRS 11HARNESS-DASH,RANGER SRS 11
-
112201795 KIT-CIRCUT BREAKER,FANKIT-CIRCUT BREAKER,FAN
-
122460978 HARNESS-HEADLITE/HOOD,RANGERHARNESS-HEADLITE/HOOD,RANGER
Все узлы модели:
- AIR BOX ASSY.
- BED - REAR
- BRAKE - FRONT CALIPER
- BRAKE - REAR W/ FOOT PEDAL
- BRAKE LINES - MASTER CYLINDER
- CAB FRAME
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CHASSIS/BODY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- • DASH INSTRUMENTS AND CONTROLS
- DECALS
- DRIVESHAFT - REAR
- ELECTRICAL - BATTERY
- ENGINE AND CLUTCH AIR INTAKE
- EXHAUST SYSTEM
- FLYWHEEL COVER
- FRONT DRIVE SHAFT (4X4)(6X6)
- FRONT HOUSING (4X4) (6X6)
- FRONT PROP SHAFT (4X4)(6X6)
- FUEL TANK
- GEAR SELECTOR/DIFFERENTIAL LOC
- GEARCASE (6X6)
- HOOD
- MAGNETO
- MID DRIVE A-ARMS (6X6)
- MID DRIVESHAFT (6X6)
- MID GEARCASE (6X6)
- MID HOUSING (6X6)
- MOLDINGS
- MOUNTING - ENGINE
- MOUNTING - TRANSMISSION
- OIL FILTER
- OIL PUMP
- OIL TANK
- PARK BRAKE LOCK
- REAR BRAKE CALIPERS
- REAR GEARCASE (6X6)
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SHOCK
- SUSPENSION - SWING ARM W/ REAR SHOCK ASSY
- THROTTLE
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
