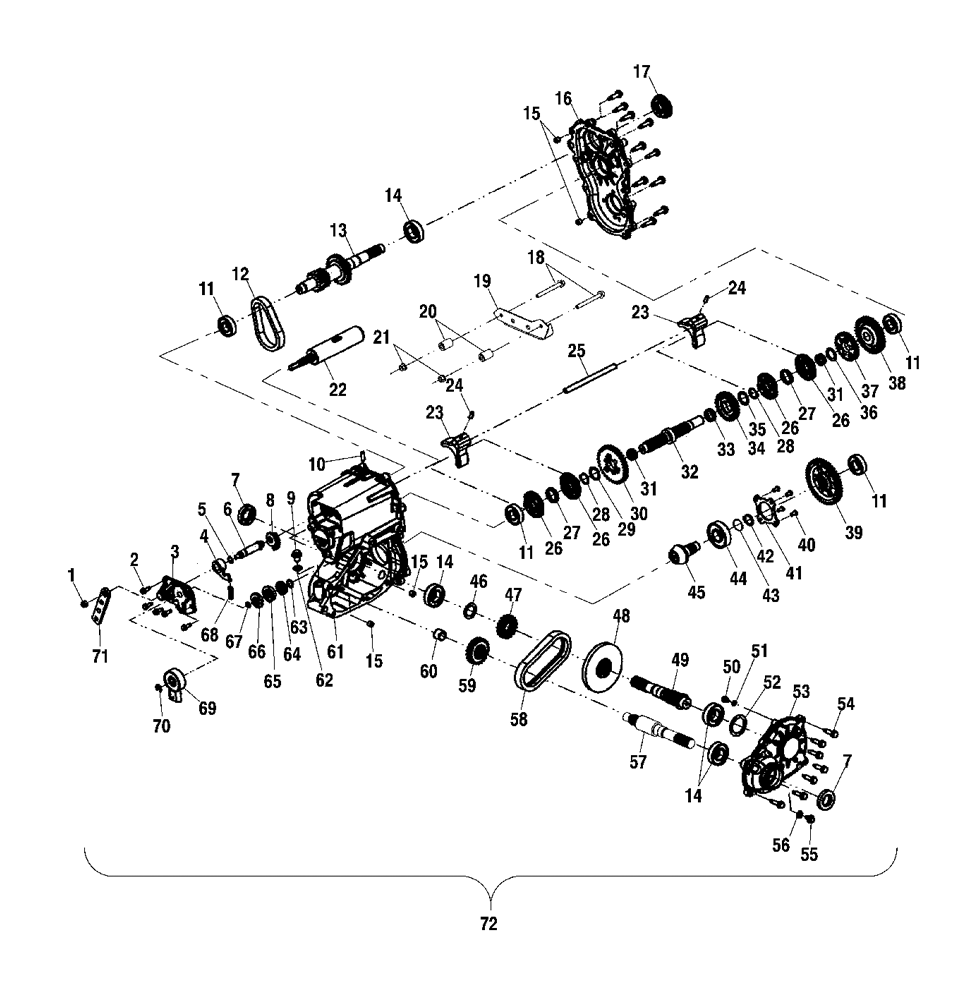

GEARCASE (6X6) для Polaris RANGER 6X6 SERIES 11 [A11RF50AA] - 2004 года выпуска
-
№АртикулНазвание
-
13233961 NUT-LOCK HEX FLANGE NYLON 5/16NUT-LOCK HEX FLANGE NYLON 5/16
-
23233826 SCREWSCREW
-
33233827 COVER-SECTOR GEARSCOVER-SECTOR GEARS
-
43233829 PAWL-DETENTPAWL-DETENT
-
53233828 O-RINGO-RING
-
63233831 SHAFT-SHIFTSHAFT-SHIFT
-
73233842 SEAL-VITON,TRIPLE LIPSEAL-VITON,TRIPLE LIP
-
83233832 GEAR-SECTOR,31T-CUT TO 11TGEAR-SECTOR,31T-CUT TO 11T
-
93233711 PLUG,OIL FILLPLUG,OIL FILL
-
103233524 TUBE,VENTTUBE,VENT
-
113233018 BEARINGBEARING
-
123233036 CHAIN,SILENT,34PCHAIN,SILENT,34P
-
133233889 SUBASM-INPUT SHAFTSUBASM-INPUT SHAFT
-
143233019 BEARINGBEARING
-
153233529 PIPE,KNOCKPIPE,KNOCK
-
163233865 COVER-MAIN, LEFT HANDCOVER-MAIN, LEFT HAND
-
173233866 SEAL-VITON,DUAL LIPSEAL-VITON,DUAL LIP
-
183234042 SCREW (IF BUILT AFTER 07/08/02)SCREW (IF BUILT AFTER 07/08/02)
-
193234044 BRACKET (IF BUILT AFTER 07/08/02)BRACKET (IF BUILT AFTER 07/08/02)
-
203234045 SPACER (IF BUILT AFTER 07/08/02)SPACER (IF BUILT AFTER 07/08/02)
-
213234043 NUT (IF BUILT AFTER 07/08/02)NUT (IF BUILT AFTER 07/08/02)
-
223233841 DRUM-SHIFTDRUM-SHIFT
-
233233858 SUB ASM-SHIFT FORK,W/PINSUB ASM-SHIFT FORK,W/PIN
-
243233859 PIN-DOWELPIN-DOWEL
-
253233860 RAIL-SHIFT SHAFT,C VERSIONRAIL-SHIFT SHAFT,C VERSION
-
263233875 DOG-ENGAGEMENT,6 FACEDOG-ENGAGEMENT,6 FACE
-
273233849 SPRING-WAVESPRING-WAVE
-
283233850 RING-RETAININGRING-RETAINING
-
293233851 WASHERWASHER
-
303233852 GEAR-33T,6 FACE ENGAGEMENTGEAR-33T,6 FACE ENGAGEMENT
-
313233718 BEARING,NDL,SPLIT CAGEBEARING,NDL,SPLIT CAGE
-
323233892 SHAFT-REVERSESHAFT-REVERSE
-
333233103 BEARING, NEEDLEBEARING, NEEDLE
-
343233893 SPROCKET-24T,6 FACESPROCKET-24T,6 FACE
-
353233894 WASHERWASHER
-
363233855 WASHERWASHER
-
373233856 GEAR-30T,6 FACEGEAR-30T,6 FACE
-
383233857 GEAR-37T,HELICALGEAR-37T,HELICAL
-
393233847 GEAR-HELICAL,47TGEAR-HELICAL,47T
-
403233608 SCREWSCREW
-
413233609 COVER,BEARINGCOVER,BEARING
-
423233106 RING, SNAPRING, SNAP
-
433233357 SPACERSPACER
-
443233607 BEARING,BALLBEARING,BALL
-
453233606 SHAFT,10TSHAFT,10T
-
463233619 WASHER,THRUSTWASHER,THRUST
-
473233843 SPROCKET-19TSPROCKET-19T
-
483233621 GEAR,SPIRAL BEVEL 31TGEAR,SPIRAL BEVEL 31T
-
493233911 SHAFT-OUTPUT,MAIN,REARSHAFT-OUTPUT,MAIN,REAR
-
503233582 BUTTON,THRUSTBUTTON,THRUST
-
513233583 SHIM .450 X .265SHIM .450 X .265
-
523233611 SHIMSHIM
-
533233845 COVERCOVER
-
543233846 SCREW-ROLL FORMINGSCREW-ROLL FORMING
-
543233846 SCREW-ROLL FORMING (IF BUILT AFTER 07/08/02)SCREW-ROLL FORMING (IF BUILT AFTER 07/08/02)
-
553233777 PLUG-HEX FLANGEPLUG-HEX FLANGE
-
563233254 WASHER,PLUGWASHER,PLUG
-
573233625 SHAFT,FRONT OUTPUTSHAFT,FRONT OUTPUT
-
583233408 CHAIN,SILENT,40P,11WCHAIN,SILENT,40P,11W
-
593233783 SPROCKET-22T/22T SPLINESPROCKET-22T/22T SPLINE
-
603233552 BUSHING,GARLOCKBUSHING,GARLOCK
-
613233833 GEARCASE-MAIN (IF BUILT BEFORE 07/08/02)GEARCASE-MAIN (IF BUILT BEFORE 07/08/02)
-
613234046 GEARCASE-MAIN (IF BUILT AFTER 07/08/02)GEARCASE-MAIN (IF BUILT AFTER 07/08/02)
-
623233324 WASHERWASHER
-
633233840 O-RINGO-RING
-
643233839 GEAR-SECTOR,16TGEAR-SECTOR,16T
-
653233838 DISC-LOCKOUTDISC-LOCKOUT
-
663233837 DETENT-STARDETENT-STAR
-
673233836 O-RINGO-RING
-
683233830 SPRING-COMPRESSIONSPRING-COMPRESSION
-
693233835 SWITCH-ROTARY,6 PINSWITCH-ROTARY,6 PIN
-
703233834 RING-RETAININGRING-RETAINING
-
713233825 BELLCRANK-HLNRPBELLCRANK-HLNRP
-
721341426 ASM GEARCASE,MAIN,6X6 (IF BUILT BEFORE 07/08/02)ASM GEARCASE,MAIN,6X6 (IF BUILT BEFORE 07/08/02)
-
721341465 ASM GEARCASE,MAIN,6X6 (IF BUILT AFTER 07/08/02)ASM GEARCASE,MAIN,6X6 (IF BUILT AFTER 07/08/02)
