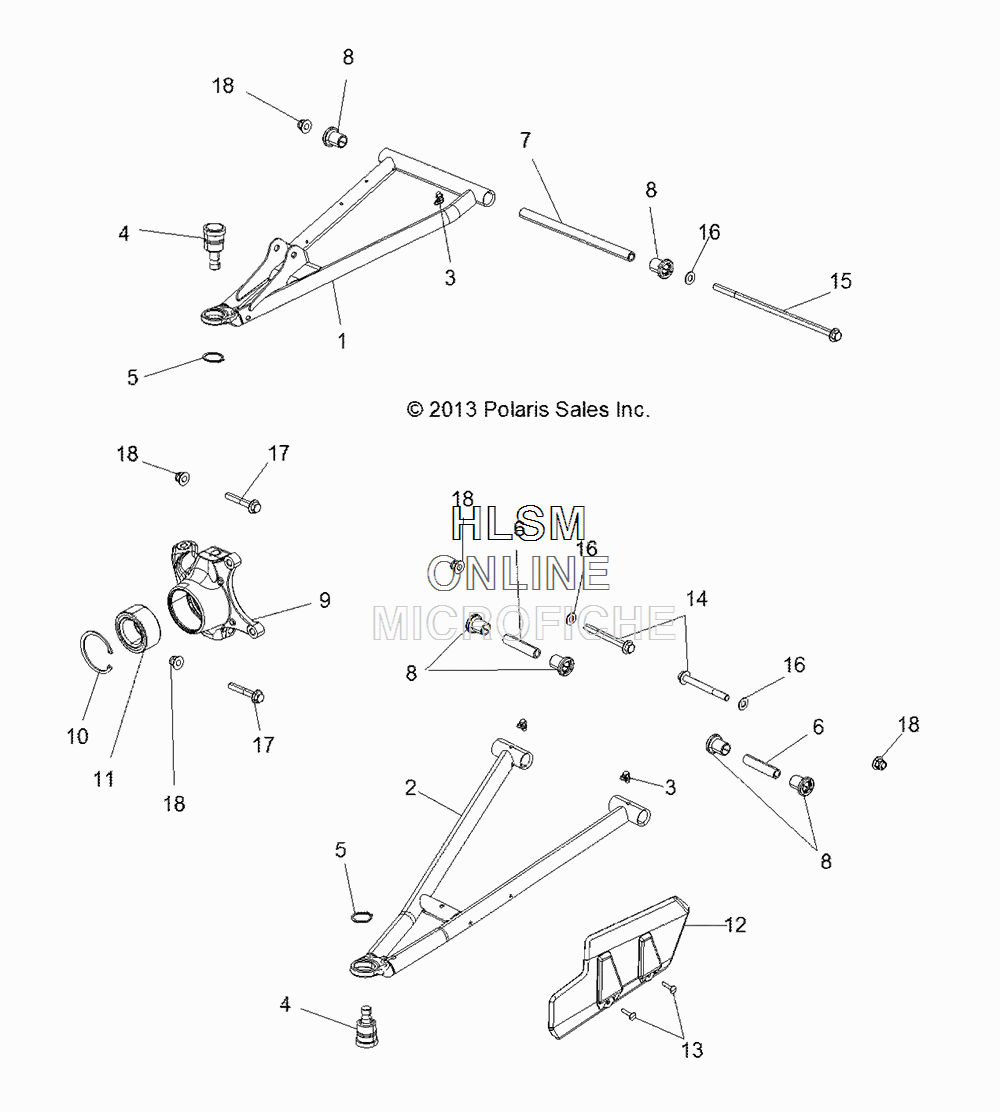

CONTROL ARMS - FRONT для Polaris RANGER HST (R02) - [R17B1PD1AA] - 2017 года выпуска
-
№АртикулНазвание
-
11020887-458 A-ARM, FRONT, UPPER, LEFT, (MATTE BLACK)A-ARM, FRONT, UPPER, LEFT, (MATTE BLACK)
-
11020888-458 A-ARM, FRONT, UPPER, RIGHT, (MATTE BLACK)A-ARM, FRONT, UPPER, RIGHT, (MATTE BLACK)
-
21019365-458 A-ARM, FRONT, LOWER, LEFT, (MATTE BLACK)A-ARM, FRONT, LOWER, LEFT, (MATTE BLACK)
-
21019366-458 A-ARM, FRONT, LOWER, RIGHT, (MATTE BLACK)A-ARM, FRONT, LOWER, RIGHT, (MATTE BLACK)
-
37080510 FITTING, ZERKFITTING, ZERK
-
47081924 JOINT, BALLJOINT, BALL
-
57710533 RING, RETAINER, EXTERNALRING, RETAINER, EXTERNAL
-
65138797 SHAFT, PIVOTSHAFT, PIVOT
-
75138791 SHAFT, PIVOTSHAFT, PIVOT
-
85439874 BUSHING, STANDARDBUSHING, STANDARD
-
95139976 CARRIER, BEARING, FRONT, LEFTCARRIER, BEARING, FRONT, LEFT
-
95139977 CARRIER, BEARING, FRONT, RIGHTCARRIER, BEARING, FRONT, RIGHT
-
107710780 RING, RETAINING, INTERNALRING, RETAINING, INTERNAL
-
113514699 BEARING, BALL, SEALEDBEARING, BALL, SEALED
-
125437544-070 SHIELD, CV, FRONT, LEFT, (BLACK)SHIELD, CV, FRONT, LEFT, (BLACK)
-
125437545-070 SHIELD, CV, FRONT, RIGHT, (BLACK)SHIELD, CV, FRONT, RIGHT, (BLACK)
-
137621472 RIVETRIVET
-
147519043 SCREWSCREW
-
157519087 SCREWSCREW
-
167556153 WASHERWASHER
-
177519306 SCREWSCREW
-
187547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
